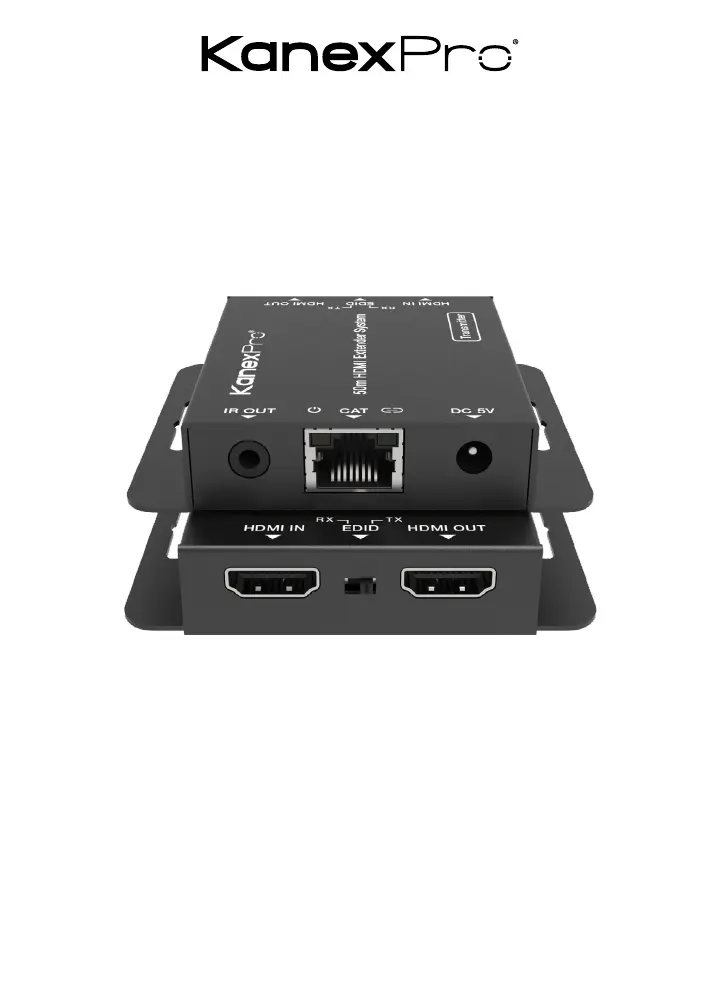

HDMI Extender over
CAT5/6 up to 164ft. (50m)
MPN: EXT-HD50C
VER 1.0
All brand names and trademarks are properties of their respective owners
2 3
Thank you for purchasing this product
For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lighting strikes,
etc. Use of surge protection systems is highly recommended in order to
protect and extend the life of your equipment.
Table of Contents
1. Introduction. 2
2. Features. 3
3. Package Contents. 3
4. Specifications. 4
5. Operation Controls and Functions. 5
5.1 Transmitter Panel. 5
5.2 Receiver Panel. 7
5.3 IR Pin Definition 7
6. Application Example. 7
1. Introduction
This KanexPro HDMI Extender system (EXT-HD50C) can extend high
definition video/audio signal and IR control signals up to 230ft/70m
for 1080p resolution, and 131ft/40m for 4K30 resolution via a single
CAT6 cable. The system is capable of zero-latency, uncompressed
long-distance transmissions between the transmitter and receiver units.
This extender features an HDMI loop output which can be cascaded to
another pair of extenders, supporting resolution up to 4K@30Hz. The
system supports EDID copy function (you can choose local or remote
EDID). It supports audio formats up to PCM7.1, Dolby True HD, DTS HD.
This product can be widely used in multi- media conference halls, TV
teaching and large-screen displays.
2. FEATURES:
• HDMI 1.4 and HDCP 1.4 compliant
• Support video resolution up to 4K@30Hz
• The maximum transmission distance via a single CAT6/5E
• cable is as follows:
• CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 CAT5E: 197ft/60m
for 1080p, 115ft/35m for 4K30
• Support copying EDID from receiver display or loop out display
• Allow for cascading via additional HDMI loop out port
• Compact design for easy and flexible installation
3. PACKAGE CONTENTS:
• 1x HDMI Transmitter
• 1x HDMI Receiver
• 1x IR Blaster Cable
• 1x IR Receiver Cable
• 2x 5V/1A DC Power Adapter
• 1x User Manual
4 5
5. Operation Controls and Functions:

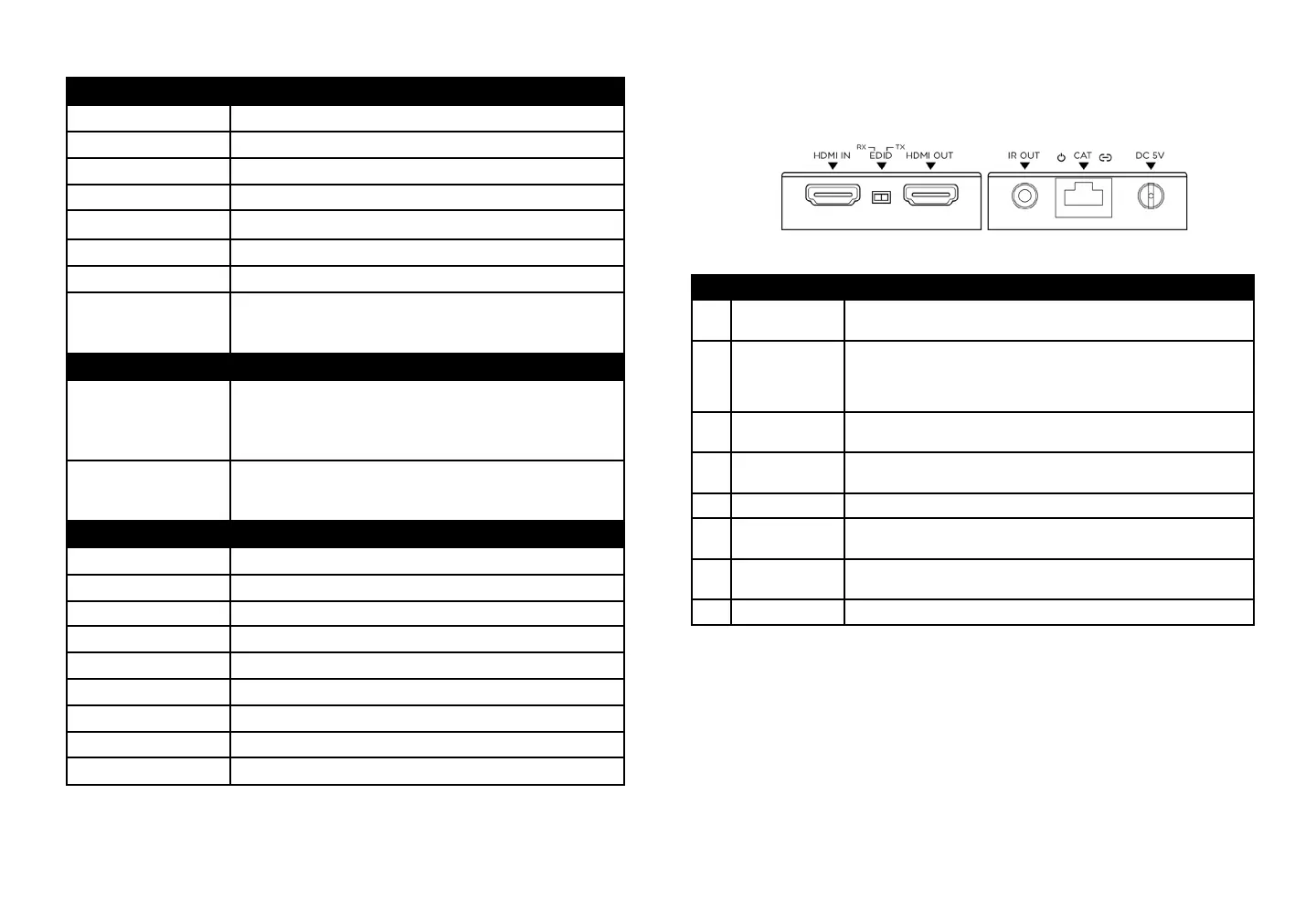

5.1 Transmitter Panel
No. Name Function Description
1
HDMI IN HDMI signal input port. Connect to HDMI source device such
as DVD or Set-top box.
2
EDID DIP
Switch
The switch is used for selecting EDID: Switch to the right
position, the extender will copy HDMI loop out display EDID
information to signal source; Switch to the left position, the
extender will copy Receiver display EDID to signal source.
3
HDMI OUT HDMI signal loop out port. Connect to HDMI display device
such as HDTV.
4
IR OUT Connect to IR blaster cable, the IR signal is
from the IR IN port of the receiver.
5
Power LED When the transmitter is powered on, the LED will be on.
6
CAT CAT output port. Connect to the CAT input
port of the receiver with CAT5E/6 cable.
7
Link LED When the transmitter is connected to HDMI source, the LED
will be on.
8
DC 5V DC 5V power supply port.
4. SPECIFICATIONS:
Technical
HDMI Compliance HDMI 1.4
HDCP Compliance HDCP 1.4
Video Bandwidth 10.2Gbps
Video Resolution Up to 4K@30Hz
Audio Support Up to 7.1CH HD audio
Input TMDS Signal 3.3 volts
Input DDC Signal 5.0 volts/P-P
ESD Protection Human body model:
+/- 8KV (Air-gap discharge)
+/- 4KV (Contact discharge)
Connection
Transmitter Input: 1 x HDMI Type A [19-pin female]
Outputs: 1 x HDMI Type A [19-pin female]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x CAT OUT [RJ45, 8-pin female]
Reciever Inputs: 1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI Type A [19-pin female]
Mechanical
Housing Metal Enclosure
Silkscreen Color Black
Dimensions 79.5mm (W) x 69mm (D) x 16.5mm (H)
Weight Transmitter: 132g Receiver:130g
Power Supply 5V/1A DC
Power Consumption Transmitter: 1.86W, Reciever: 0.87W
Operation Temperature 32 ~ 104°C / 0 ~ 40°F
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20~90% RH (non-condensing)
