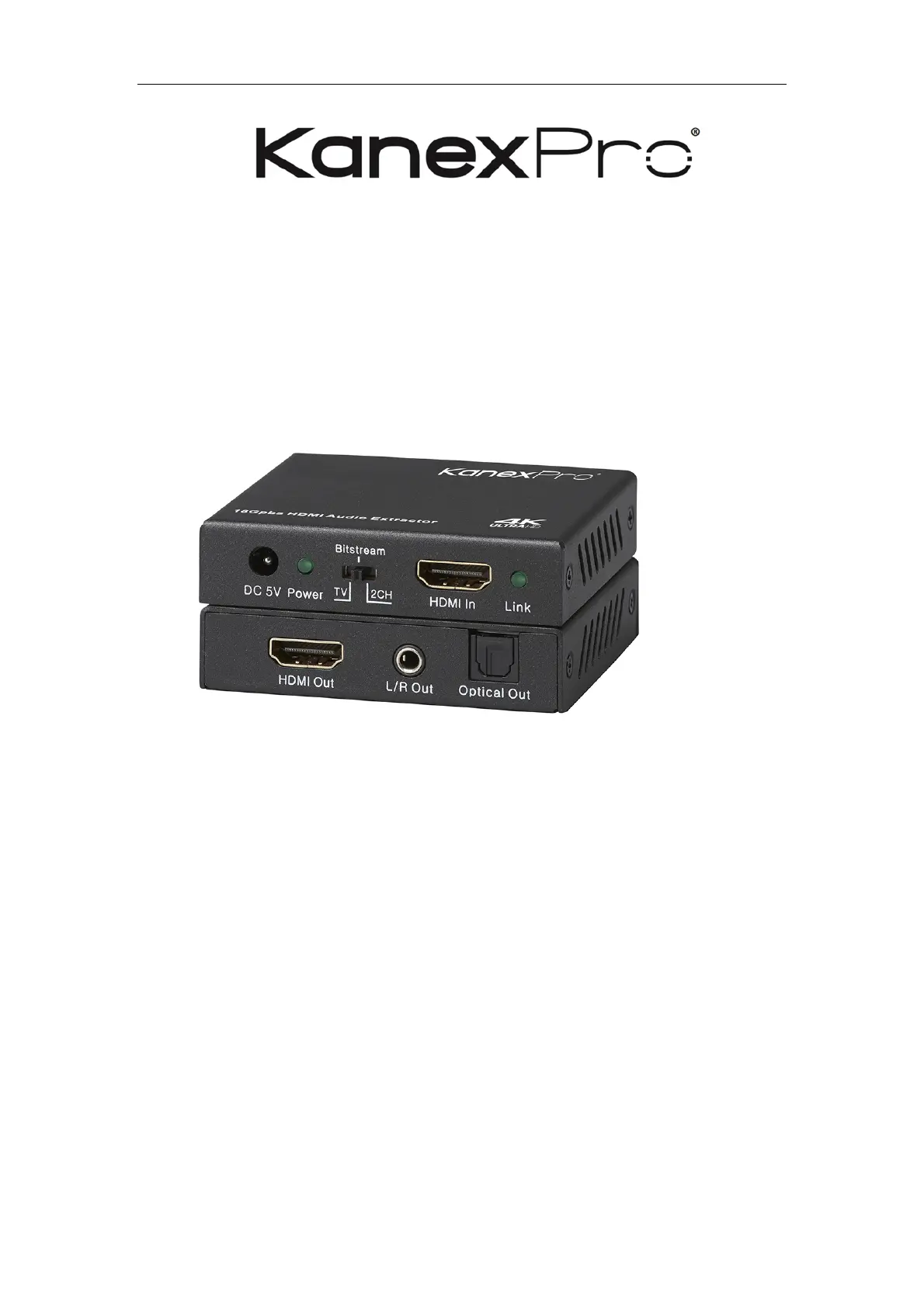

KANEXPRO HAECOAX3

1 7/

HAECOAX3

HAECOAX3 HAECOAX3

USER MANUAL

USER MANUAL USER MANUAL

18Gbps 4K HDMI® Audio Extractor

18Gbps 4K HDMI® Audio Extractor 18Gbps 4K HDMI® Audio Extractor

with Dolby Atmos®

with Dolby Atmos®with Dolby Atmos®

KANEXPRO HAECOAX3

2 7/

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully before connecting,

operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes,

surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended

to protect and extend the life of your equipment.

Table of Contents

1.!Introduction ............................................................................................................................ 2!

2.!Features ................................................................................................................................... 3!

3.!Package Contents ............................................................................................................... 3!

4.!Specifications ........................................................................................................................ 3!

5.!Operation Controls and Functions .................................................................................. 5!

5.1!Front Panel ......................................................................................................................... 5!

5.2!Rear Panel .......................................................................................................................... 5!

6.!Connection Diagram .......................................................................................................... 6!

1. Introduction

The KanexPro HAECOAX3 is our 3rd gen. audio extractor designed with 18 Gbps of high

bandwidth and supporting the latest HDMI 2.0 specifications. This audio extractor will de-embed

KANEXPRO HAECOAX3

3 7/

HDMI audio streams from any HDMI based device to digital or analog stereo maintaining 4K/60

video resolutions with YUV 4:4:4 color space and pass-thru for 10 bit HDR (High Dynamic Range).

Audio formats include LCPM 2-channel stereo, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos

and DTS-HD Master audio with audio sampling rate up to 192kHz.

2. Features

1) 4K/60 HDMI Audio Extractor with Dolby Atmos®

2) Select your bit- stream audio by switching instantly

3) 18 Gbps bandwidth with latest HDMI 2.0 Specs

4) Supports HDMI® HBR (High Bit Rate) audio pass- through

5) Supports HDR 10(High Dynamic Range) pass- through for wide color gamut

6) Supports video resolutions up to 4K@24/30/50/60Hz (YUV4:4:4) & 1080p HD

7) De- -embeds audio to multi channel digital via TOSLINK / SPDIF or analog

8) HDCP 2.2 compliant

9) pass through CEC-

10) HDMI audio output: PCM 2, 5.1, 7.1, Dolby 5.1, DTS 5.1, D HD- -TrueHD & DTS

11) Supports uncompressed audio such as LPCM

12) Converts 2CH from 24-bit up to 192 kHz audio

13) Automatic input cable equalization

3. Package Contents

• 1 x HDMI 18Gbps Audio Extractor

• 1 x 5 1A V/ Power Adaptor

• 1 x User Manual

4. Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18 Gbps

Video Resolutions

up to 4K2K@50/60Hz( 4:YUV 4:4),4K2K@30Hz,1080P@120Hz,

and 1080P 3D@60Hz

Termékspecifikációk

Márka:	KanexPro
Kategória:	audio/videó-konverter
Modell:	HAECOAX
Termék színe:	Fekete
Beépített kártyaolvasó:	Nincs
Áramfogyasztás (tipikus):	2 W
HDMI bekapcsolása:	1
HDMI kimenetek száma:	1
Üzemi feszültség:	5 V
Külső áramszolgáltató:	Igen
S/PDIF kimeneti port:	Igen
Audió lejátszási formátumok:	AC3, LPCM
