Használati útmutató KanexPro SW-HD5X14K
Olvassa el alább 📖 a magyar nyelvű használati útmutatót KanexPro SW-HD5X14K (9 oldal) a router kategóriában. Ezt az útmutatót 12 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra
Oldal 1/9

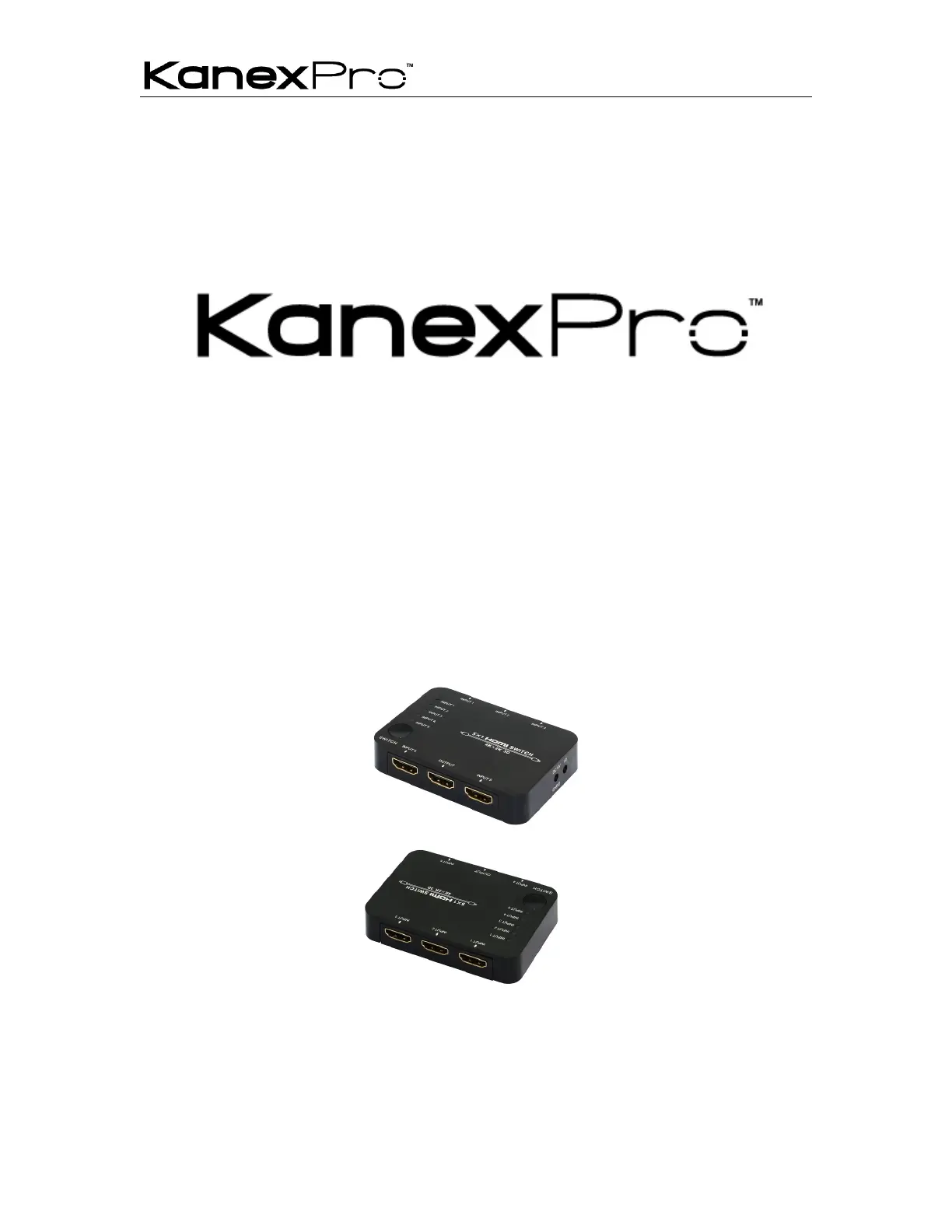

! ! !SW- 5X14KHD
!
!!
!
!
!
!
!
!
!
!
SW- HD5X14K
5 x1 HDMI Switcher with 4K Support
!
!
!
! ! !SW- 5X14KHD
!
!
!
!
!
!
!
Table of Contents
!
1. Introduction .................................................................................................................................. 1
1.1. Introduction to SW- 5 HD X14K...................................................................................... 1
1.2. Features ...................................................................................................................... 1
1.3. Package Contents ....................................................................................................... 1
1.4. Specifications .............................................................................................................. 2
1.5. 5X1 Switch Operation controls and functions .............................................................. 3
1.6. Application Example .................................................................................................... 5
1.7. Remote Control Functions ........................................................................................... 6
2. Warranty ...................................................................................................................................... 7
!
!
!
!
!
!
!
!
! ! !SW- 5X14KHD
!
!
1!
!
!
1. Introduction
1.1. - Introduction to SW HD5X14K
The KanexPro 5x1 HDMI Switcher is a compact five input to one output switch providing 4K
ultra-HD resolutions. It is a nippy switcher designed to connect five HDMI sources such as
Apple TV, Blu-ray, PS4 or Xbox one to your 4K, HDTV or a projector. Perfect for home
theater and pro-sumers looking to connect HDMI based devices to an Ultra- HDTV.
1.2. Features
! Rapidly switch between 5 inputs to one output
! Supports resolutions up to 4K@30Hz
! Full HD 1080p & 1920x1200
! HDCP and EDID Compliant
! Supports all 3D formats
! -Ultra low power consumption, does not require a power supply
! Switch using a manual button or included IR remote
! Supports High Speed HDMI Specifications - (Deep color, HD lossless audio formats
& Lip Sync)
! Audio support: Dolby TrueHD, DTS-HD Master Audio 7.1ch
! Supports uncompressed audio such as LPCM and compressed audio such as DTS
Digital, Dolby Digital (including DTS HD and Dolby True HD)-
! -Front panel LED’s for input/ output signal presence
! Ultra compact design
! 5VDC external power supply included
! IR / Remote control included
1.3. Package Contents
! HDMI 1.4 5x1 Switcher
! 5V USB to DC Power Supply cable
! Remote control
! IR Receive Extend cable
! Operation Manual
Termékspecifikációk
| Márka: | KanexPro |
| Kategória: | router |
| Modell: | SW-HD5X14K |
