Oldal 1/18
Installation manualRefrigeration
IK008 Integration kit
WTB4600, KTM4602, WTB5400, KTM5402,
WBE4500, KBM4502,
WBE5300, KBM5302,
WFB4204, WRB5004
2 electrolux.com.au
CONGRATULATIONS
Congratulations and thank you for choosing our integration
kit. Before you install the integration kit, we recommend
that you read through the entire installation manual.
To avoid the risks that are always present when you install
an electrical appliance, it is important that the integration
kit and appliance are installed correctly. Please read the
safety instructions in this installation manual as well as the
appliance’s user manual to carefully to avoid misuse
and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the integration kit, please check it is not
damaged. If in doubt, do not use the integration kit but
contact your local Electrolux Customer Care Centre.
BEFORE YOU CALL
Please ensure you read the instruction manual fully before
you call for service, or a full service fee could be applicable.
INFORMATION ON DISPOSAL
FOR USERS
ENVIRONMENT!
• Most of the packaging materials are
recyclable. Please dispose of these materials
through your local recycling depot or by
placing them in appropriate collection
containers.
• If you wish to discard this product, please
contact your local authorities and ask for the
correct method of disposal.
CONTENTS
General warnings ....................................................2
Refrigerator integration kit items ..............................3
Cupboard dimensions ..............................................4
Installation of 120˚ hinge ..........................................7
Preparation ...............................................................7
Attaching the rear rollers ..........................................8
Attaching top hinge bracket .....................................9
Attaching slide-housing to refrigerator doors.........10
Placing refrigerator in cupboard ............................. 11
Refrigerator alignment ............................................12
Securing refrigerator in cupboard ..........................13
Attaching slide-bar to cupboard door ....................13
Notes ......................................................................15
GENERAL WARNINGS
Please read the user manual carefully and store in a handy
place for later reference. Pass the user manual on to
possible new owners of the appliance.
NOTE: We strongly recommend that a professional
builder/cabinet maker builds this unit into required
cabinetry prior to finished installation in customer’s
kitchen. Electrolux cannot take responsibility for
any installation issues when customer retrofits
this product into cabinetry. Cabinet door height
built in excess of refrigerator door height will be
unsupported and risk bowing.
NOTE: Please refer to your Appliance User Manual for
warnings relating to the appliance.
SYMBOLS
WARNING!
This symbol indicates information concerning your
personal safety
CAUTION!
This symbol indicates information on how to avoid
damaging the refrigerator
IMPORTANT!
This symbol indicates tips and information about
use of the refrigerator
ENVIRONMENT!
This symbol indicates tips and information about
economical and ecological use of the refrigerator
3

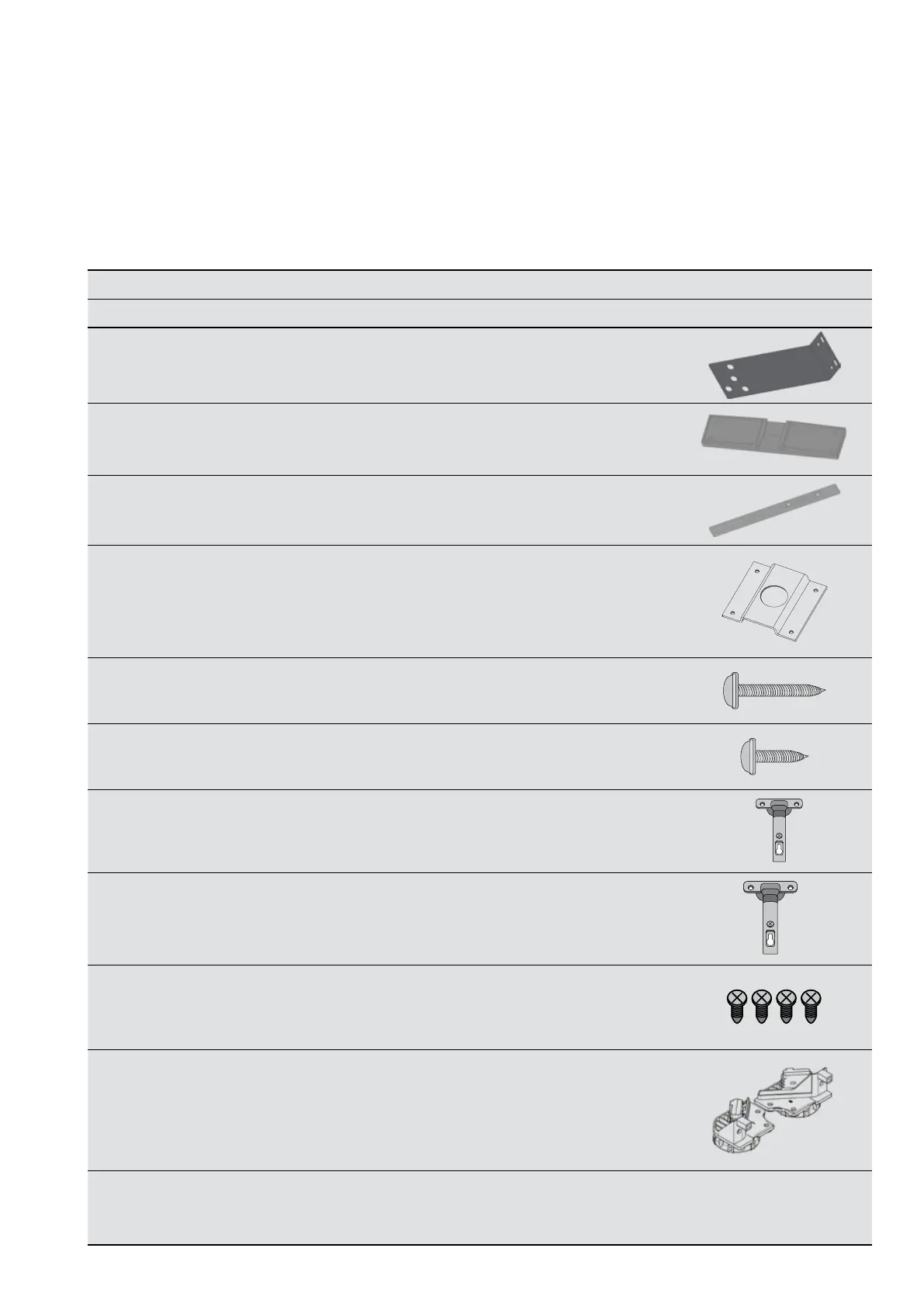

Item Quantity in kit Quantity required Description
Two door model Single door model
Top hinge bracket
PNº A02986001
1 1 1
Slide-housing
PNº A04098601
2 2 1
Slide-bar
PNº A04098501
2 2 1
Location bracket
front footing
PNº A02986101
(Top Freezer
models only)
2 2 2
Refrigerator screws
PNº A04120701
(741249)
8 8 4
Cupboard screws
PNº A04120801
(1449422)
12 12 8
120º hinge
PNº A04120901
(1457832)
5 5 (3+2) 3
Mounting plate
for hinge
PNº A04121001
(14 58211)
5 5 (3+2) 3
Self tapping
wood screws
PN º A 0 4121101
(1458212)
20 20 12
Service Kit Rear
Rollers
PNº A04078201
1 1 1
Installation
Instruction Sheet
PNº A04633101
1 1 1
DESCRIPTION
REFRIGERATOR INTEGRATION KIT ITEMS
Because this kit is common to a variety of models, you need to select the items required to suit your model. The items
required for the models covered in this instruction booklet are shown below.
Those items not required on your particular model should be discarded.
