Oldal 1/2

5659 Royalmount Ave.
Montreal, QC, Canada H4P 2P9
Telephone: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com / mvpgroupcorp.com
12000 Biscayne Blvd., Suite # 108
Miami, FL, United States 33181
Telephone: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100

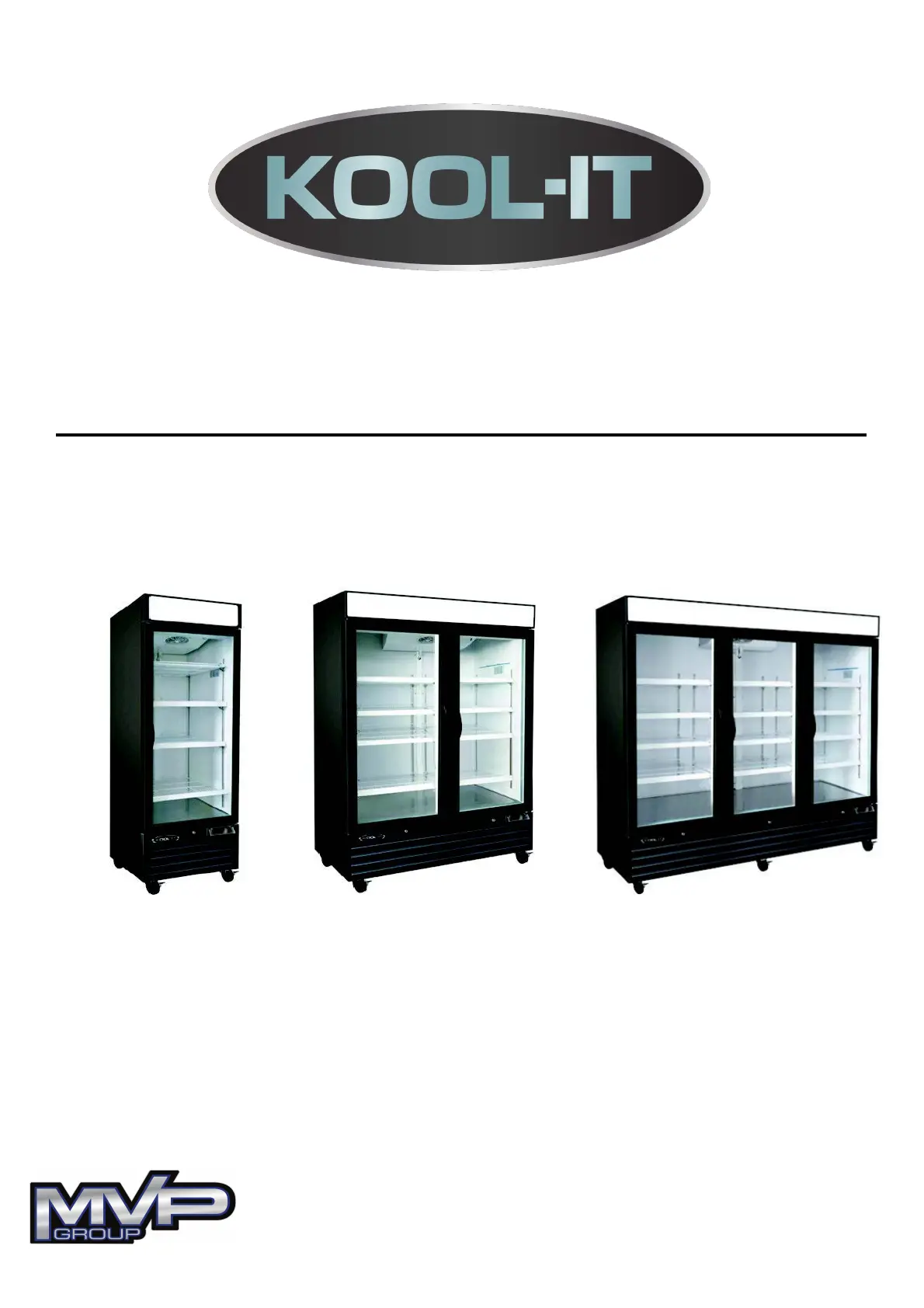

Glass Door Freezer s
S D Swing oor eries
KGF-23 | KGF-48 | KGF-72DV
Durable Design
Energy Ecient
Project Name:
Location:
Item:
Model:
Qty:
06-2019
• Modern & attractive appearance for any kitchen,
C-Store, service station, etc.
• Black exterior baked enamel steel nish
• White interior baked enamel steel nish
• Interior base in stainless steel nish
• Heavy-duty polyethylene coated adjustable wire
shelves(four shelves per door)
• Locking glass doors are ergonomically designed and self-closing
with easy grab handles
• Plastic upper sign panel with light
• 2-1/2" casters
• Entire cabinet structure engineered to the highest standards
• Built using foamed in place high density CFC-free
polyurethane insulation
• Unique triple pane heated glass doors with a layer of patented,
transparent thermal insulating film applied between the glass layers
• Environmentally friendly R-290 refrigerant
• Positive air flow throughout with forced air movement
throughout entire cabinet
• Freezers hold -10°F. for optimum storage & preservation of foods
• High efficiency evaporators with oversized condensing units
on all models
• Digital temperature readout display with electronic thermostatic
control
• LED interior lighting for total product display
Superior Quality
Nema 5-15P Nema L14-20P
Nema5-20P

5659 Royalmount Ave.
Montreal, QC, Canada H4P 2P9
Telephone: 514.737.9701 / Toll Free: 888.275.4538
Fax: 514.342.3854 / Toll Free: 877.453.8832
sales@mvpgroupcorp.com / mvpgroupcorp.com
12000 Biscayne Blvd., Suite # 108
Miami, FL, United States 33181
Telephone: 786.600.4687 / Toll Free: 844.218.8477
Fax: 786.661.4100
These units are designed for maximum
performance in an air-conditioned area of 75°F
ambient temperature and 55% relative humidity.
There must be adequate ventilation at the top,
sides & rear of the unit for proper operation.
Warranty: months parts and labor. Additional 24
36 months on compressor (part only)
KOOL-IT is a registered trademark of MVP Group.
Specifications subject to change without notice.
Dedicated Circuit
Nema 5-15P
06-2019
Glass Door Freezers
Swing Door Series
KGF-23 | KGF-48 | KGF-72DV
KGF-23 KGF-48 KGF-72DV
MODEL
NUMBER
EXTERNAL DIMS
(IN) W x D x H
INTERNAL DIMS
(IN) W x D x H
VOLTAGE /
FREQUENCY STORAGE AMPS COMPRESSOR
SIZE (HP)
NET
WEIGHT
(LBS)
GROSS
WEIGHT
(LBS)
SHIPPING DIMS
(IN) W x D x H
KGF-23 26.8" x 33.5 x 80.1" 2.3 x 27.8" x 52.7"” 2 ” 19.2 8.0 1/2 302 353 28.3" x 34.8" x 84.6"
KGF-48 53.9" x 33.5" x 80.1" 49.4" x 27.8" x 52.7" 48 9.0 477 567 55.5" x 34.8" x 84.6"
KGF-72DV 81.0" x 33.5" x 80.1" 76.4" x 27.8" x 52.7" 72 9.0 1-1/4 706 829 82.6" x 34.8" x 84.6"
115/60 Hz / 1 5-15
115/60 Hz / 1 5-20
115/208-
230/60 Hz / 1
L14-20
NEMA
PLUG
1
Nema L14-20P
Nema5-20P
