TECHNICAL DATA
Hardware
Power supply External power supply 2x 12 –36 V
Max. power consumption 40 W
Operating environment Temperature range -20–70 °C; humidity 5–90 %, non-condensing
Housing Robust metal housing with mounting accessories for control cabinet mounting;
Network connections on the front side
Fans None
Dimensions (mm) 68.4 x 130 x 150 (W x H x D)
Interfaces
ETH 5x 10 / 100 / 1000 Mbps Gigabit Ethernet ports
SFP 2x SFP ports
USB 2x USB 3.0 ports
Console 1x RJ45 configuration interface
Power supply 1x 4-pin terminal block connector for connecting the power supply
GPIO 1x 5-pin terminal block connector
Declaration of Conformity
Hereby, LANCOM Systems GmbH | Adenauerstrasse 20/B2 | D-52146 Wuerselen, declares that this device is in
compliance with Directives 2014/30/EU, 2014/35/EU, 2011/65/EU, and Regulation (EC) No. 1907/2006. The full text of
the EU Declaration of Conformity is available at the following Internet address: www.lancom-systems.com/doc
Package contents
Documentation Quick Reference Guide (DE/EN), Quick Install Guide (DE/EN), Service & Support Guide (DE/
EN)
Accessories DIN rail mounting accessories

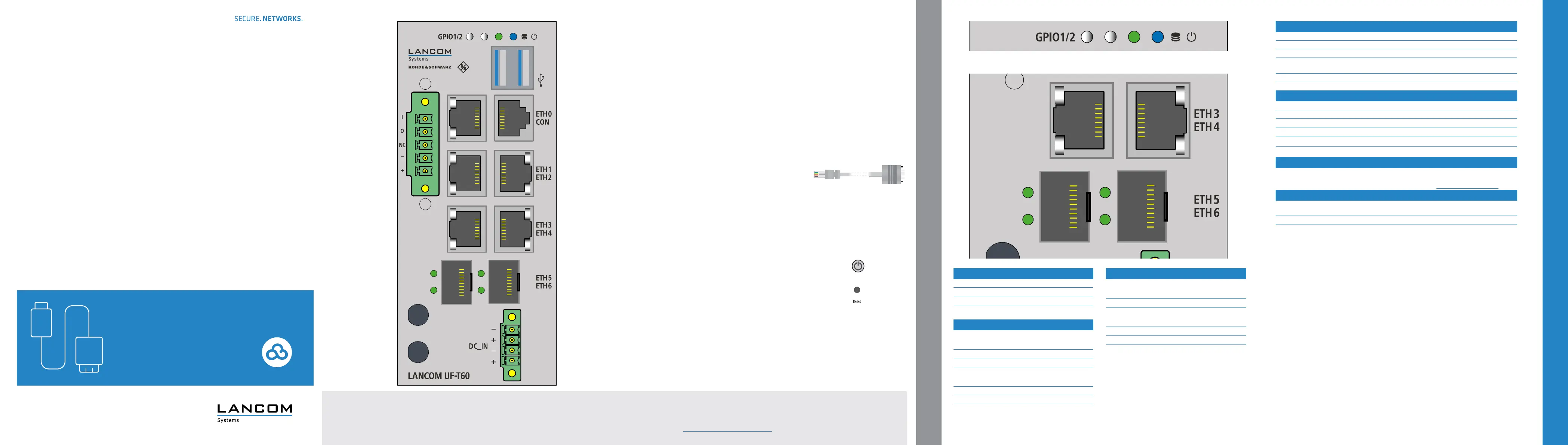

MOUNTING AND CONNECTING THE DEVICE
LANCOM R&S®UF-T60
Quick Reference Guide
Cloud-ready
LANCOM, LANCOM Systems, LCOS, LANcommunity and Hyper Integration are registered trademarks. All other names or descriptions used may be trademarks or registered trademarks of their owners. This document
contains statements relating to future products and their attributes. LANCOM Systems reserves the right to change these without notice. No liability for technical errors and / or omissions. 111998/07/21
4
Please observe the following when setting up the device
A The mains plug of the device must be freely accessible.
A Do not rest any objects on top of the device and do not stack multiple devices.
A Keep the device’s ventilation slots clear of obstruction.
A Mount the device in a free slot of an appropriate control cabinet using the enclosed DIN rail mounting
material.
Before initial startup, please make sure to take notice of the information regarding the intended use under www.lancom-systems.com/safety!
Operate the device only with a professionally installed power supply at a nearby power socket that is freely accessible at all times.
a b LEDs HDD / Power
HDD off No HDD read / write access
HDD green HDD read / write access
POWER off Device switched off
POWER blue Device ready and accessible
e f LEDs ETH5 - ETH6 - SFP
e LEDs - Link detection
Off No link detected
Green, permanently Link detected
f LEDs - Link activity
Off no link detected
Green, permanently Link detected, no port activity
Green, blinking Link detected, port activity
c d LEDs ETH0 - ETH4 - TP Ethernet
c LEDs - Link speed
Off Link speed 10 Mbps
Green, permanently LinkSpeed 1000 Mbps
Orange, permanently Link speed 100 Mbps
d LEDs - Link activity
Off no link detected
Green, permanently Link detected, no port activity
Green, blinking Link detected, port activity
a
5-pin GPIO terminal block connector (TTL level)
For connecting DIO_PWR, DIO_GND, GPO0, and GPI0
b
USB 3.0 interfaces
Interfaces for reinstallation of the device software.
Not necessary for initial commissioning.
c
TP Ethernet interfaces ETH0 - ETH4
Connect the ETH0 - ETH4 TP Ethernet interfaces to additional
network components using suitable Ethernet cables.
d
Serial configuration interface RJ45 (CON)
Maintenance interface for expert configuration.
Not necessary for initial commissioning.
e
SFP interfaces ETH5 - ETH6
Connect the ETH5 - ETH6 SFP interfaces to other network
components using suitable SFP modules.
f
4-pin terminal block connector
For connecting the power supply 2x 12 – 36 V (SELV / PELV)
g
Power button (device top)
Press the power button to start up the device.
To power off the device, press the power button for 5 seconds.
h
Reset button (device top)
Short press - device restart
a
b
c d
c
e
f
a
b
e
c
d
c
d
f
e
f
