// LCT 940
QUICKSTART GUIDE
TUBE // FET
AND EVERYTHING IN BETWEEN
LARGE DIAPHRAGM FET AND TUBE MICROPHONE
IN A SINGLE HOUSING
// Overview
// Large diaphragm condenser Tube & FET microphone
in a single housing
// Continuously blend between tube and FET sound via rotating
potentiometer
// Multi-pattern microphone: cardioid, omnidirectional, gure-8,
wide cardioid, supercardioid and four intermediate patterns
// Noiseless pushbuttons for quick and easy attenuation and
low-cut lter selection
// 4 low-cut settings: linear, 40 Hz (12 dB/oct), 150 Hz (6 dB/oct)
and 300 Hz (6 dB/oct)
// 4 pre-attenuation settings: 0 dB, -6 dB, -12 dB and -18 dB
// High dynamic range and low self-noise
// Custom power supply unit with illuminated user interface for easy
handling - even in dark environments
// Gold plated & corrosion-resistant 11-pin XLR socket
Top applications // Vocals, acoustic instruments
and wind instruments

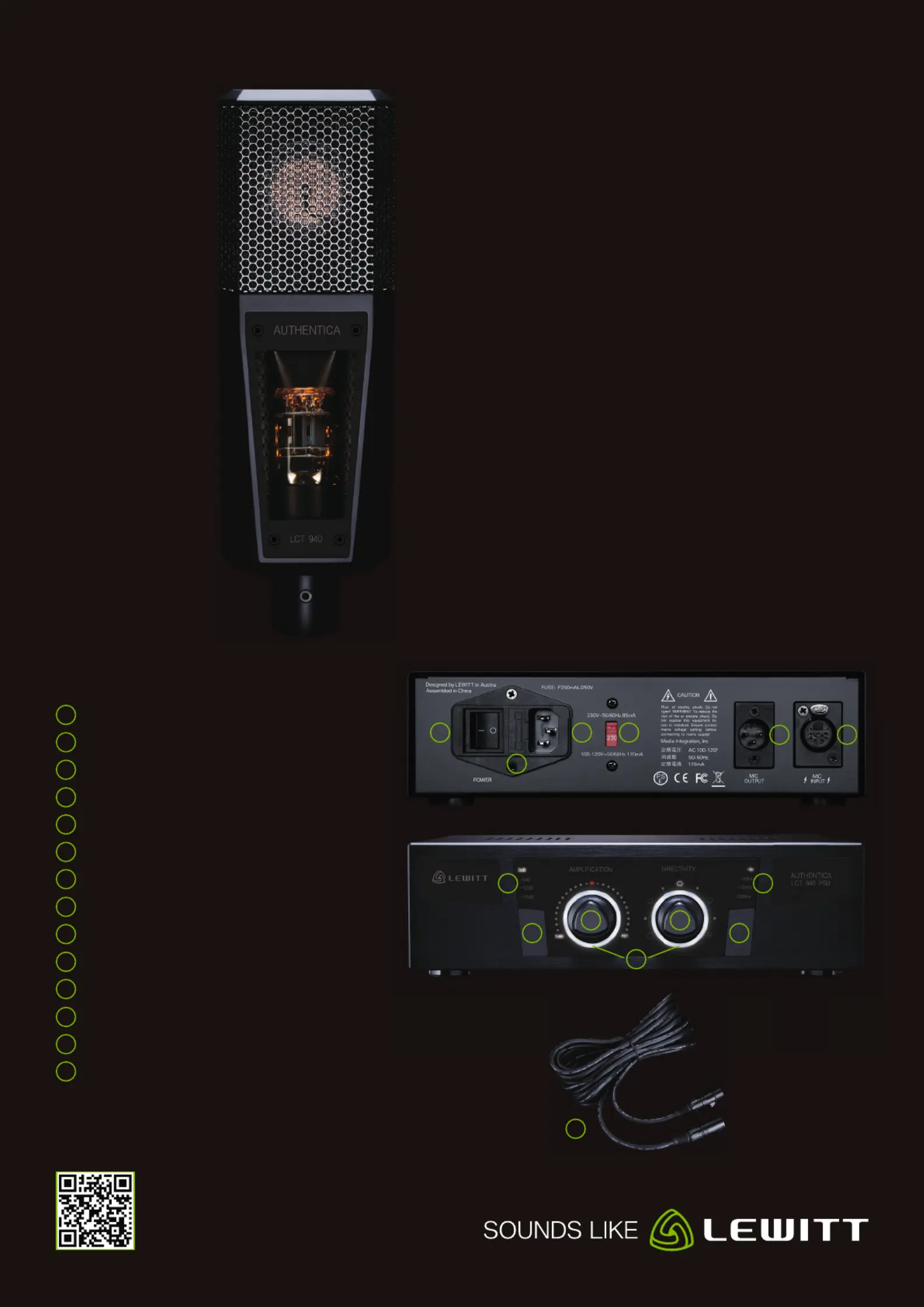

// User interface
1 On/Off switch
2 Fuse
3 Mains socket
4 Mains voltage selection switch
5 3-pin XLR socket
6 11-pin XLR socket
7 Pre-attenuation indications
8 Pre-attenuation push button
9 Stageless ampli cation selection, rotary knob
10 Status indicator rings
11 Polar pattern selection, jog dial
12 Low-cut lter indications
13 Low-cut lter push button
14 11-pin audio cable
4
1
10
12
13
7
8
5 6
3
2
9 11
14
READ THE
FULL MANUAL!
Learn Everything about your LCT 940
www.lewitt-audio.com/resources/manuals/LCT-940.pdf
Supply voltage: Custom power supply unit 230 V, 50 Hz 110 V, 60 Hz
Current consumption: 14.95 W
Connector: Gold plated 11-pin XLR
Cable: 5 m (16.40 ft) 11-pin audio cable oxygen-free copper
// LCT 940
QUICKSTART GUIDE
// Operating the microphone
Status indicator rings 10
Illuminated in : The microphone is in normal working mode. white
Illumination is : Key-lock active. off
Illumination : The microphone is experiencing clipping due to high SPL. ashes in red
Illumination in : The microphone is in automatic attenuation mode. red
Illumination : The microphone indicates the clipping history.ashes in white and red
Blend between TUBE and FET sound // Turn the rotary knob 9 and select the desired amplication. Choose between clean
“FET” and warm “TUBE” amplication or a mixture of the two circuits. The amplication mix is indicated by the red dot around
the rotary knob.
Polar pattern indicator // The currently active polar pattern is illuminated in white. If an intermediate polar pattern is selected the
neighboring polar patterns are illuminated in red and a white dot is illuminated between.
9 different characteristics can be set by briey turning the jog-dial 11 to the right or left.
Setting a low-cut lter // Low-cut lters can be set by pressing the right push button 13 .
Settings are: linear, 40 Hz (12 dB/oct), 150 Hz (6 dB/oct) and 300 Hz (6 dB/oct). Low-cut lters eliminate unwanted low-frequency
sounds, compensate the proximity effect and reduce structure-borne noise. Do not forget to use the supplied windshield if
necessary.
Setting an attenuation level // Attenuation levels can be set by briey pressing the left push button 8 .
Settings are: 0 dB, -6 dB, -12 dB and -18 dB. Attenuation is used in high SPL environments in order to prevent clipping of the
microphone, mixer and other audio equipment.
To learn about the key-lock function clipping history, and automatic attenuation please read the full manual following the
link at the bottom.
// Please Note
// The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress and force.
// To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
Use supplied windshield if suitable.
// Do not apply excessive force on the buttons or the connected cable.
// When disconnecting the microphone cable, grasp the connector and do not pull the cable.
// Do not attempt to modify or x the microphone, as it would void your product warranty.
// The casing of the microphone can be cleaned easily using a wet cloth, never use alcohol or another solvent for cleaning.
// The windshield can be washed with soap water, if necessary.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
// Getting started
1 Make sure the mains voltage selection switch is set to the correct position depending on the country‘s mains electricity. 4
2 Use the 11-pin audio cable to connect the microphone with the 11-pin XLR socket on the backside of the PSU.
3 Use the 3-pin XLR cable to connect your mixer with the 3-pin XLR socket 5 on the backside of the PSU.
4 Put the LCT 940 into operation by activating the On/Off switch on the backside of the PSU.1
5 Let the tube warm up. Microphone reaches full sensitivity after 60 seconds.
6 Experiment with different Tube and FET ratios.
7 You are ready to go!
LEWITT
®
Burggasse 79
1070 Vienna
Austria
www.lewitt-audio.com
// IMPORTANT NOTICE!
// Never remove the mains earth, doing so can have lethal consequences.
// Replace fuse only with the same type.
// Only use indoors, in safe and dry environments.
// There are no user-serviceable parts inside the power supply unit, but there
are potentially lethal voltages. If it does not work correctly, you should consult your dealer. Do not open the unit yourself.
// Do not disconnect the microphone cable while the system is powered as this may result in damage to the microphone.
// Do not use with damaged cables or after unit has fallen and loose parts or broken glass can be heard inside.
// Do not cover the power supply unit, always leave enough space around it for proper ventilation.
