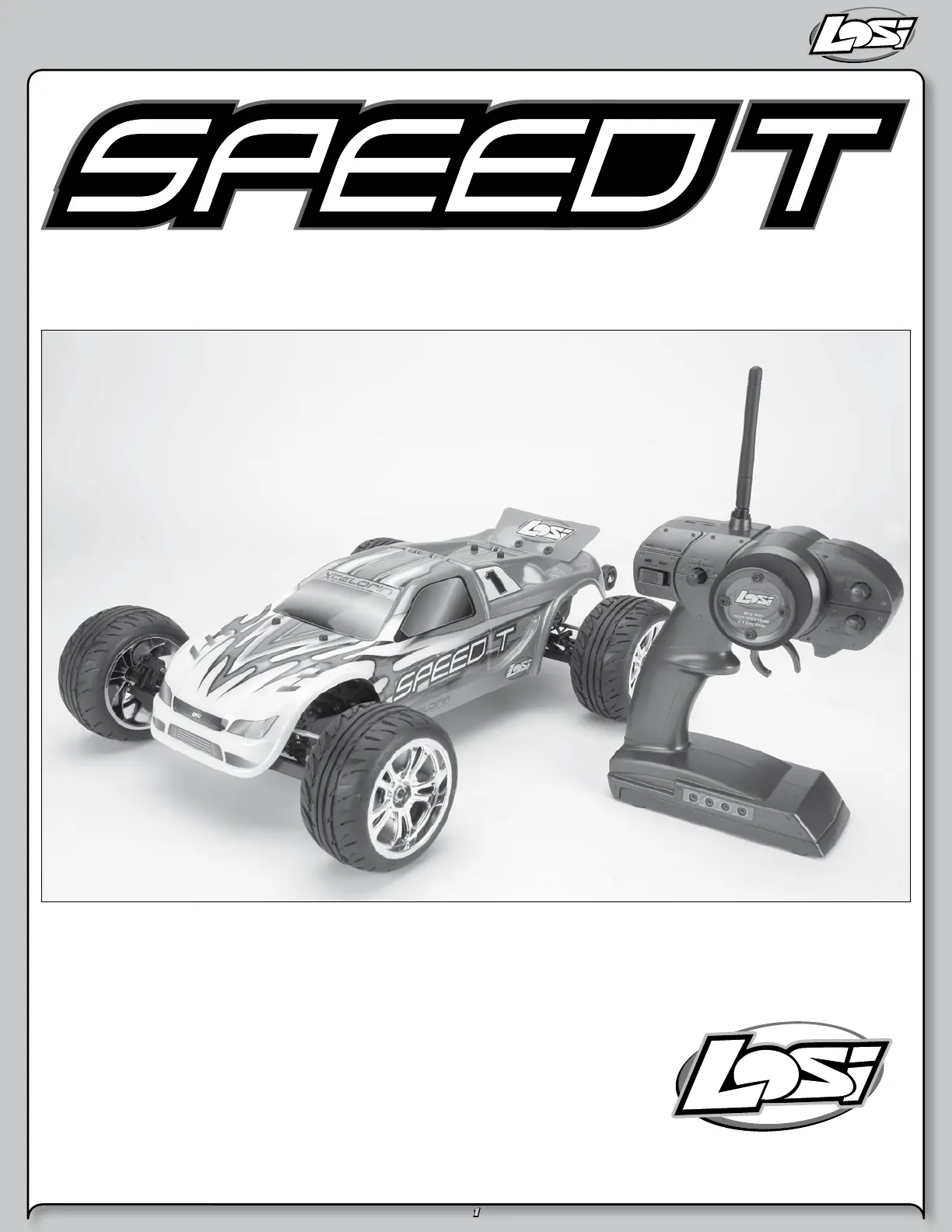

Oldal 1/21
1
®
Not responsible for errors. All prices subject to
change without notice.
Losi, a Division of Horizon Hobby, Inc.
®
2
®
Thank you for purchasing the Losi™ Speed-T RC vehicle
including the powerful new Xcelorin™ Brushless System. The
Xcelorin brushless system will provide you with the benet
of the latest in brushless technology oering you speed and
power with the benet of low maintenance operation.
We are condent you will be satised with the high-speed
performance in this durable and resilient vehicle.
Understanding that you are anxiously wanting to get your
Speed-T ready for the open road, it will be to your long term
benet to make the eort and read through the entire manual.
In the following pages you will nd all the information you will
need to set up as well as operate your new Speed-T to its full
potential.
If you are an experienced RC hobbyist, or new to RC vehicles,
it will benet you to read all enclosed information.
From everyone at Losi we would like to thank you again for
choosing the Speed-T. Our goal is helping people have fun and
enjoy using our products.
Register your Losi Product Online
Register your Speed-T now and be the rst to nd out
about the latest options parts, product updates and more.
Log on to www.LOSI.com and follow the product registration
link to stay connected.
Losi/Horizon Support
If you have any questions concerning setup or operation of
your Speed-T RC vehicle please call Horizon Customer Support
at1-877-504-0233.
Hours:
MondaythruFridayfrom8:00amCSTto5:00pmCST
You are welcome to call us with any support issue, or question
you may have about the Speed-T.
Getting Ready
Thoroughly read all the enclosed material, precautions and
follow instructions to avoid damaging your new RC vehicle. If
you choose to not follow these steps or instructions, it will be
considered negligence.
If after review of this manual and prior to running your Speed-T,
you determine this RC vehicle is not what you want—DO NOT
proceed and DO NOT run the Speed-T. If the Speed-T has been
run, your local hobby shop will not be able to process a return
or accept it for exchange.
Introduction .................................................................................................2
Safety Precautions: .....................................................................................3
Supplied and Required Equipment .....................................................4
Technical Overview ............................................................................... –86
Battery Overview/Requirements ..........................................................9
Quick Start ..................................................................................................11
LosiMTXProRadioSystem ...................................................................14
Xcelorin Brushless Electronic Speed Control ..................................17
Driving the Speed-T ................................................................................. 12
Tuning,AdjustingandMaintainingtheSpeed-T ..........................22
Troubleshooting your Speed-T ............................................................ 82
Warranty Information .............................................................................30
RC Terminology .........................................................................................32
Table of Contents Introduction
4
®
Batteries and Charging:
TheSpeed-TusesrechargeablebatteriessuchasNiMHor
LiPo. These batteries all have special requirements to preserve
performance and last a long time. Read all instructions and
precautions that are provided with the batteries intended to
be used in the Speed-T.
• Readallinstructionsprovidedbythemanufacturer
of the batteries.
• Responsibleadultsupervisionisnecessarywhile
charging batteries.
• Alwayschecktoensurethepolarityofbattery
connection is correct.
• Neverleavebatteriesunattendedwhilecharging.
• Neverchargeabatterywhileitisinstalledinthe
Speed-T.
• Donotchargeanybatterythatappearstohave
any damage.
• Ifthereareexposedwiresdonotchargeorusethe
battery until you have installed shrink-wrap or replaced
the complete wire.
IfchargingNiMHbatteries,selectachargertomeetyour
requirements. Chargers can be of two primary types for
theirsourceofpower;a100-240Vwallcharger,orone
whichrequiresa12Vpowersupply.Followthecharger
manufacturer’s instructions and precautions during each use.
Special Consideration for Using LiPo
Batteries and Charging:
Lithium Polymer batteries have gained in popularity for use
in RC vehicles because of their size and power capabilities.
These batteries must be used with special care and handling.
LiPo batteries are only recommended for the experienced
hobbyist with knowledge of handling LiPo batteries who
completely understands the associated risk when using these
batteries. LiPo batteries are extremely sensitive to both over-
charging and over-discharging.
TheSpeed-Tcanbeusedwith2-or3-cellLiPobatteriesONLY.
• 2-cellis7.4Vandfullychargedatapproximately8.4V
• 3-cellis11.1Vandfullychargedatapproximately12.6V
The supplied Xcelorin Electronic Speed Control (ESC) can
supportuptoandincludinga3-cellLiPoonly.TheESChas
aLowVoltageprotectionfeaturethattheusermustsetto
match the battery being used. The ESC will turn on the Red
LED and reduce power to the motor when the battery voltage
has dropped below the cuto voltage. For LiPo batteries this
istypically3Vpercell,ex:a3-cellLiPowouldhavea9.0V
voltage cuto. It is the user’s responsibility to ensure that the
LiPo battery is not over-discharged.
It is mandatory that if you choose to use a LiPo battery that
you (the user) read all instructions and safety precautions
supplied by the battery manufacturer. This applies to the
selected LiPo charger as well.
Supplied tools:
2-Waywrench
Radio Adjusting Screw Driver
Transmitter / Receiver BIND Plug
Four(4)HexWrench“L”shaped
.050",1/16",5/64",and3/32"
Flat Turnbuckle Wrench
Recommended Accessories:
- Hobby grade knife
- CAglue(LOSA7880orLOSA7881)
- Needle nose pliers
- Side cutting pliers
- Doublesidedtape(LOSA4004)
- Safety Goggles
- Soldering iron
Supplied and Required Equipment
