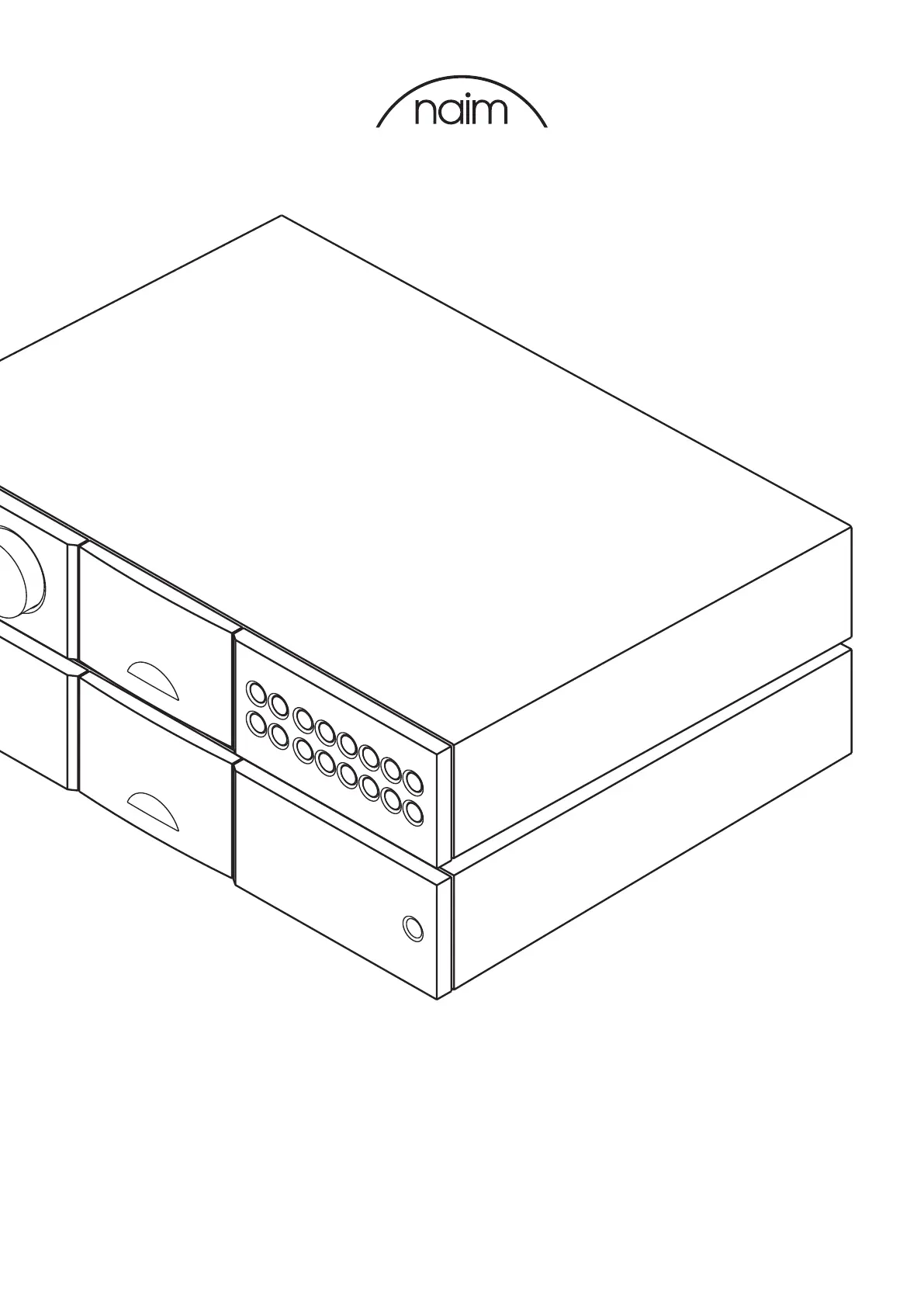

REFERENCE MANUAL
PREAMPLIFIERS
ENGLISH
Contents
Section Page
Contents
1 Connections E1
1.1 Interconnect Cables E1
2 Mains Power E1
2.1 Mains Plug Wiring E1
2.2 Equipment Fuses E1
2.3 Non-rewirable Mains Plugs E1
2.4 Mains Circuits and Cables E1
3 General Installation E2
3.1 Siting The Equipment E2
3.2 Switching On E2
3.3 Running In E2
3.4 Radio Interference E2
3.5 Lightning Precautions E2
3.6 Problems? E2
3.7 Service and Updates E2
4 NAC 552 Introduction and Installation E3
4.1 Source Inputs and Record Outputs E3
4.2 Input Socket Assignment E3
4.3 Socket Types and Assignment Defaults E4
4.4 Record Mute E4
4.5 NAC 552 Signal Outputs E4
4.6 Auxiliary Power Output E4
5 NAC 552 Connections and Controls E4
5.1 NAC 552 Rear Panel Connections E4
5.2 NAC 552 Connected to NAC 552PS E5
5.3 NAC 552 Front Panel Controls E5
6 Specification E5
7 NAC 252 Introduction and Installation E6
7.1 Source Inputs and Record Outputs E6
7.2 Input Socket Assignment E6
7.3 Record Mute E6
7.4 NAC 252 Signal Outputs E6
7.5 Auxiliary Power Output E6
8 NAC 252 Connections and Controls E7
8.1 NAC 252 Rear Panel Connections E7
8.2 NAC 252 Connected to SuperCap E7
8.3 NAC 252 Front Panel Controls E8
9 Specification E8
10 NAC 282, NAC 202 and NAC 152 XS
Introduction and Installation E9
10.1 NAC 282 Source Inputs and
Record Outputs E9
10.2 NAC 282 and NAC 202
Input Socket Assignment E9
10.3 NAC 282 and NAC 202 Record Mute E9
10.4 NAC 152 XS Source Inputs E10
10.5 Signal Outputs E10
10.6 Auxiliary Power Outputs E10
10.7 Power Supply Upgrades E10
11 NAC 282, NAC 202 and NAC 152 XS
Rear Panel Connections E11
11.1 NAC 282 Rear Panel Sockets E11
11.2 NAC 202 Rear Panel Sockets E12
11.3 NAC 152 XS Rear Panel Sockets E12
12 NAC 282, NAC 202 and NAC 152 XS
Power Supply Connections E13
12.1 NAC 282 Connected to Hi-Cap
and NAPSC E13
12.2 NAC 282 Connected to SuperCap
and NAPSC E13
12.3 NAC 202 Connected to Hi-Cap
and NAPSC E14
12.4 NAC 152 XS Connected to
FlatCap (both outputs) E14
12.5 NAC 152 XS Connected to FlatCap
and Hi-Cap E15
12.6 NAC 282 Front Panel Controls E15
12.7 NAC 202 Front Panel Controls E16
12.8 NAC 152 XS Front Panel Controls E16
13 Specifications E16
14 Preamplifier Operation E17
14.1 Automatic Input Switching E17
14.2 AV Bypass E17
14.3 Handset Volume and Balance Control E18
14.4 Mute, Mono and Mon E18
14.5 Display E18
14.6 Switching On E18
14.7 Defaults E18
14.8 Fault Conditions E19
14.9 Interface Function Buttons and Keys E19
15 R-com Remote Handset E20
15.1 Using R-com E20
15.2 R-com Keys E20
16 NARCOM 4 Remote Handset E21
16.1 Using NARCOM 4 E21
16.2 NARCOM 4 Keys E21
17 Declaration of Conformity E22
18 Statutory Safety Warnings E22
E1
Naim Audio products are conceived with performance as the top priority. Careful
installation will help ensure that their full potential is achieved. This manual covers all
non-streaming preamplifiers. It begins with some general installation notes. Product
specific information begins in Section 4.
Introduction
1 Connections
It is important for both safety and performance that the
standard cables supplied are not modified.
1.1 Interconnect Cables
If options are available with your equipment and installation,
DIN interconnect sockets should be used in preference to RCA
Phono sockets. One end of each Naim interconnect cable is
marked with a band to establish its correct orientation. The
band denotes the end that connects to the signal source. Naim
Hi-Line interconnect cables will provide the best results.
Interconnect plugs and sockets should be kept clean and free
from corrosion. The easiest way to clean them is to switch off
the equipment, pull the plugs out of their sockets, and push
them back in again. Contact cleaners and “enhancers” should
not be used as the film they deposit may degrade the sound.
2 Mains Power
Where fused plugs are used 13 amp fuses should be
fitted. Fuses of a lower rating will fail after a period of
use. Do not wire voltage dependent resistors or noise
suppressors into mains plugs. They degrade the mains
supply and the sound.
2.1 Mains Plug Wiring
In some territories a mains plug may need to be fitted to
the supplied mains lead. As the colours of the wires in the
mains lead may not correspond with the coloured markings
identifying the terminals in the plug proceed as follows:
The wire coloured GREEN-AND-YELLOW must be connected to
the terminal in the plug marked by the letter E or by the safety
earth symbol or coloured GREEN or GREEN and YELLOW.
The wire coloured BLUE must be connected to the terminal in
the plug marked with the letter N or coloured BLACK.
The wire coloured BROWN must be connected to the terminal
in the plug marked with the letter L or coloured RED.
2.2 Equipment Fuses
Mains powered Naim Audio equipment is fitted with a mains
fuse on the rear panel adjacent to the mains input socket.
Replace it if necessary only with the spare fuse supplied or with
an identical fuse. Repeated failure of the fuse points to a fault
that should be investigated by your retailer or Naim itself.
2.3 Non-rewirable Mains Plugs
If a non-rewirable plug is cut from a mains lead (for whatever
purpose) the plug MUST be disposed of in a way to render it
totally useless. Considerable shock hazard exists if the cut-off
plug is inserted into a mains outlet.
2.4 Mains Circuits and Cables
A hi-fi system usually shares a mains circuit with other
household equipment some of which can cause distortion
of the mains waveform. This distortion can in turn lead
to mechanical hum from mains transformers. Some Naim
transformers are large in size, making them relatively sensitive
to such distortion, and it may be necessary to take account of
transformer hum when siting your equipment.
Transformer hum is not transmitted through the speakers and
has no effect on the performance of the system; however, a
separate mains circuit may reduce it. Such a circuit (ideally
with a 30 or 45 Amp rating) will also generally improve system
performance. Advice on the installation of a separate mains
circuit should be sought from a qualified electrician.
Use only the mains leads and plugs supplied or the Naim
PowerLine mains cable.
Note: Please read
the Statutory Safety
Warnings found at the
end of this manual.
