Használati útmutató Pro-Ject XA B
Pro-Ject
lemezjátszó
XA B
Olvassa el alább 📖 a magyar nyelvű használati útmutatót Pro-Ject XA B (12 oldal) a lemezjátszó kategóriában. Ezt az útmutatót 10 ember találta hasznosnak és 5.5 felhasználó értékelte átlagosan 4.4 csillagra
Oldal 1/12

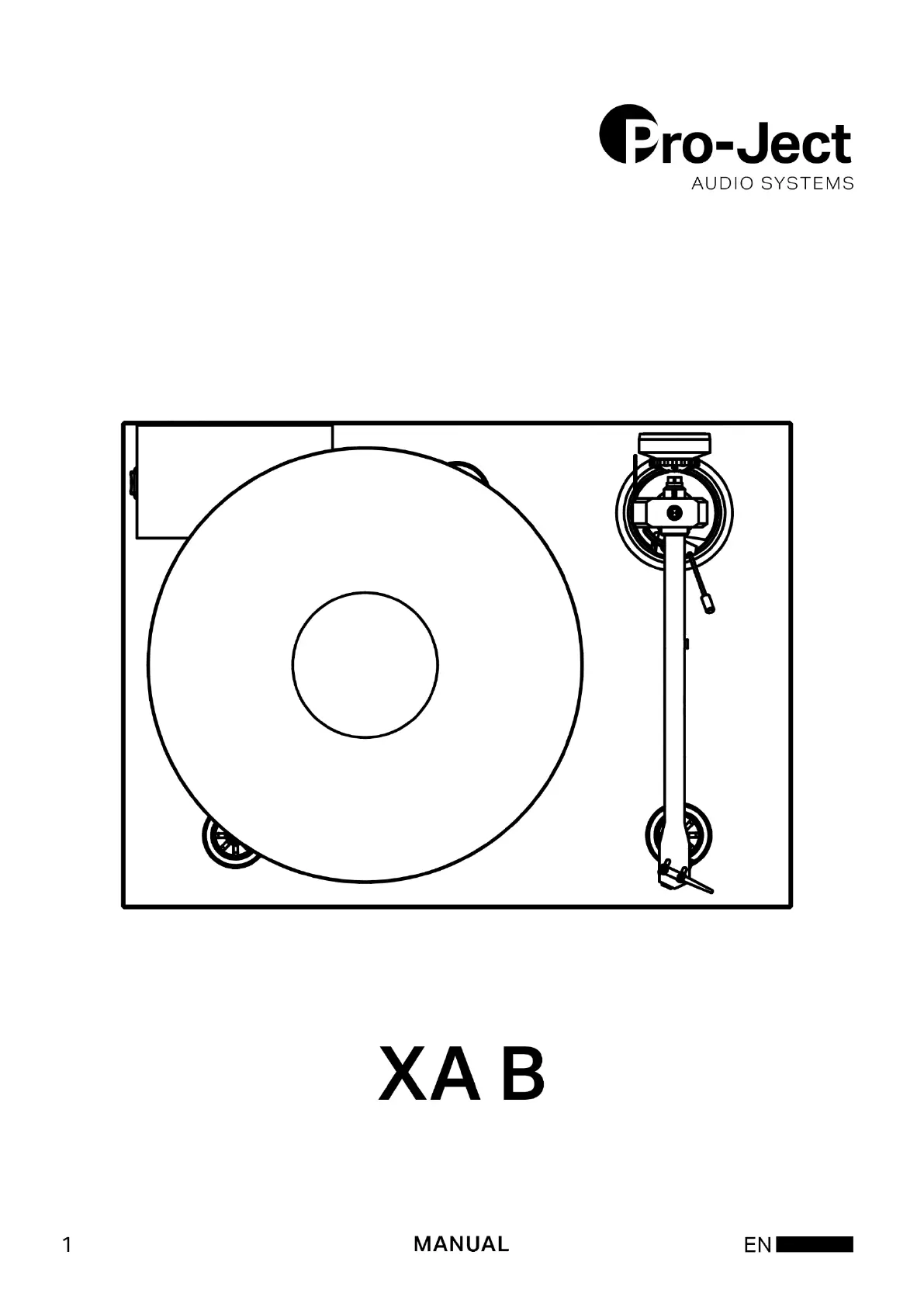

XAB
Getting started:
• Make sure to have enough space to unpack your turntable.
• Always unpack and set up in a clean environment.
• Please Do NOT throw away the packaging! If you need
service or want to return your product, please send it
in the original packaging including all inserts. In case of
damage due to alternative packaging your dealer cannot
guarantee a full refund.
• complete manual:
www.project-audio.com/en/product/debut-xa-b
1
Unpack all items from accessory bag:
Remove dust cover carton from the box.
Lift the wrapped turntable out of the box.
a) Anti Skating Weight
b) Drive Belt
c) Adapter for 7“ singles / Allen keys
d) Connect it E RCA cable
e) Allen key VTA adjustment
f) Cartridge alignment protractor
g) Cotton gloves
Carefully remove the protective cover.
3
4
2
5
Unpack power supply, record puck and
counterweight from the bottom inserts.
Unpack the aluminium platter.
If necessary, level the turntable by
adjusting the feet.
6
8
7
Put the drive belt on the pulley
and sub-platter.
9
Put the platter on the turntable.
10
11
12
13
Remove tonearm twist tie.
16
Put the loop of the Anti Skating Weight (a)
in the outer notch on the tonearm post.
14
17
15
Balance the tonearm by turning
the counterweight forwards
and backwards on the rod.
0°
Plug in the Phono cable.
18
19
Plug in the power cable.
21
20
33 RPM
RIGHT:
45 RPM STANDBY
STANDBY
MIDDLE:
33 RPM
LEFT:
a)
b)
c)
d)
e)
d)
f)
Remove the needle protection cover.
Use the rocker-switch on the left to
select the playback speed.
g)
Put the counterweight in place.
Place the tonearm between platter
and armrest.
Put a record on the turntable.
Lower the tonearm with the lift.
Turn the front dial of the counterweight
(not the whole weight) so the ‘0’ is in line
with marker at the back of the tonearm.
Turn the whole counterweight counter-
clockwise until the scale reads 18 - 20.
XA B
Service
Should you encounter a problem which you are not able to alleviate or identify despite the above information, please contact your dealer for further
advice. Only when the problem cannot be resolved there should the unit be sent to the responsible distributor in your country.
Warranty repairs will only be aected if the unit is returned correctly packaged. For this reason we recommend keeping the original packaging.
Never return a record player without making sure that is it safely disassembled and correctly packaged in the original packaging according to the
diagrams on the last page of this user guide. Please remove these parts and pack them separately: lid, counterweight, anti-skating weight and belt.
Fit the cartridge protection cap and the transport lock for the tonearm tube, prior to carefully packaging the record player.
Warranty
The manufacturer accepts no responsibility for damage caused by not adhering to these instructions for use and/or by transportation without the
original packaging. Modication or change to any part of the product by unauthorized persons, release the manufacturer from any liability over and
above the lawful rights of the customer.
Warranty: Terms and Conditions
• A warranty is valid only for products purchased from an authorized Pro-Ject Audio Systems retailer or dealer.
• This warranty oer is limited to the repair of the equipment (which could be a repair or replacement at our discretion, neither of which aects
your original warranty).
• Neither transportation or any other costs, nor any risk for removal, transportation and installation of products is covered by this warranty.
• A warranty is only valid for the original owner. It is not transferable.
• To validate your warranty, you will need to provide the original sales invoice or other proof of ownership and date of purchase.
• Warranty must be claimed within two years of purchase from an authorized dealer. After this period of time, the warranty will expire.
• The legal warranty obligation exists in addition to this warranty and is not limited by this warranty.
A Pro-Ject Audio Systems warranty relates to claims of defects in materials and/or workmanship at the time of purchase. It does not cover:
• Deterioration of component parts, the nature of which is to become worn or depleted with use, such as batteries and headphone ear pads,
drive belts and cartridges.
• Damages caused by incorrect installation, connection or packing.
• Damages caused by any use other than the correct use described in the user manual, negligence, modications, or use of parts that are not
made or authorized by Pro-Ject Audio Systems.
• Damages caused by faulty or unsuitable ancillary equipment.
• Damages caused by accidents, lightning, water, re heat, war, public disturbances or any other cause beyond the reasonable control of
Pro-Ject Audio Systems and its appointed distributors.
• Products where the serial number has been altered, deleted, removed or made illegible.
• Repairs or modications that have been executed by an unauthorized person.
Commercial Use
Faults caused due to using domestic products in commercial environments or on commercial scales are not covered by warranty. This turntable is
intended for domestic use only. Using them for business applications are done so at your own risk.
Pro-Ject Audio Systems is a Registered Trademark of H. Lichtenegger.
This guide was produced by: Pro-Ject Audio Systems
Copyright © 2022. All rights reserved.
The information, pictures and gures were correct at the time of going to press. The manufacturer reserves the right to make changes to the techni-
cal specication without prior notice as deemed necessary to uphold the ongoing process of technical development.
Need help?
Feel free to contact us. We have experienced
partners all over the world. Find your dealer here:
www.project-audio.com/en/nd-a-dealer/
SG038
Termékspecifikációk
| Márka: | Pro-Ject |
| Kategória: | lemezjátszó |
| Modell: | XA B |
