www.PyleUSA.com
Professional Guitar Seat with Padded Cushion
PYG60
Heavy-Duty Ergonomic Backrest and Fold Out Guitar Stand

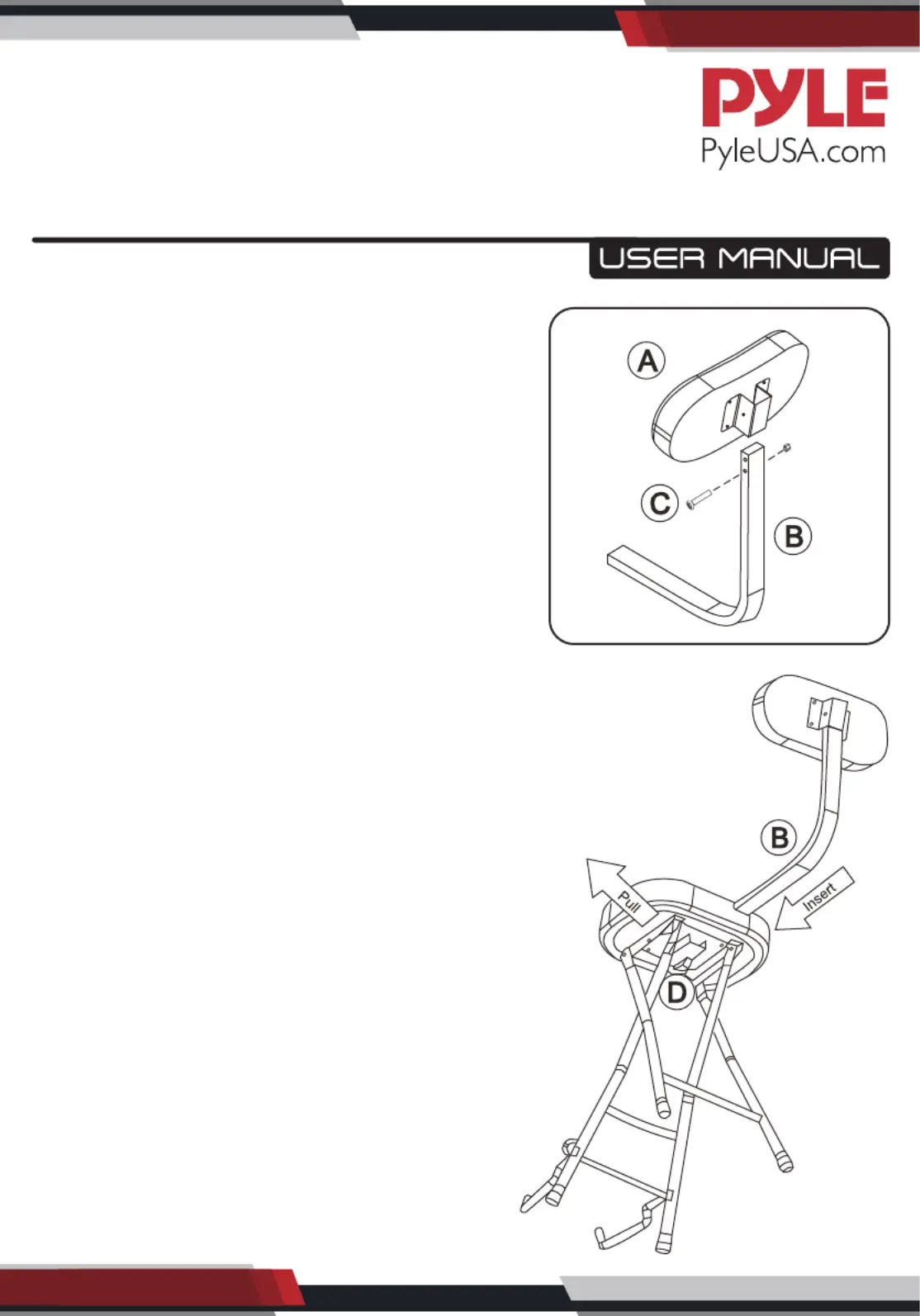

ASSEMBLING INSTRUCTIONS
STEP 1:
Install Backrest (A) on Support Bar (B).
Tip: It may help to slightly compress the pivot
STEP 2:
Insert Backrest Pivot Bolt (C) and Tighten.
Tip: You can select between two dierent hole
positions based on seatback heighy
preference.
STEP 3:
Open Stool by Pulling Lock Pin Ring
Tip: The lock pin is located under the seat and is
spring loaded,it automatically locks into open
and closed positions.
STEP 4:
Insert Support Bar (B) into Seat Bracket (D).
Tip: The distance of the seatback is adjustable
depending on how far you insert the support bar.
For stability, insert support bar so a minimum
of 1" is extending beyond far side of bracket.
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
