Satco Products, Inc.
Brentwood, NY 11717© Copyright 2022 Satco Products, Inc. 3/22 v4.0 1
CCT SELECTABLE LED
LINEAR T8 TYPE B LAMPS
Models: S11919, S11929, S11969
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing xture. Retain for future reference.
WARNING:
• DANGER: Risk of shock-disconnect power before
installation.
• WARNING: Risk of re or electric shock. LED
Retrot Kit installation requires knowledge of luminaire
electrical systems. If not qualied, do not attempt
installation. Contact a qualied electrician.
• WARNING: Product must be installed in accordance
with the national electrical code or your local electrical
code. If you are not familiar with these codes and
requirements, contact a qualied electrician.
• WARNING: Install this kit only in luminaries that have
the construction features and dimensions shown in the
photographs and/or drawing and where the input rating
of the retrot kit does not exceed the input rating of
the luminaire.
• WARNING: To prevent wiring damage or abrasion,
do not expose wiring to edges of sheet metal or other
sharp objects.
• WARNING: NOTE: Shunted lamp holders are found
only in uorescent luminaries with instant-start
ballasts. Instant-start ballasts can be identied by the
words “Instant Start” or “I.S.” marked on the ballast.
This designation may be in the form of a statement
pertaining to the ballast itself, or may be combined
with the marking for the lamps with which the ballast
is intended to be used, for example F40T 12/IS, for
more information contact the LED luminaire retrot kit
manufacturer.
Do not make or alter any open holes in an enclosure of
wiring or electrical components during kit installation.
Installers should not disconnect the existing wire from
lampholder terminals to make new connections at
lampholder terminals. Instead installers should cut
existing lampholder leads away from the lampholder
and make new electrical connections to lampholder
lead wires by employing applicable connectors.
• WARNING: Luminaire wiring and electrical parts
may be damages when installing retrot kit hardware.
Check for enclosed wiring and components.
• WARNING: Check the existing wiring for damage
before installing upgrade kit. Do not install if existing
wires are damaged.
This retrot kit is accepted as a component of a
luminaire where the suitability of the combination shall
be determined by authorities having jurisdiction.
THIS RETROFIT KIT INCLUDES, LED TUBE,
OPERATING INSTRUCTIONS, AND FIXTURE LABEL
FOR THE DOUBLE OR SINGLE ENDED APPLICATION.
• “This luminaire has been modied and can no longer
operate the originally intended lamp,” shall be marked
on the retrot luminaire where readily visible by the user
during normal maintenance including lamping.
• Do not use with dimmers.
• Suitable for damp locations.
• Suitable for use in enclosed luminaries, not vapor tight.
• Suitable for use with the following emergency
equipment; SATCO Products, Inc., model S8000,
S8002; 5Watt or 10 Watt Emergency LED Driver.
• This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
Item
Number Description CCT Watts Hours Lumens
Minimum Lamp
Compartment Dimensions
(Length x Width x Height)
Lamp-to-Lamp
Spacing
S11919 12.5T8/LED/48/840-850-865/BP/2PK
40-50-65K 12.5W 50,000 1800 47 7/8 x 23 7/8 x 4 inches
(121.5 x 60.5 x 10 cm)
4 3/8 inches
(11cm)
S11929 12.5T8/LED/48/840-850-865/BP
S11969 12.5T8/LED/48/830-835-840/BP 30-35-40K
The units covered by this report were intended to retrot surface mount, Type IC or non-IC recessed mount Listed uorescent
luminaires that use maximum 4 tubular lamps, the minimum lamp compartment dimensions are tabulated below.
Satco Products, Inc.
Brentwood, NY 11717© Copyright 2022 Satco Products, Inc. 3/22 v4.0 2
FEATURES
• c-UL-us classied and recognized
• Full glass housing: No aging, yellowing, bending
APPLICATIONS
Widely used in residential buildings, ofces, shopping malls, supermarkets, hospitals, assembly lines, warehouses, etc.
for energy saving illumination.

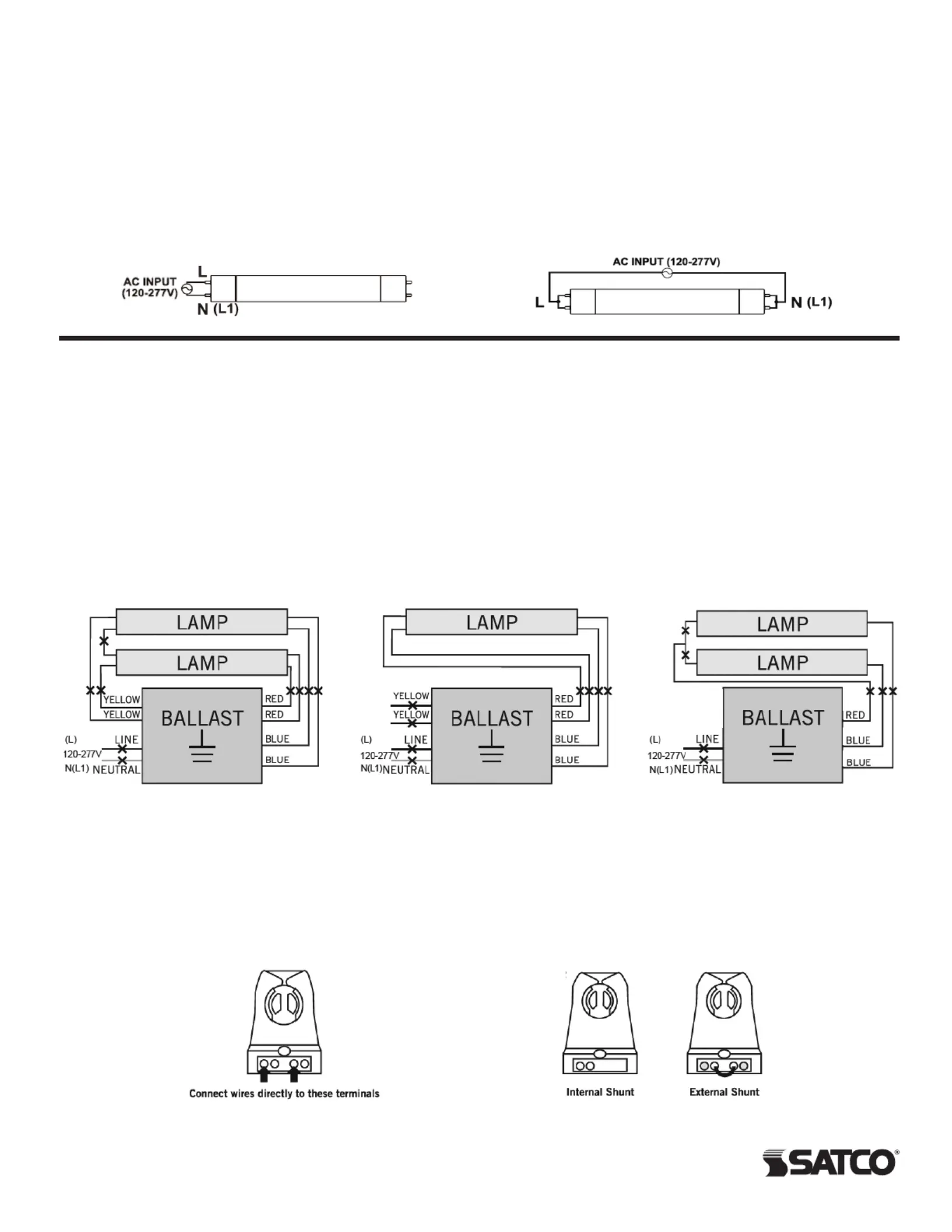

Single Ended Double Ended
Typical Shunted LampholdersTypical Non-Shunted Lampholder
SINGLE-ENDED WIRING INSTALLATION
Removing Existing Fluorescent System
1. Disconnect power from xture.
2. Remove uorescent lamp(s).
3. Remove lens and wiring compartment, if applicable.
4. Cut all wires connected to the ballast as shown below and remove ballast.
5. Identify what type of lampholders are in xture. Single-Ended wiring installation of SATCO tubes requires
non-shunted G13 lampholders.
6. If applicable, replace lampholders with non-shunted lampholders.
CAUTION: Use only non-shunted lamp holders for Single-Ended wiring installations.
Do not perform Single-Ended wiring installation of product in a xture with shunted lampholders (found in all xtures using
instant start ballasts, Figure 2). If the existing lampholders are shunted, and Single-Ended wiring is desired, remove and
replace them with non-shunted lampholders (or remove the external shunt if applicable). make new connections directly to
lampholder terminals as shown in Figure 1 below.
Typical Ballast Congurations (NOTE: [
x
] Indicates where to cut existing wiring.)
A B C
Figure 1 Figure 2
Satco Products, Inc.
Brentwood, NY 11717© Copyright 2022 Satco Products, Inc. 3/22 v4.0 3

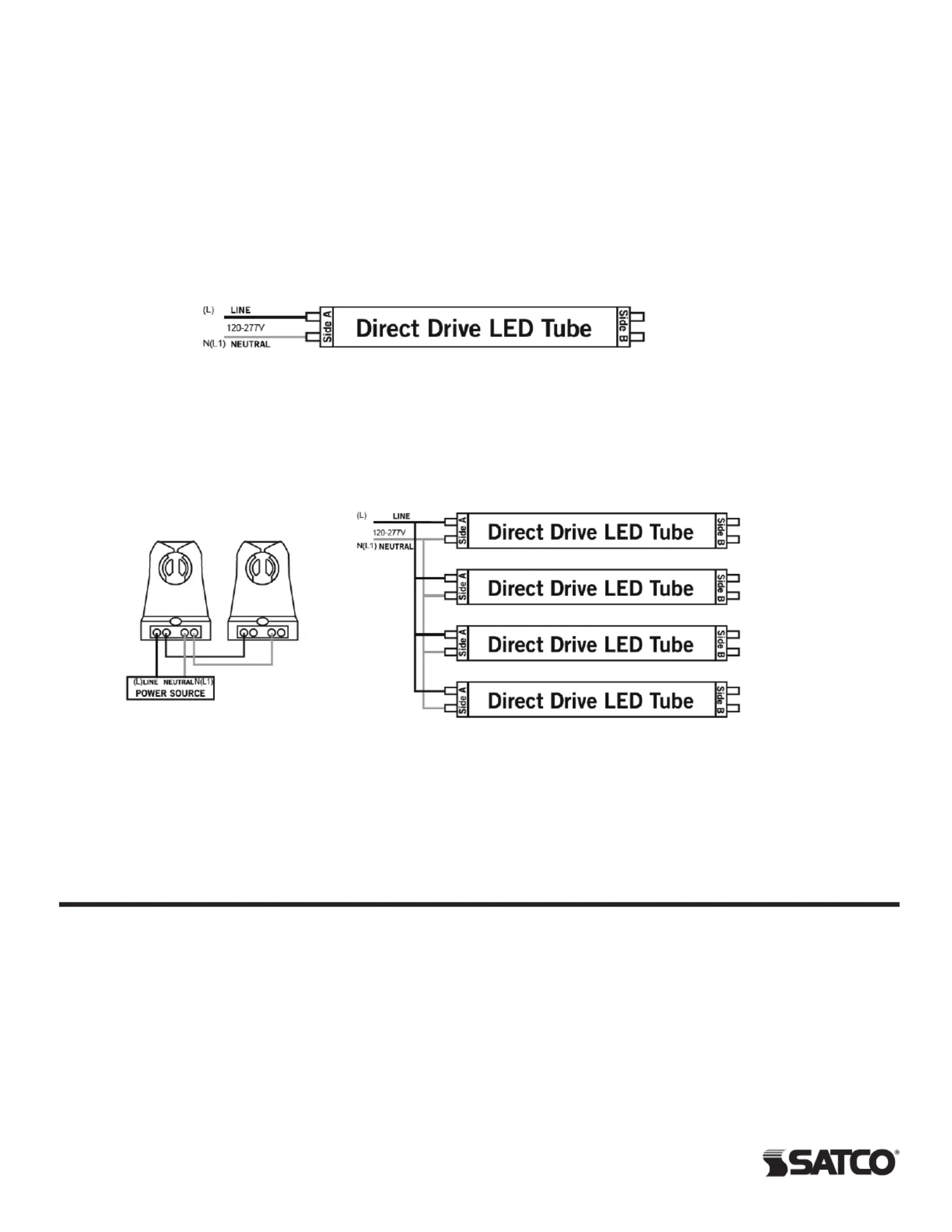

Installing the Lamps
NOTE: For Single-Ended wiring installations, power is only applied to endcap labeled Side A. DO NOT apply
power to Side B.
• Conrm that power is still disconnected from xture.
• Make sure xture is properly grounded.
• Follow STEP 1 for single lamp application or STEPS 2 and 3 for multiple lamp application, based on the number of
lamps in the xture.
Single Lamp
STEP 1: On the Side A lampholder, connect line (L) and neutral N(L1) AC wires to the corresponding pins marked (L) and
N(L1) on the endcap. If only one lamp is being installed, proceed to STEP 4.
Multiple Lamps
STEP 2: Follow the step above for single lamp connection to connect the rst lamp.
STEP 3: Connect the terminals on the powered lampholder on the rst lamp to the matching terminals on the powered
lampholder on the second lamp with line and neutral wires as shown below. Continue daisy-chain connection for each
additional lamp.
STEP 4: Complete all electrical connectins with appropriate connectors/wire nuts as needed, per all local and national
electrical codes. NOTE: There should not be any exposed wires from sockets left unconnected.
STEP 5: Reinstall wiring compartment cover.
STEP 6: Install all of the SATCO tubes, making sure Side A in installed in the lampholders wired to the line and neutral. Install
LED tubes so that the LEDs are pointed in the proper direction for illumination, and install any lens or diffuser as applicable.
STEP 7: Apply power to xture and check for illumination.
DOUBLE-ENDED WIRING INSTALLATION (Shunted or Non-Shunted Lampholders)
Removing Existing Fluorescent System
1. Disconnect power from xture.
2. Remove uorescent lamp(s).
3. Remove lens and wiring compartment, if applicable.
4. Cut all wires connected to the ballast as shown in diagrams A, B and C on page 2.
5. Identify what type of lampholders are in xture. Double-Ended wiring installation of SATCO tubes can be used with
shunted G13 or non-shunted G13 lampholders (with instructions to externally shunt). See Figures 1 and 2 on page 2.
No Live Connection
to the lamp-holder
side B.
No Live Connection
to the lamp-holder
side B.
