HI-PRO LED 277-347V &

277-480V SMART PORT LAMPS

Models: S23160, S23161, S23162, S23163, S23164,

S23165, S23166, S23167, S23168

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2022 Satco Products, Inc. 4/22 v2.0

WARNING: Risk of Fire or Electric Shock

• Luminaire wiring and electrical parts may be damaged when drilling for

installation of LED retrot. Check for enclosed wiring and components.

• LED Retrot installation requires knowledge of luminaires electrical systems.

If not qualied, do not attempt installation. Contact a qualied electrician.

• Install this lamp only in luminaires that have the construction features and

dimensions shown in the photographs and/or drawings and where the input

rating of the retrot does not exceed the input rating of the luminaire.

• Do not make or alter any open holes in an enclosure of wiring or electrical

components during kit installation.

• To prevent wiring damage or abrasion, do not expose wiring to edges of

sheet metal or other sharp objects.

• Disable all power to the Luminaire. The lamp holder must be disconnected

from the wiring to the ballast, capacitor, or ignitor. Verify that voltage does not

exceed 480V. NOTE: S23160, S23161 not to exceed 347V. See Wiring Diagram.

• Failure to follow instructions can result in a damaged product and will void

warranty. It could also result in an electric shock or re.

IMPORTANT

• Added weight of the device may cause instability of a free-standing portable luminaire.

• Installers should not disconnect existing wires from lampholder terminals to make

new connections at lampholder terminals. Instead installers should cut existing

lampholder leads away from the lampholder and make new electrical connections

to lampholder lead wires by employing applicable connectors.”

80-954

WiFi Module

80-956

Photocell

INSTALLATION

STEP 1:Turn OFF power before installation.

STEP 2: Remove the old ballast, capacitor

and ignitor (if existing).

STEP 3: Make sure alternating current wires

connect to the socket directly. Reattach or

replace ground lead (if necessary).

STEP 4: Select color temperature on

lamp (Fig. A).

STEP 5: Screw the LED lamp into the

corresponding socket. Attach retrot label

to luminaire.

Optional Hi-Pro Intelligent Interface Accessories:

80-955

Motion Sensor/PIR

80-957

Motion Sensor/MW

Intelligent

interface

port for

accessories

Fig. A: Color

temperature

selection switch

4000K

3000K 5000K

Color Temperature

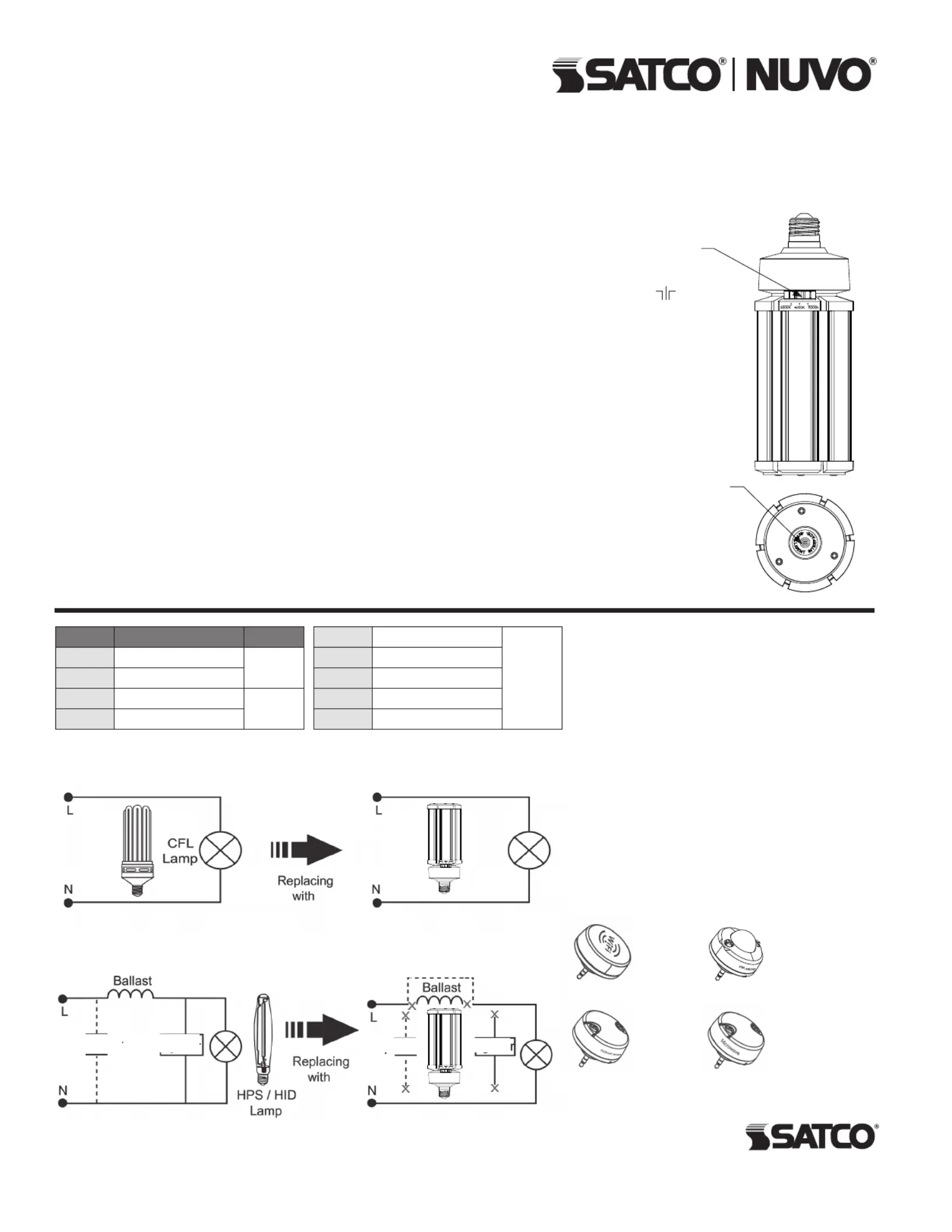

HPS/HID Wiring DiagramHi–Pro Wiring Diagram

Replacing HPS/HID Lamp

(L1)(L1)

277-480V*

CFL Wiring DiagramHi–Pro Wiring Diagram

277-480V*

(L1)(L1)

277-480V*

Capacitor

CapacitorIgnitor

Ignitor

277-480V*

Replacing CFL Lamp

WIRING DIAGRAM

Item #DescriptionVolts

S2316018W/LED/HID/CCT/E26

277-347

S2316127W/LED/HID/CCT/E26

S2316236W/LED/HID/CCT/E26

277-480

S2316345W/LED/HID/CCT/E26

S23164

36W/LED/HID/CCT/EX39

277-480

S23165

45W/LED/HID/CCT/EX39

S23166

54W/LED/HID/CCT/EX39

S23167

80W/LED/HID/CCT/EX39

S23168

100W/LED/HID/CCT/EX39

*

NOTE: Items S23160 and S23161 may not to exceed 347V.

*

NOTE: Items S23160 and S23161 may not to exceed 347V.
