SHELLY MOBILE APPLICATION

FOR

Introduction

⚠RECOMMENDATION! This user guide is subjective to ad-

justments. For the latest version, please visit:

https://shelly.cloud/knowledge-base/devices/shelly-plus-1/

Shelly devices can be controlled and managed directly on the

local network or by using the Shelly cloud service accessible

via the Internet.

Download the Shelly Cloud Application by scanning the QR

code above, or access the devices through the Embedded

web interface, explained further down in the user guide.

Shelly devices are compatible with Amazon Echo and Google

Home supported functionalities, as well as other home auto-

mation platforms and voice assistants. See details at

https://shelly.cloud/compatibility/.

Registration

The rst time you load the Shelly Cloud mobile app, you have

to create an account which can manage all your Shelly devic-

es. You need to use an actual e-mail because that e-mail will

be used in case of а forgotten password!

Forgotten Password

In case you forget or lose your password, click the “Forgot

Password?” link on the login screen and type the e-mail you

used in your registration. You will receive an e-mail with а

link to а page where you can reset your password. The link is

unique and can be used only once.

⚠ATTENTION! If you are unable to reset your password, you

have to reset your device (as explained in “Device Inclusion”

section, Step 1).

First steps

After registering, create your rst room (or rooms), where

you are going to add and use your Shelly devices. Shelly

Cloud allows you to create scenes for automatic control of

devices at predened hours or based on other parameters

like temperature, humidity, light, etc. (with available sensors

in Shelly Cloud). Shelly Cloud allows easy control and moni-

toring using a mobile phone, tablet, or PC. Shelly Plus 1 can

be grouped with other devices in the application. It can also

be set to trigger actions on other Shelly devices by set param-

eters. We also allow setting parameters for lights, scripting,

etc, which are not a simple ON/OFF.

THE SHELLY APP

Device inclusion

To add a new Shelly device, install it to the power grid fol-

lowing the Installation Instructions included with the device.

Step 1

When the installation of Shelly is done and the power is

turned on, Shelly will create its own Wi-Fi Access Point (AP).

⚠WARNING! In case the device has not created its own

AP Wi-Fi network with SSID like , ShellyPlus1-f008d1d8bd68

please check if the device is connected according to the Instal-

lation Instructions. If you still do not see an active Wi-Fi net-

work with SSID like , or you want ShellyPlus1-f008d1d8bd68

to add the device to another Wi-Fi network, reset the device. If

the device has been powered on, you have to restart it by pow-

ering it off and then again on. After that you have one minute

to press 5 consecutive times the button/switch connected to

the SW terminal. You should hear the relay trigger itself. After

the trigger sound, Shelly Plus 1 will return to AP mode. If not,

please repeat or contact our customer support at:

support@shelly.cloud .

Step 2

Please keep in mind that Shelly devices inclusion is different

on iOS and Android devices.

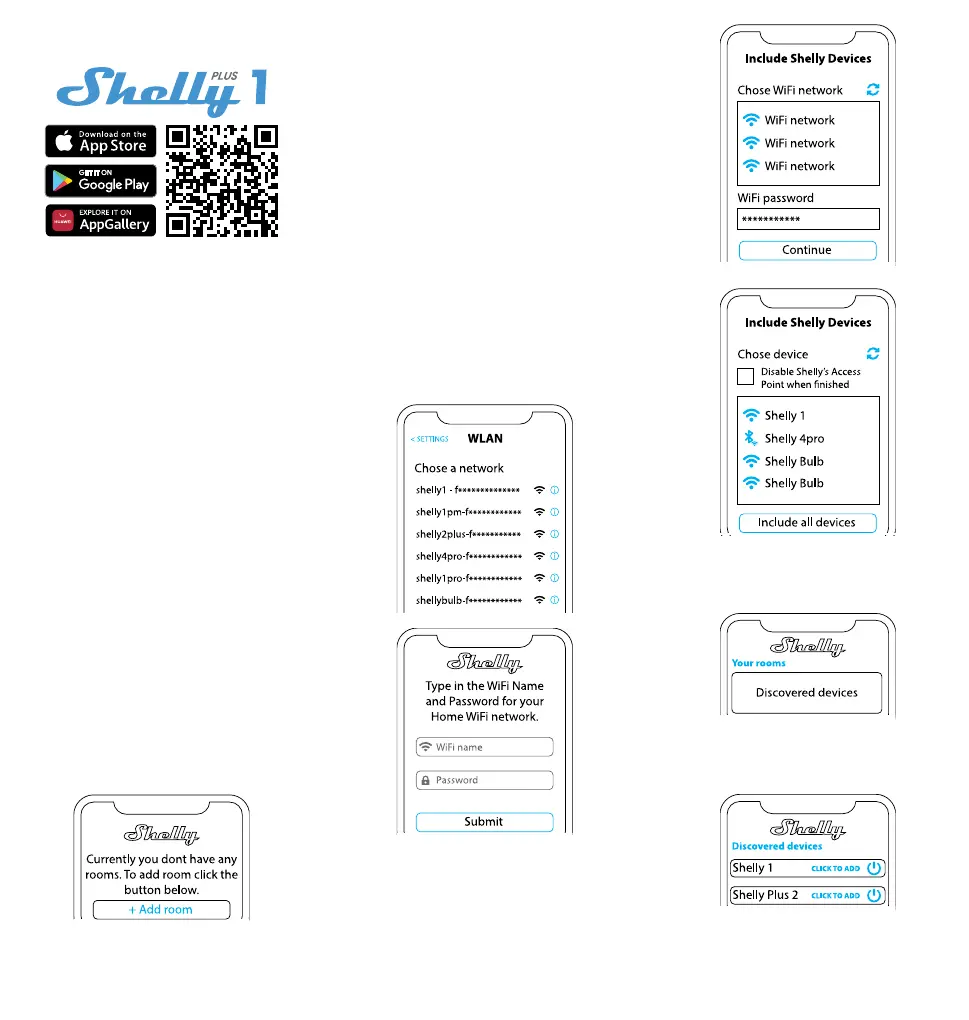

1. iOS inclusion - Open the settings menu on your iOS device >

“Аdd device” and connect to the Wi-Fi network created by your

Shelly device, i.e. . Open ShellyPlus1-f008d1d8bd68 (g. 1)

your Shelly App again and type in your home Wi-Fi credentials

(g. 2). After clicking “Next”, a menu will open allowing you to

choose the device which you want to include, or include any

found in the network. Shelly Plus is equipped with Bluetooth and

the last option in the menu allows you to “Search by Bluetooth”,

allowing for a quicker inclusion.

g. 1

g. 2

2. Android inclusion - From the hamburger menu on the main

screen of your Shelly App choose “Add device“. Then choose

your home network and type in your password (g. 3). After

that, pick the Shelly device you want to include. The name of

the device will be similar to: ShellyPlus1-f008d1d8bd68 (g.

4). Shelly Plus 1 is equipped with Bluetooth and a small Blue-

tooth icon will be available next to it, allowing for inclusion using

Bluetooth.

g. 3

g. 4

Step 3

Approximately 30 sec. after discovering any new devices оn

the local Wi-Fi network, а list will be displayed in the “Discov-

ered Devices” room by default.

Step 4

Select “Discovered devices” and choose the device you want

to include in your account.

Step 5

Enter a name for the device (in the Device Name eld).

Choose a “Room”, in which the device will be positioned and

controlled from. You can choose an icon or add a picture to

make it easier to recognize. Press “Save device”.

Step 6

To control Shelly devices only through the local network,

press “No”

Device Settings

After your Shelly device is added in the application, you can

control it, change its settings, and automate the way it works.

To switch the device on and off, use the ON/OFF button. For

device management, simply click on the device’s name. From

there you may control the device, as well as edit its appear-

ance and settings.

Timer - allows you to manage the power supply to the device

automatically. You may use:

• Auto OFF: After turning on, the relay output will automati-

cally shut down after a predened time (in seconds).

• Auto ON: After turning off, the relay output will be automat-

ically turned on after a predened time (in seconds).

• Schedule: This function requires a working connection to

the Internet. Shelly may turn on/off automatically at a pre-

denedned time and day throughout the week. Additionally,

Shelly may turn on/off automatically at sunrise/sunset, or at

a specied time before or after sunrise/sunset. You may add

up to 20 weekly schedules.

Internet

• Wi-Fi 1: Allows the device to connect to an available WiFi

network. After typing the details in the respective elds, press

Connect.

• Wi-Fi 2: Allows the device to connect to an available WiFi

network, as a secondary (backup), if your primary WiFi net-

work becomes unavailable. After typing the details in the

respective elds, press Set.

• Access Point: Congure Shelly to create a Wi-Fi Access

point. After typing the details in the respective elds, press

Create Access Point.

• Ethernet: Connect the Shelly device to a network using an

ethernet cable. This requires a device reboot! Here, you can

also set a static IP address.

• Cloud: Connection to the cloud allows you to control your

device remotely and to receive notications and updates.

• Bluetooth: Enable/disable.

• MQTT: Congure the Shelly device to communicate over

MQTT.

Application Settings

• Device Name: Set a name for your device.

• PIN lock: Restrict control of the Shelly device through the

web interface by setting a PIN code. After typing the details

in the respective elds, press “Restrict Shelly”.

• Input State Display: View the state of your input (on/off).

An option is available to add input state identier to the pow-

er button.

• Exclude from Event Log: Do not show events from this

device in the app.

• Consumption calculation: Tracks the total energy con-

sumed by the device.

- Exclude from total room consumption: Option to exclude

the device from the room’s total power consumption.

- Exclude from total account consumption: Option to ex-

clude the device from the account’s total power consump-

tion.

Webhooks

Use events to trigger http endpoints. You can add up to 20

webhooks.

Share the control of your device with other users.

Settings

• Input/Output Settings: These settings dene the way the

attached switch or button controls the output state. The

possible input modes are “button” and “switch”, and the relay

mode can be chosen depending on the preffered usage of

the device.

• Invert Switch: When the input is on, the output is off and

when the input is off, the output is on.

• Appliance Type: Choose from a given list what type of ap-

pliances your Shelly Plus 1 will be used with. The available

options are “Socket, Lights, Heating, Entertainment”, however

a custom one can be set as well.

• Firmware version: Shows your current rmware version. If a

newer version is available, you can update your Shelly device

by clicking Update.

• Geo Location And Time Zone: Set your time zone and

geo-location manually, or enable/disable automatic detec-

tion.

• Device Reboot: Reboot your Shelly Plus 1.

• Factory Reset: Remove Shelly Plus 1 from your account

and return it to its factory settings.

• Device Information: Here you can view the ID, IP and other

settings of your device. Upon clicking “Edit device”, you can

change the room, name or image of the device.

THE EMBEDDED WEB INTERFACE

Shelly can be set and controlled through a browser.

Abbreviations used

Shelly ID - the unique name of the device. It consists of

12 hexadecimal characters, the base MAC address of the

device. It may include numbers and letters, for example

f008d1d8bd68.

SSID - the name of the Wi-Fi network, created by the device,

for example .ShellyPlus1-f008d1d8bd68

Access Point (AP) - the mode in which the device creates its

own Wi-Fi connection point with the respective name (SSID).

Wi-Fi - the mode in which the device is connected to another

Wi-Fi network.

Initial inclusion

Step 1

Install Shelly following the connection diagrams described in

the “User and Safety Guide” with the device, and place it into

the breaker box. After turning the power on, Shelly Plus 1 will

create its own Wi-Fi network (AP).

⚠WARNING! If you don’t see the Wi-Fi -> AP, please fоllow

Step 1 from the Device Inclusion section of this guide.

Step 2

Shelly Plus 1 has created its own Wi-Fi network (AP), with

name (SSID) such as ShellyPlus1-f008d1d8bd68. Connect

to it with your phone, tablet, or PC.

Step 3

Type 192.168.33.1 into the address eld of your browser to

load the web interface of Shelly.

General - Home Page

This is the home page of the embedded web interface. If it

has been set up correctly, you will see information about the

state of the switch (ON/OFF), as well as functionality menus.

Channel settings - general settings about the channel. Here

you can congure I/O settings, channel’s state, channel’s

name, consumption type.

Timers - same as in the “Shelly Device Settings” section,

Timers.

Schedules - same as in the “Shelly Device Settings” section,

Schedules.

Webhooks - use events to trigger http endpoints. You can add

up to 20 webhooks.

Device - Here you can see your rmware version and update,

reboot, factory reset, and set your location and time zone.

• Authentication - you can set credentials to lock your device

or change already existing credentials.

Networks - congure Wi-Fi, AP, Cloud, Bluetooth, MQTT set-

tings.

Termékspecifikációk

Márka:	Shelly
Kategória:	okos otthon
Modell:	1 Plus PM

Szüksége van segítségre?

Ha segítségre van szüksége Shelly 1 Plus PM, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek

Az Ön neve*

Az Ön e-mail címe*

Írja ide kérdését

Útmutatók okos otthon Shelly

Shelly BLU Button 1 Útmutató

27 Március 2025

Shelly Qubino Wave 1PM Mini Útmutató

1 Október 2024

Shelly Wave Shutter Útmutató

1 Szeptember 2024

Shelly Wave i4 Útmutató

1 Szeptember 2024

Shelly Wave Pro 2 Útmutató

1 Szeptember 2024

Shelly Plus Un Útmutató

1 Szeptember 2024

Shelly Pro Dimmer 1PM Útmutató

1 Szeptember 2024

Shelly Wave Pro 1PM Útmutató

1 Szeptember 2024

Shelly Wave Pro 2PM Útmutató

1 Szeptember 2024

Shelly Pro Dimmer 2PM Útmutató

1 Szeptember 2024

Útmutatók okos otthon

Legújabb útmutatók okos otthon

Busch-Jaeger 6151-0-0217 Útmutató

29 Március 2025

Busch-Jaeger 6151-0-0218 Útmutató

29 Március 2025

Tesla MS360 Útmutató

29 Március 2025

Sommer SOMweb Útmutató

19 Március 2025

EZVIZ T33 Útmutató

18 Március 2025

Niko 350-20071 Útmutató

15 Január 2025

WiZ Smart Útmutató

14 Január 2025

EZVIZ DL03 Útmutató

14 Január 2025

EZVIZ DL04 Pro Útmutató

14 Január 2025

EZVIZ CP5 Útmutató

14 Január 2025
