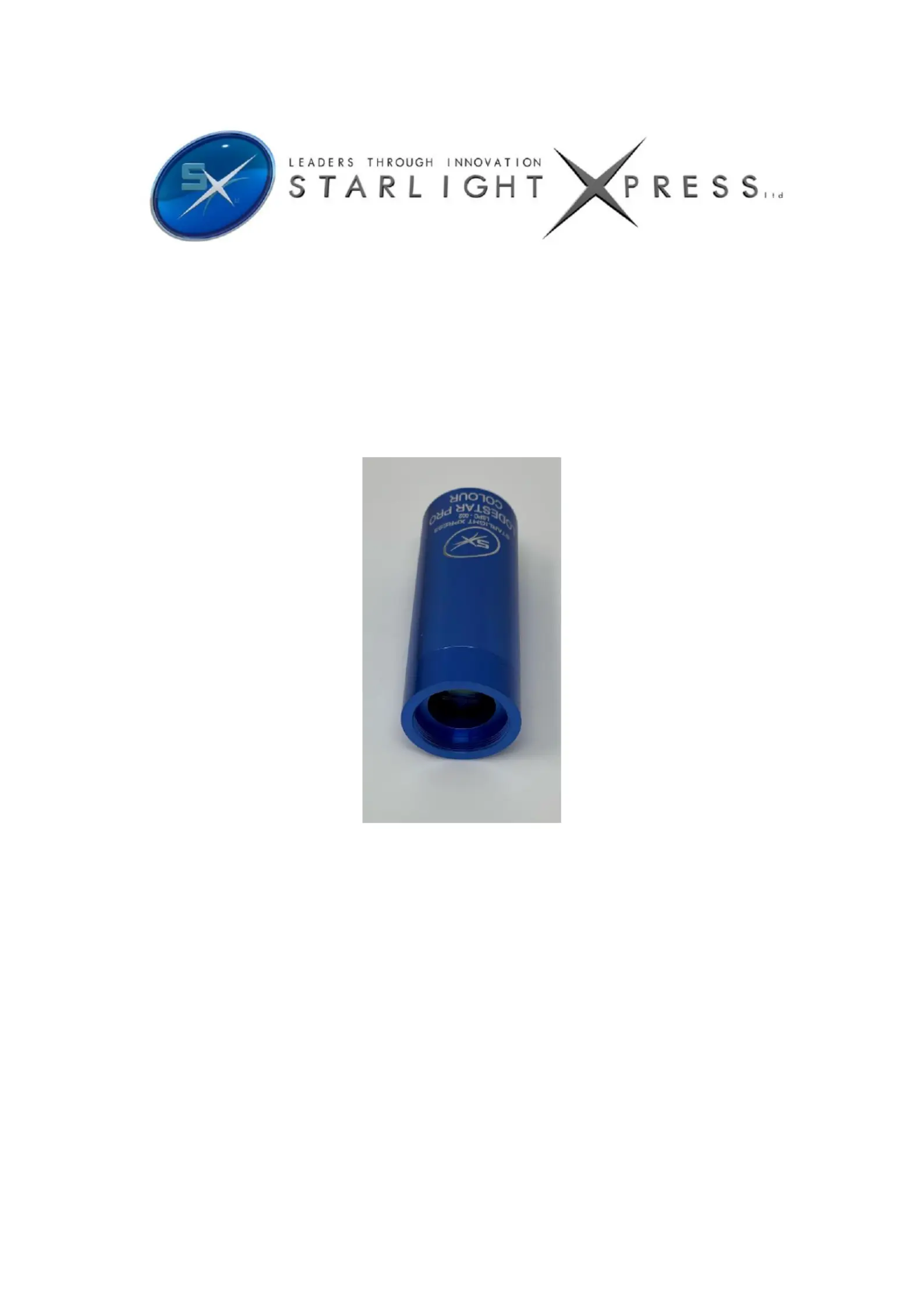

Lodestar PRO C handbook Issue 2, February 2024

Handbook for the SX ‘Lodestar PRO C’

Imaging and Guiding Camera

Thank you for purchasing a Starlight Xpress ‘’ camera. We hope that you will be Lodestar PRO Colour

very pleased with the performance of this product.

The Lodestar PRO C is an updated version of the very popular ‘Lodestar’ and is a very compact Colour

imager/guider, which is powered and operated via a single USB2.0 computer connection. It also

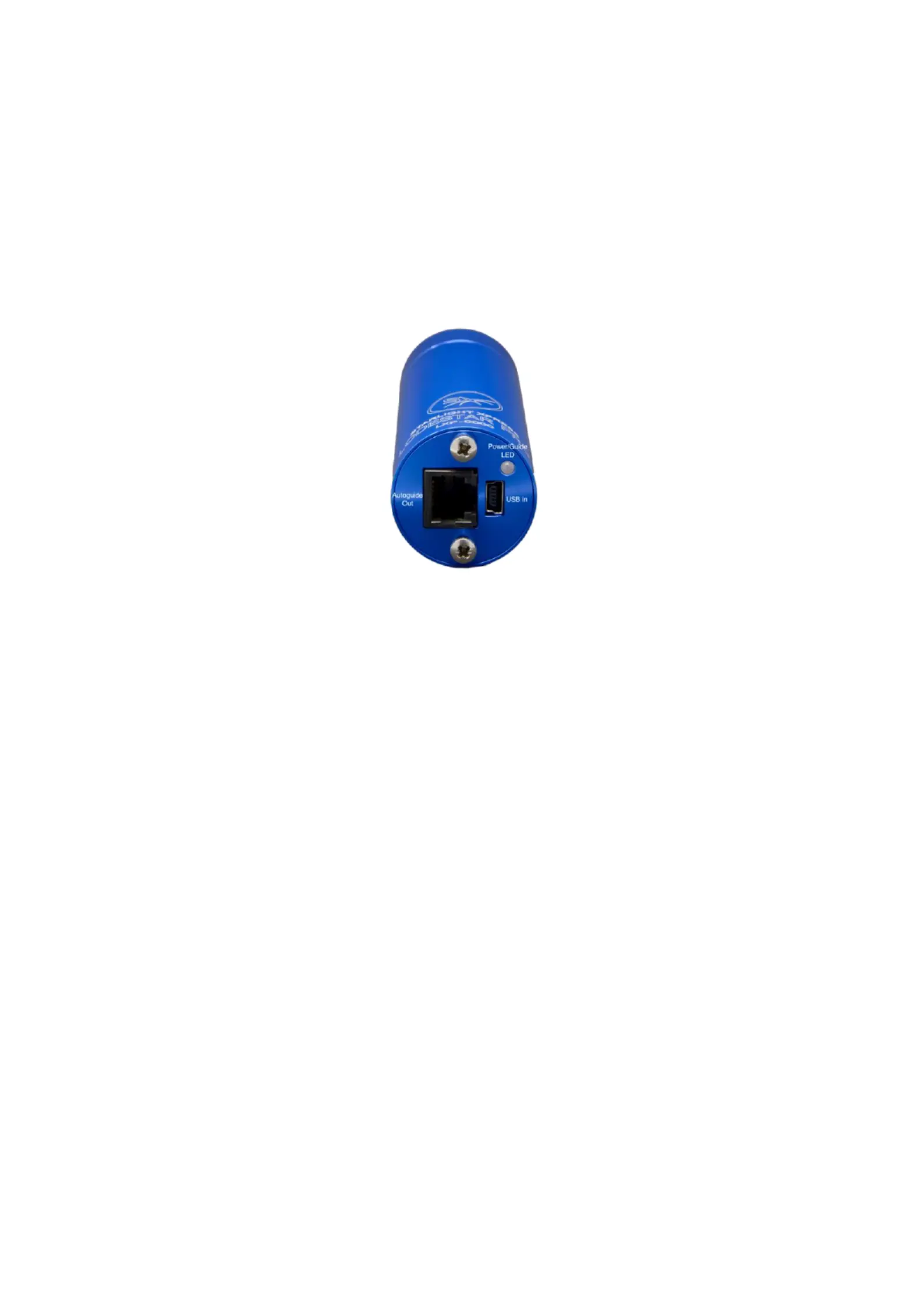

provides an opto-isolated output connection for direct control of most mounts, via their ‘Autoguider’

sockets. This output is compatible with the ‘ST4’ style of RJ12 connection and supplies 4 ‘pull down’

direction lines and a common return. Alternatively, you may send the mount control signals via a

serial connection from the guider control computer. The Lodestar PRO C utilises a very sensitive Sony

‘ExView2’ CCD (the ICX829AK) with an array of 752 x 580 pixels in a ‘halfinch’ format. Although the -

chip is not cooled, it has a very low dark signal and very little readout noise, so it can be used to guide

on faint stars that are well beyond the reach of webcams and CMOS chip based guide cameras.
