Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: November 6, 2021 12:28 AM

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Product ID

M2-USB-C-NVME-SATA

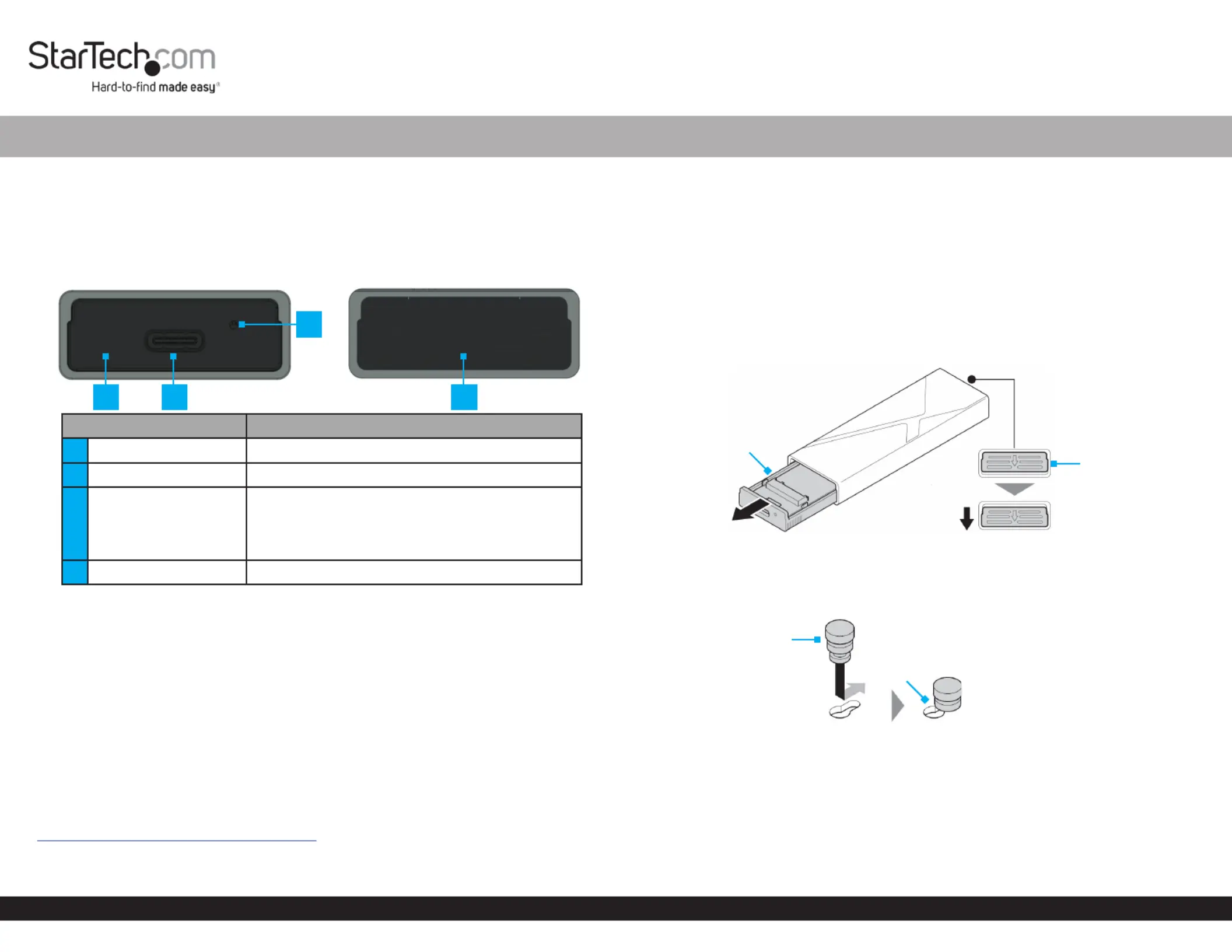

Product Diagram

Front Back

ComponentFunction

1Drive Tray Cover• Enclosure component

2USB-C Port• Connect the to the Enclosure Host Computer

3

Power and Activity

LED Indicator

• Solid BlueEnclosure indicates the is receiving

power

• Flashing BlueDrive indicates read/write

activity

4Drive Tray Release Tab• Pull down to eject the Drive Tray

Package Contents

• M.2 SSD Enclosure x 1

• USB-C to USB-C Cable x 1

• USB-C to USB-A Cable x 1

• Thermal Pad x 1

• SSD Fastener Pegs x 2

• Quick-Start Guide

Product Information

For the latest product information, technical specications, manuals, and Declarations

of Conformance, please visit:

www.StarTech.com/M2-USB-C-NVME-SATA

M.2 SATA/NVMe SSD Enclosure - Tool-less - USB 3.2 (10Gbps) w/ USB-C and USB-A Cables

Product Requirements

• SSD x 1

• M-Key and B+M-Key PCI Express M.2 NVMe and M.2 SATA

• 30 mm, 42 mm, 60 mm, or 80 mm Drive Length

Installation

Install a Drive

Warning! Handle with care.Drives

1. Pull the down to eject the . (Figure 1)Drive Tray Release Tab Drive Tray

2. Carefully pull the out of the . Drive TrayEnclosure

3. Insert one into the that corresponds with the SSD Fastener PegDrive Tray Hole

length of the and slide the into the . (Figure 2)DriveSSD Fastener PegNotch

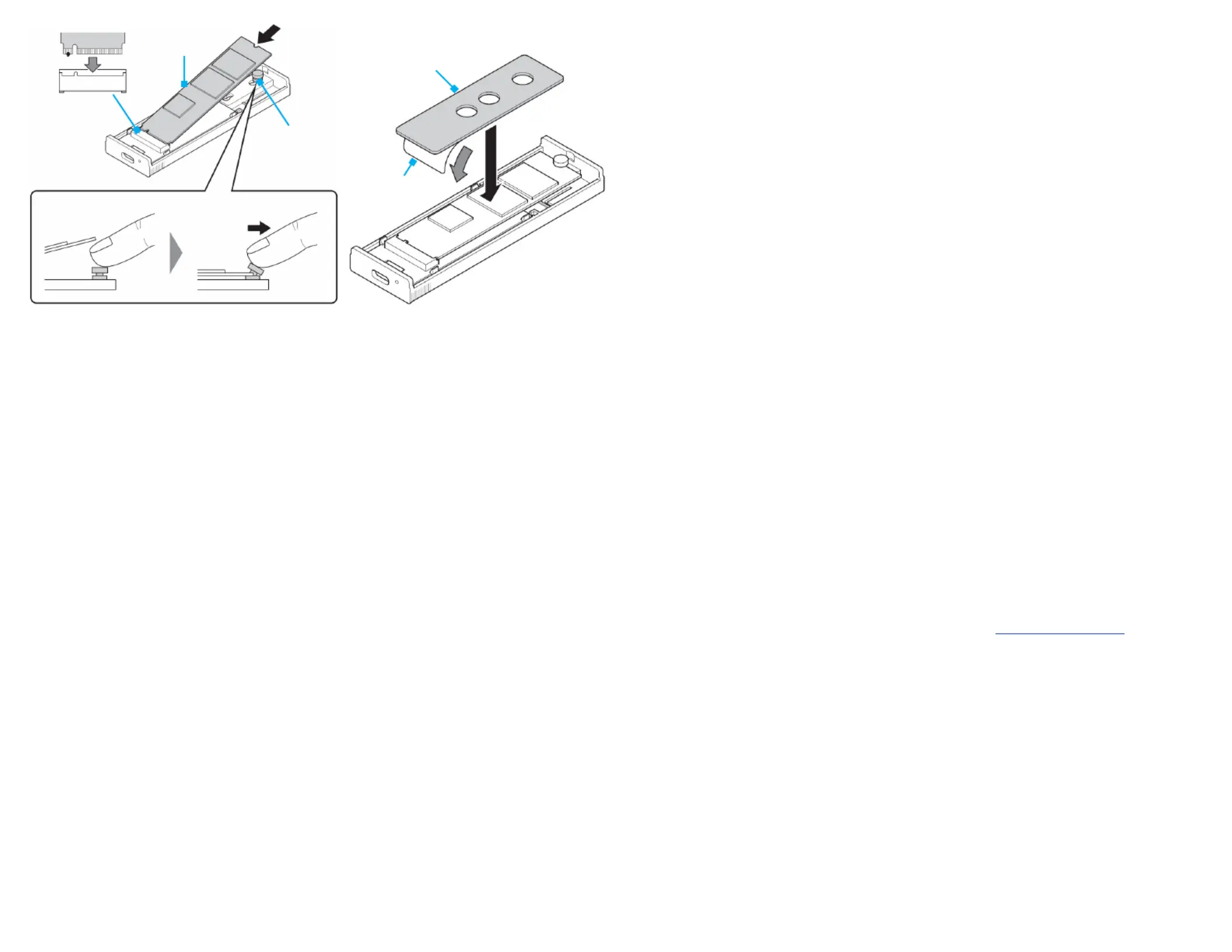

4. Gently slide the on the at a 30-degree angle into the ConnectorDrive

corresponding , located on the . (Figure 3)Drive ConnectorDrive Tray

Note: The on the is keyed so that it only ts one way.Connector Drive

5. Pull the away from the , lightly push the down into SSD Fastener PegDriveDrive

position on the , and release the . (Figure 3)Drive TraySSD Fastener Peg

1

3

24

Figure 2

SSD Fastener Peg

Notch

Figure 1

Drive Tray

Drive Tray

Release Tab
