Oldal 1/3
Features

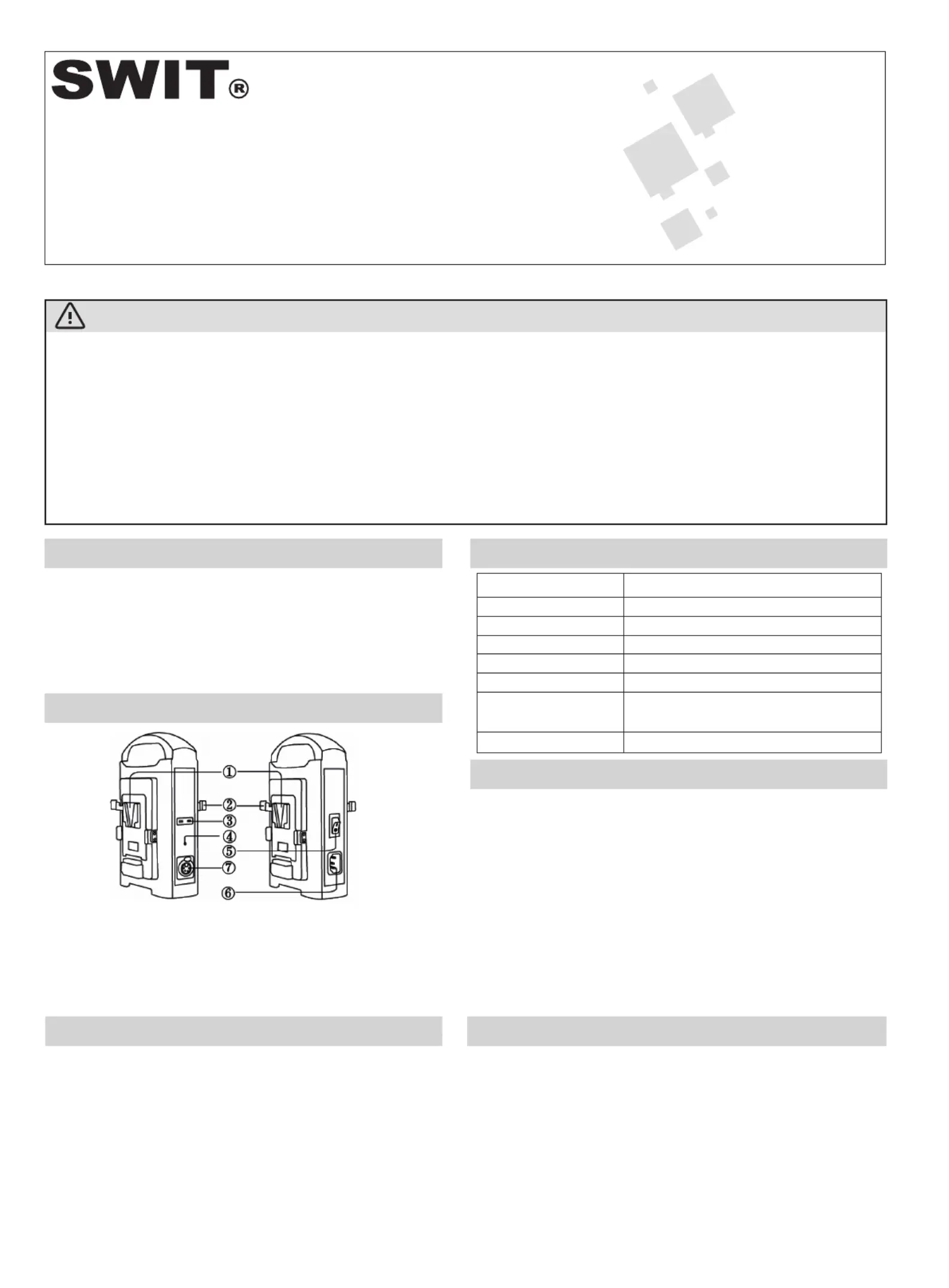

Product appearance
Charging Adapting output
Specifications
Compatible Batteries
Lithium Battery Charger
S-3822A/S
Ver:B
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
USER MANUAL
S W I T E l e c t r o n i c s Co . , LT D.
Congratulations on your purchase of this product. Please read this user manual carefully.
Warning
Never expose the battery charger to rain or moisture.
Never attempt to open the battery charger, please contact the
local agent if have problems.
Never use metal or other conductors to touch the inside of the
battery charger.
Never short-circuit the battery charger terminals.
Please make sure the voltage range is fit for the battery charger.
Please use the power adapter provided by the manufacturer in
order to avoid damage.
Never use the battery charger if it is already damaged.
Only limited to charge specified battery(ies), it may cause danger if
charge other battery(ies) due to incompatibility problem.
Only work in the temperature between 0 -45
Keep the terminals clean and ensure the reliable connection.
It is normal phenomenon that the battery charger may become warm in use.
Please unplug the power lead if the battery charger is not used for a
long time.
Do not cover the cooling vent.
Please do not put the battery charger in unstable place, it may fall and
cause serious damage.
Store the battery charger in cool, dry and clean place.
Caution
1. 2-channel independent charging and controlling system, capable
of 3A charging two batteries simultaneously.
2. One channel AC-DC adaptor output via 4-pin XLR, maximum
power output reaches 90W.
3. LED lights indicate the real-time working status.
Two charging channels are independent channels and can charge
simultaneously.
1. Connect with power lead, turn on the power switch
2. Mount battery(ies) onto the charging channel(s), and it starts to
charge the mounted battery(ies) simultaneously. The LED light(s)
of the related charging channel(s) will indicate like these
Red: the battery capacity is below 100%
Green: fully charged
Redash: the charging may have problem
3. When full charged, press battery release button and take out
the battery(ies).
The S-3822A/S offers one channel 4-pin XLR adapting output.
1. Connect with power lead, turn on the power switch, and the
adapting LED indicator will light on.
2. Connect the adapting output to power consuming equipment;
Note:
1. When adapting output, please make sure the voltage and power of
the power consuming equipment meet the requirement (15V, 6A).
2. S-3822A/S does not support charging and adapting output at the
same time. If channel(s) are inserted with battery(ies) during
charging, there will be no DC output. When no battery is mounted,
there will be adapting output.
Charging channel (V-mount/Gold mount)
Battery release button
Charging LED indicator
Adapting LED indicator
Input
Power
Charging Output
Adapting Output
Working Temperature
Working Humidity
100 240VA, 50/60Hz
138W(Max)
DC 16.8V, 3A(Max )×2
DC 15V, 6A(Max)
0 +45
10% 90%
228mm×140mm×86mm(S-3822A)
228mm×140mm×102mm(S-3822S)
Appx 1.0kg
Weight
Dimension
S-3822A: SWIT Gold mount battery (Including: S-8083A, 8082A,
8192A, 8152A, 8113A, 8183A, 8110A, 8180A, D-8111A, 8150A, 8161A,
PB-S220A, S-98A. Capacity: 80Wh-240Wh, Vmax: 16.9V, Ichr: 3A-6A)
S-3822S: SWIT V-mount battery (Including: S-8083S, 8082S, 8192S,
8152S, 8113S, 8183S, 8110S, 8180S, D-8111S, 8150S, 8161A, 8320S,
8340S, 8360S, PB-S220S, S-98S. Capacity: 80Wh-240Wh, Vmax: 16.9V,
Ichr: 3A-6A)
SONY V-mount battery (Including: BP-GL95, GL65, L60S,
IL75, L40A, L90A, L60A
Power switch
Power input socket
4-PIN XLR DC output socket
製品特徴

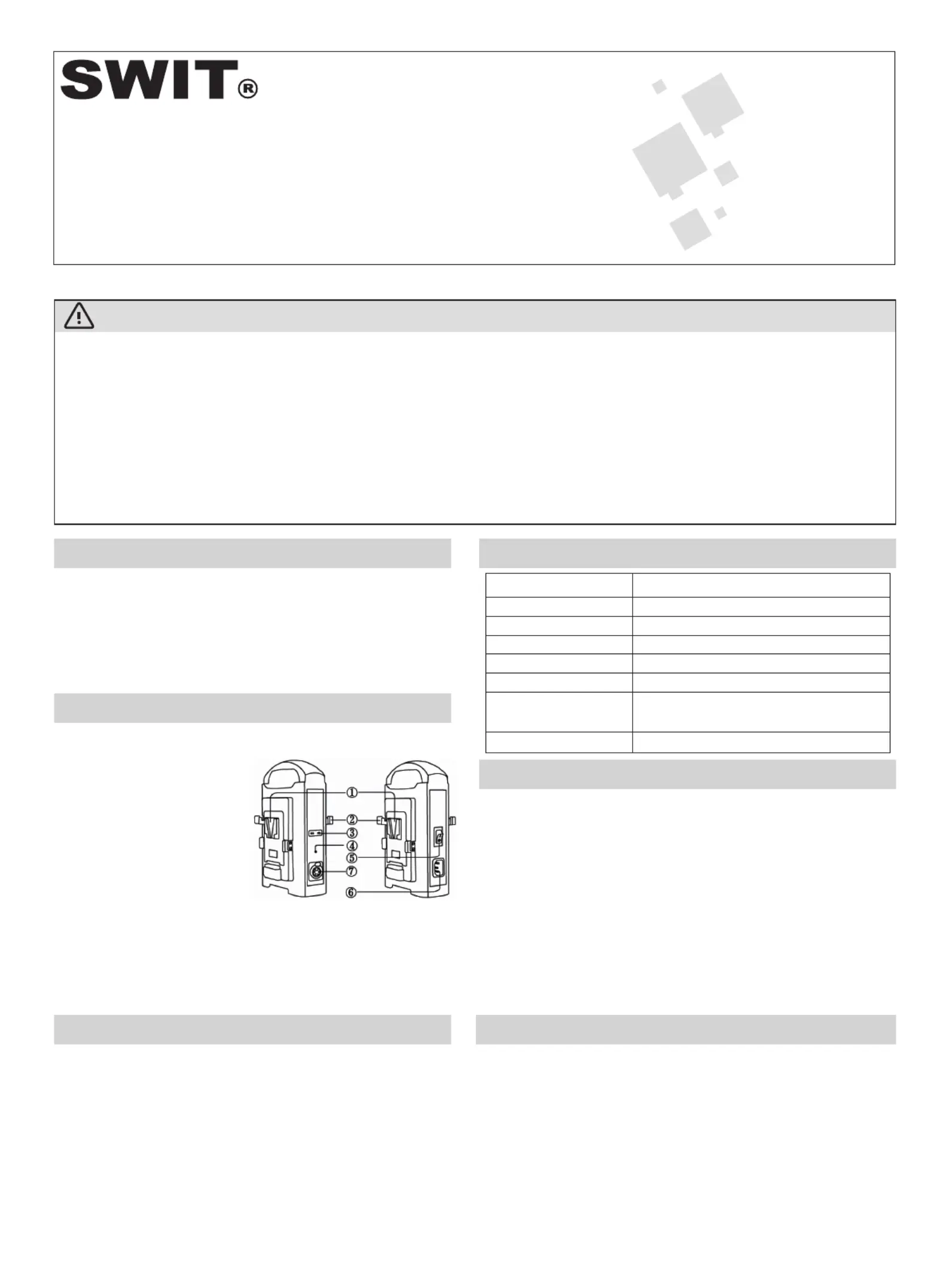

外観
充電機 DCOUT機能
スペ
対応
チウムイオンバッテリーチージ
S-3822A/S
Ver:B
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
取扱説明書
南京視威電子科技股份有限公司
S-3822A/Sをお買きあます使ては本ださ
警告
水に濡れる可能性のある場所での保管や使用をしない。
分解をしない。
属物を充器の内に入れない。
器の出力端子をショートさせない。
定格入力圧以外の源を使わない。
付属の ケーブルを使ってください。AC
した充器を使わない。
指定したバッテリー以外の充は、事故の原因に繋がる恐れがあります
ので絶対に行わないでください。
使用温度は0℃45℃を厳守して下さい。
池と充器の極の接触状態をチェックしてください。
中は本体温度が上昇しますが、正常現です。
に使用しない場合はコンセントから抜いてください。
放熱口を塞がらないでください。
落下で故する恐れがありますので、安定した場所でお使いください。
乾燥した温度の低いところでお使いください。
注意事
1. 独立した2チャル同時急トロールを行
、同時に二本流チャージでます
2. XLR出力一系完備
3. リアルインジケーLED
立し チャンネル同コントロルを行い2
時に二本池に流チャージできま
1. AC100~240V ONに繋ぎ、スイーを る。
2. LEDを充にマトすると、充電開ます
ンジケーターは、
ッド:電池容100
リー完了
ッド点滅電障
3. 了後、バリーリリースノブしながらバッ
リーを取り外してさい
機は出力一系統がます、XLR4pinになります。
1.AC100~240V繋ぎイッチーをONす、POWER
ONインジケーター灯する。
2.XLR 4pinブルを使い、接続繋いでお使いくだい。
注意
1.DC OUTは最15V6Aです、接の消費電力を確認てくださ
2.S-3822A/S区はしなのDC OUTはでません。
先です、中にDC OUTはされ。DC OUTを使う
は、をはずしださい。
Vマウントプレー
バッテリーリリー
インジケータ
POWER ONインジケータ
スイッチ
ケーブル挿し
DC OUTXLR4pin
- PSE認証コード
- プラグ/コネクタ125V AC
~
7A
ラグJET0876-43001-1006
ードJET0876-12009-1004
ネクJET0876-43004-1004
入力
費電
チャージャー出力
DC OUT
動作温度
動作湿度
寸法
100240VA,50/60Hz
138W(Max)
DC 16.8V3A(Max )×2チャンネル
DC 15V6A(Max)
0℃+45℃
10%90%
228mm×140mm×86mm(S-3822A)
228mm×140mm×102mm(S-3822S)
約1.0kg
S-3822A: SWIT ゴー ッテリー(S-8083A, 8082A, 8192A, ウン
8152A, 8113A, 8183A, 8110A, 8180A, D-8111A, 8150A, 8161A, PB-S220A,
S98A を含む、容: 80Wh-240Wh,圧最大: 16.9V, 充電電:
3A-6A)
S-3822S: SWIT Vマントバッテリ(S-8083S, 8082S, 8192S, 8152S,
8113S, 8183S, 8110S, 8180S, D-8111S, 8150S, 8161A, 8320S, 8340S, 8360S,
PB-S220S, S98S を含、 容: 80Wh-240Wh, 受電電圧最大: 16.9V,
: 3A-6A)
SONY Vマウントバリー (BP-GL95, GL65, L60S, IL75,
L40A, L90A, L60A
質量
火災や感電の恐れがありますので、下記のことを厳守ください!
리튬 배터리충전기
S-3822A/S
Ver:B
사용자 설명서
S W I T E l e c t r o n i c s C o . , L t d .
충전
호환 배터리
제품 제원
출력 단자

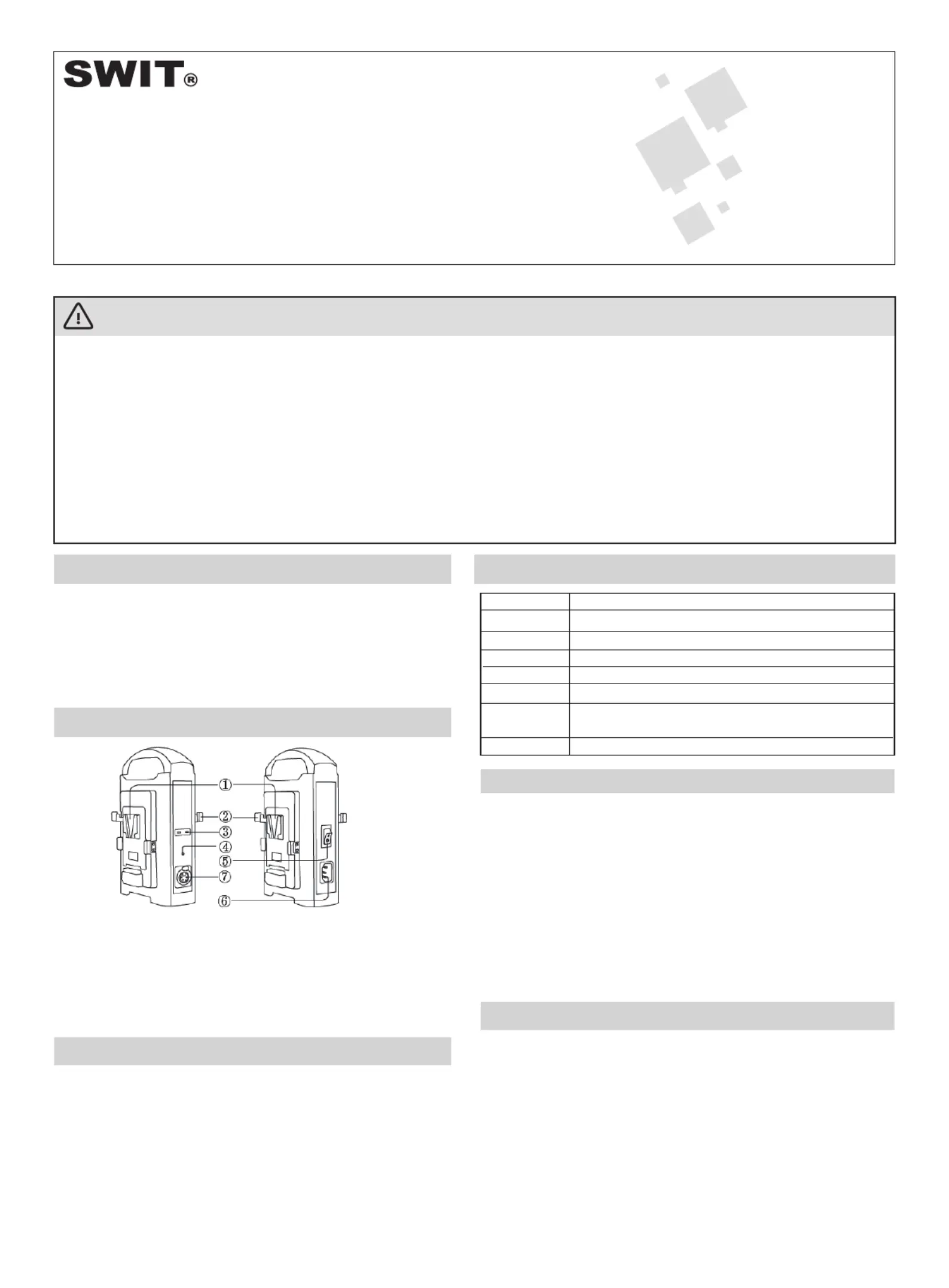

제품 외관 사양
제품 특징
. .
주의사
1. 2 , , 2
3A .
2. 4 XLR AC-DC 1, 90W
.
3. LED .
KC .
- /:250VAC
~
10A
- : VDE 40039523
S-3822A: SWIT (S-8083A, 8082A, 8192A, 8152A,
8113A, 8183A, 8110A, 8180A, D-8111A, 8150A, 8161A, PB-S220A,
S98A ): 80Wh-240Wh, : 16.9V, : 3A-6A)
S-3822S: SWIT V- (S-8083S, 8082S, 8192S, 8152S,
8113S, 8183S, 8110S, 8180S, D-8111S, 8150S, 8161A, 8320S,
8340S, 8360S, PB-S220S, S98S ): 80Wh-240Wh, :
16.9V, : 3A-6A)
SONY V- (BP-GL95, GL65, L60S, IL75, L40A,
L90A, L60A
1. , .
2.() , ()
. LED
.
: 100%.
: .
: .
3. ()
.
S-3822A/S 1 4 XLR .
1. , LED
.
2. .
:
1. ,
. (15V, 6A).
2.S-3822A/S
. () , DC
. ,
.
:+82 2 534 3141
:+82 2 534 3145
http://www.swit.cc
이메일: contact@swit.cc
전압
전력
충전 출력
외부 출력
작동가능 온도
작동가능 습도
크기
중량
100240VA, 50/60Hz
138W(Max)
DC 16.8V, 3A(Max )×2
DC 15V, 6A(Max)
0+45
10%90%
228mm×140mm×86mm(S-3822A)
228mm×140mm×102mm(S-3822S)
1.0kg
.
.
.
.
.
.
.
.
() .
()
.
0~45. .
, .
.
.
.
.
.
.
.
(V-/)
LED
LED 4 XLR DC
