DUAL VOLTAGE PROCESSOR - MODEL 257t

Eurorack 200 series

Model 257 Dual Control Voltage Processorconsists

of two identical sections, each of which permits

several applied control voltages to define a single

output voltage according to the equation:

(Va * K) + ((Vb * (1-M)) + (Vc * M)) + Voset = V_out

The algebraic manipulations possible with this

module include addition, subtraction, scaling,

inversion, and multiplication. Also incorporated is the

capability of using one control voltage (M) to transfer

control from one applied voltage (V_b) to another

(V_c).

Functions

- Attenuverter

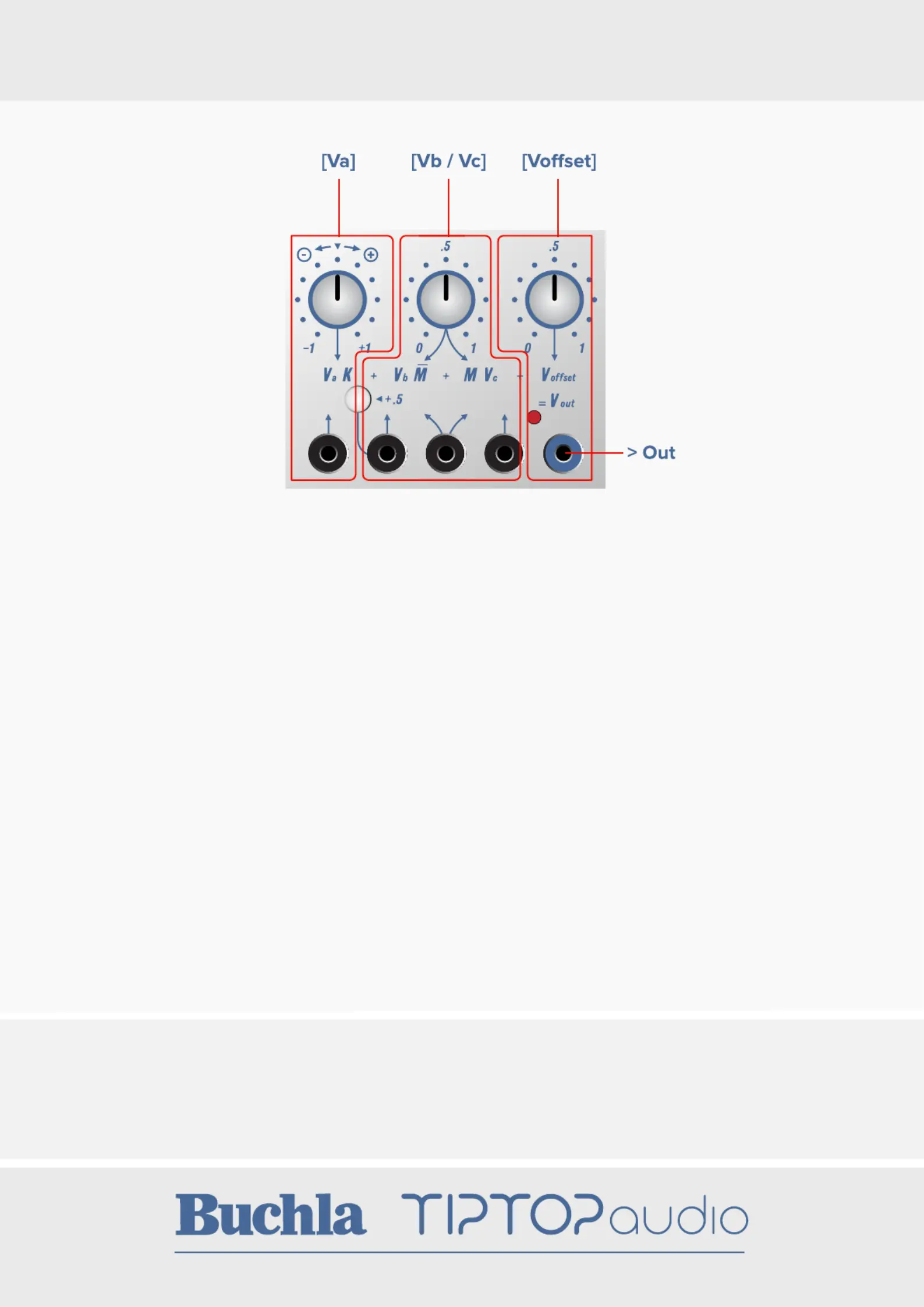

Va is the voltage input for attenuverter (left jack on the panel)a

K V knob can scale the incoming

a voltage either positively or negatively

- Crossfader

V

b is the voltage input for the left side of the crossfader (second jack from the left)b

+.55V switch adds volts to the input of

b

Vcc is the voltage input for the right side of the crossfader (fourth jack from the left)

MV scales

b from to based on the position of knob10 M

MV scales

c from to based on the position of knob01 M

The middle input at can crossfade between CV M/MV

bc and V(third jack from the left)

The knob and added together to control crossfade positionMM CV

- Oset

V

osetabc Adds volts to any combination of 0 - 10V + V + V

- Output

V

outis the combined voltage of the attenuverter, crossfader and oset (right jack on the panel)

BUCHLA & TIPTOP AUDIO

-1+10101

.5.5

-1+10101

.5.5

VOLTAGE PROCESSOR MODEL 257
