Oldal 1/28
m _ _ _ ,_m_ r

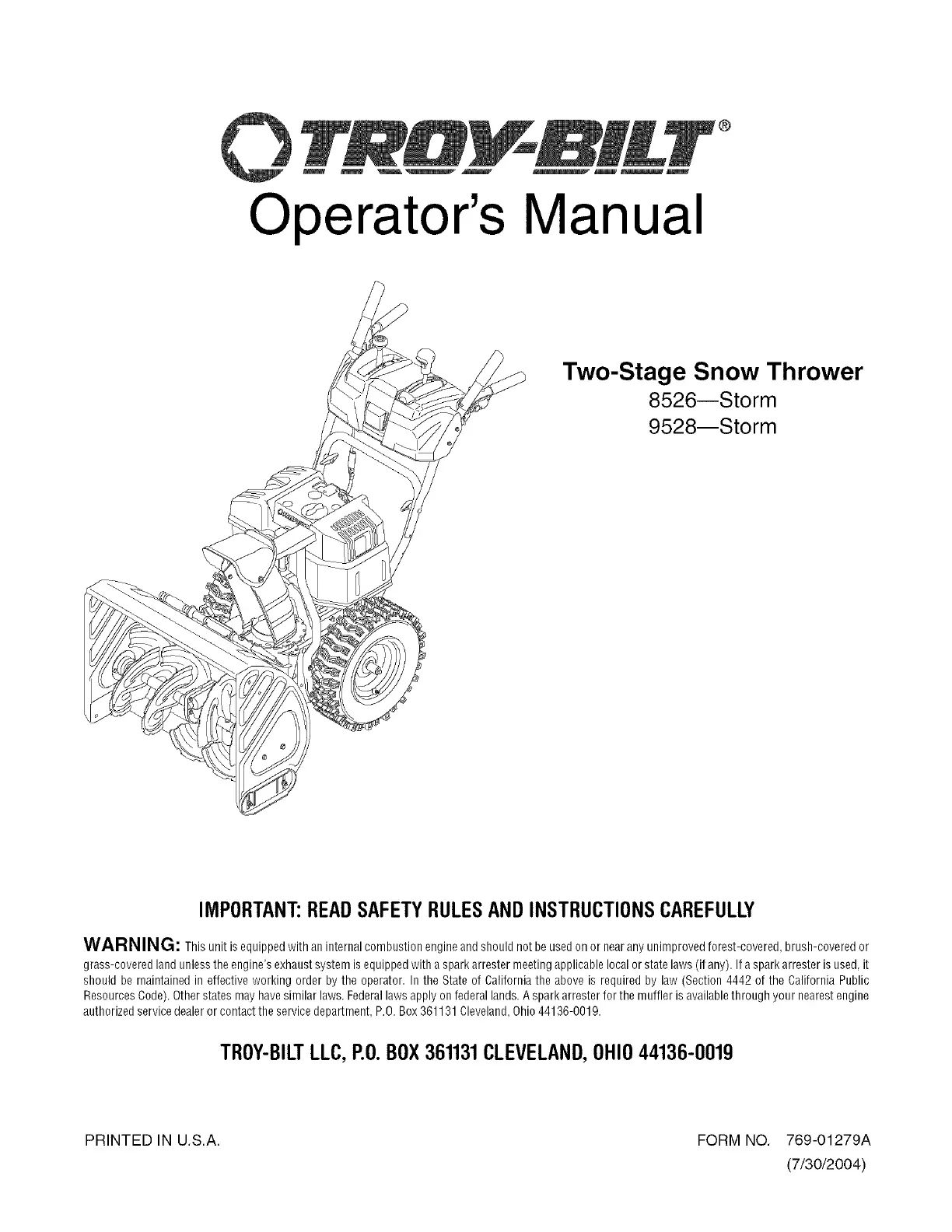

Operator's Manual
Two-Stage Snow Thrower
8526--Storm
9528--Storm
J
IMPORTANT:READSAFETYRULESANDINSTRUCTIONSCAREFULLY
WARNING: This unit isequippedwith an internal combustion engineand should not be usedon or nearany unimproved forest-covered, brush-covered or
grass-covered land unless theengine's exhaust system isequipped with a spark arrester meeting applicable local or state laws(if any). If aspark arrester isused, it
should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public
ResourcesCode). Other states may havesimilar laws. Federallaws apply on federal lands. A spark arrester for the muffler isavailable through your nearest engine
authorized service dealer or contact the service department, P.0. Box 361131 Cleveland,Ohio 44136-0019.
TROY-BILTLLC,P.O.BOX361131CLEVELAND,OHIO44136-0019
PRINTED IN U.S.A. FORM NO. 769-01279A
(7/30/2004)

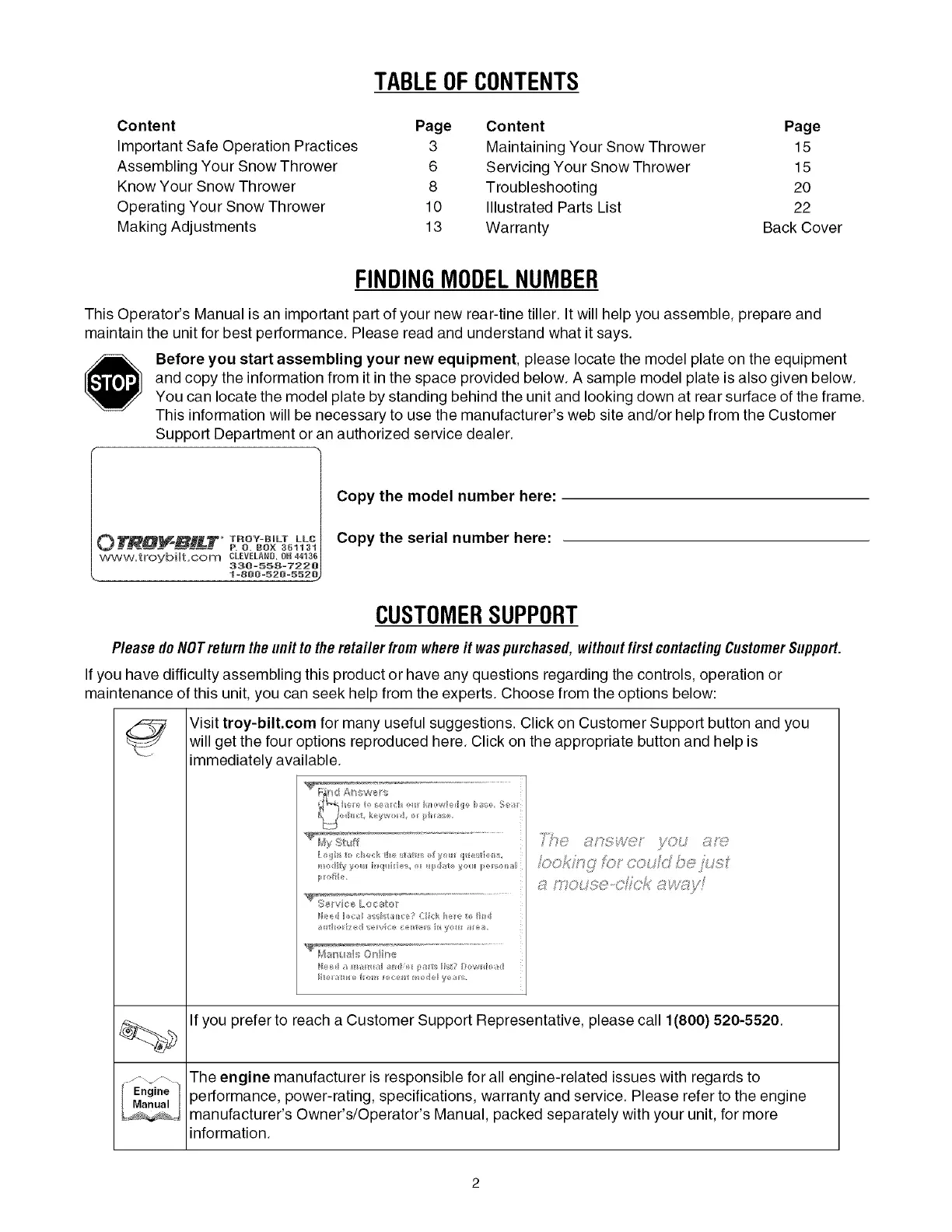

Content
ImportantSafeOperationPractices
AssemblingYourSnowThrower
KnowYourSnowThrower
OperatingYourSnowThrower
MakingAdjustments
TABLEOFCONTENTS
Page
3
6
8
10
13
Content Page
Maintaining Your Snow Thrower 15
Servicing Your Snow Thrower 15
Troubleshooting 20
Illustrated Parts List 22
Warranty Back Cover
FINDINGMODELNUMBER
This Operator's Manual is an important part of your new rear-tine tiller. It will help you assemble, prepare and
maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the equipment
and copy the information from it in the space provided below. A sample model plate is also given below.
You can locate the model plate by standing behind the unit and looking down at rear surface of the frame.
This information will be necessary to use the manufacturer's web site and/or help from the Customer
Support Department or an authorized service dealer.
P. O. BOX 361131
www.troybilt.com CLEVELAND, OH 44136
33@-558-7228
1-800-520-552_
Copy the model number here:
Copy the serial number here:
CUSTOMERSUPPORT
Pleasedo NOTretum thel/nit totheretailer fromwhereit waspurchased,withoutfirstcontactingCustomerSupport.
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, you can seek help from the experts. Choose from the options below:
Visit troy-hilt.corn for many useful suggestions. Click on Customer Support button and youwill get the four options reproduced here. Click on the appropriate button and help is
immediately available.
Engine
If you prefer to reach a Customer Support Representative, please call 1(800) 520-5520.
The engine manufacturer is responsible for all engine-related issues with regards to
performance, power-rating, specifications, warranty and service. Please refer to the engine
manufacturer's Owner's/Operator's Manual, packed separately with your unit, for more
information.

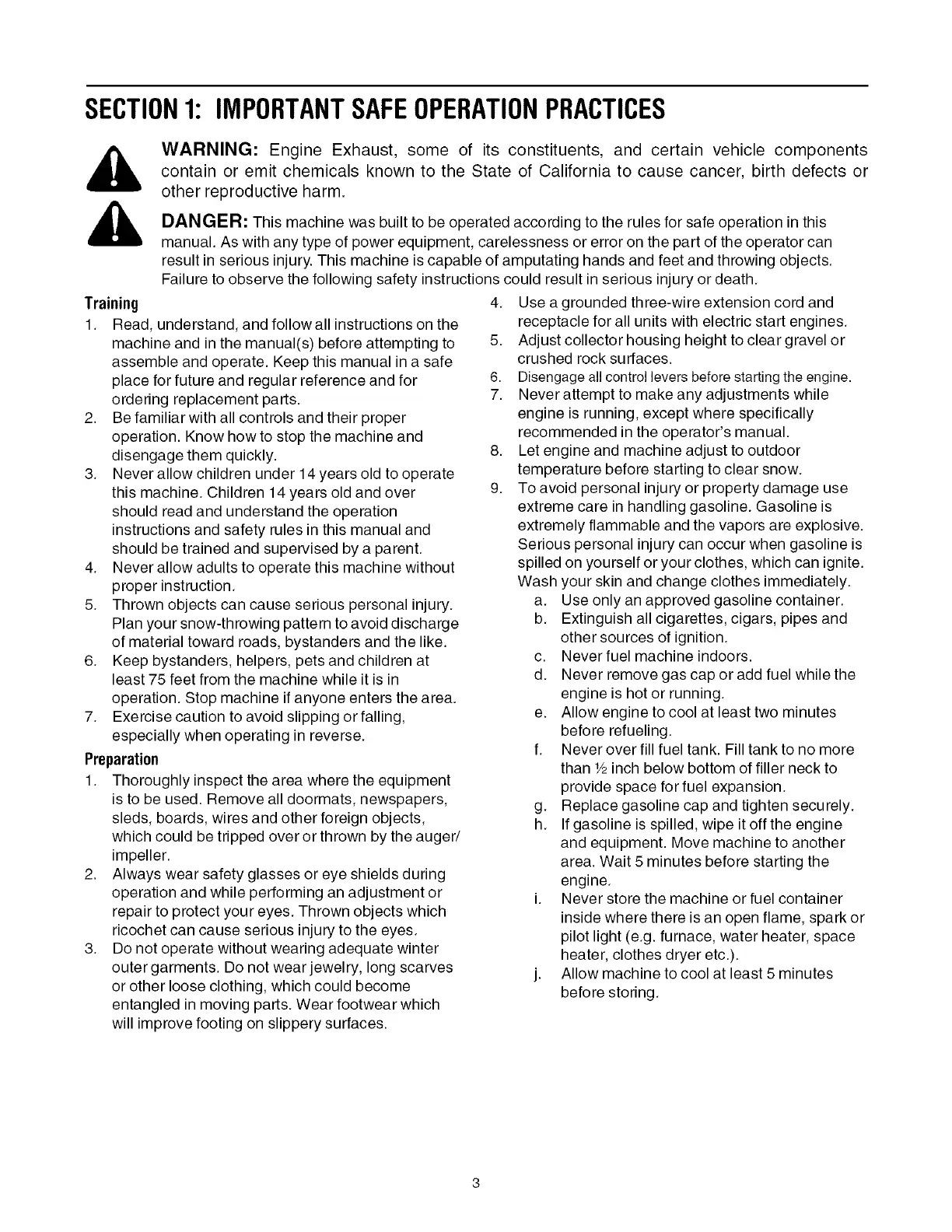

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm.
DANGER: This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.
Training
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe
place for future and regular reference and for
ordering replacement parts.
2. Be familiar with all controls and their proper
operation. Know how to stop the machine and
disengage them quickly.
3. Never allow children under 14 years old to operate
this machine. Children 14 years old and over
should read and understand the operation
instructions and safety rules in this manual and
should be trained and supervised by a parent.
4. Never allow adults to operate this machine without
proper instruction.
5. Thrown objects can cause serious personal injury.
Plan your snow-throwing pattern to avoid discharge
of material toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at
least 75 feet from the machine while it is in
operation. Stop machine if anyone enters the area.
7. Exercise caution to avoid slipping or falling,
especially when operating in reverse.
Preparation
1. Thoroughly inspect the area where the equipment
is to be used. Remove all doormats, newspapers,
sleds, boards, wires and other foreign objects,
which could be tripped over or thrown by the auger/
impeller.
2. Always wear safety glasses or eye shields during
operation and while performing an adjustment or
repair to protect your eyes. Thrown objects which
ricochet can cause serious injury to the eyes.
3. Do not operate without wearing adequate winter
outer garments. Do not wear jewelry, long scarves
or other loose clothing, which could become
entangled in moving parts. Wear footwear which
will improve footing on slippery surfaces.
4.
5.
6.
7.
8.
9.
Use a grounded three-wire extension cord and
receptacle for all units with electric start engines.
Adjust collector housing height to clear gravel or
crushed rock surfaces.
Disengage all control levers beforestarting the engine.
Never attempt to make any adjustments while
engine is running, except where specifically
recommended in the operator's manual.
Let engine and machine adjust to outdoor
temperature before starting to clear snow.
To avoid personal injury or property damage use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
Serious personal injury can occur when gasoline is
spilled on yourself or your clothes, which can ignite.
Wash your skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the
engine is hot or running.
e. Allow engine to cool at least two minutes
before refueling.
f. Never over fill fuel tank. Fill tank to no more
than Y2inch below bottom of filler neck to
provide space for fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine
and equipment. Move machine to another
area. Wait 5 minutes before starting the
engine.
i. Never store the machine or fuel container
inside where there is an open flame, spark or
pilot light (e.g. furnace, water heater, space
heater, clothes dryer etc.).
j. Allow machine to cool at least 5 minutes
before storing.
