Oldal 1/3
Issue 1
1 947967
Page
Out
Valcom Page
Control
(Tip/A)
(-24Vdc)
(Gnd)
Valcom -24 Vdc
Power Supply
One-Way
Amplified
Speaker
INSTALLATION INSTRUCTIONS FOR
V-1920C
INTRODUCTION
The Valcom V-1920C are self-amplified and
capable of reproducing voice paging as well as
background music. The V-1920C features a
removable volume control knob. With the knob
removed, the volume may be adjusted by
screwdriver through the center hole on the
grille. The speakers require -24VDC, 50mA (1-
power unit). The speaker is 8 inch.
DIMENSION/ WEIGHT
1 .5 L x 11.5 W x 3.0 D 1
(29.2cm L x 29.2cm W x 7.62cm D)
2.6 lbs. (1.18kg)
NOTE: Do not connect this speaker directly
to a 25/70/100 Volt amplifier as damage to
both the amplifier and speaker may occur.
A V-1095 may be used to allow the use of
Valcom self-amplified speakers on 70V
speaker lines.

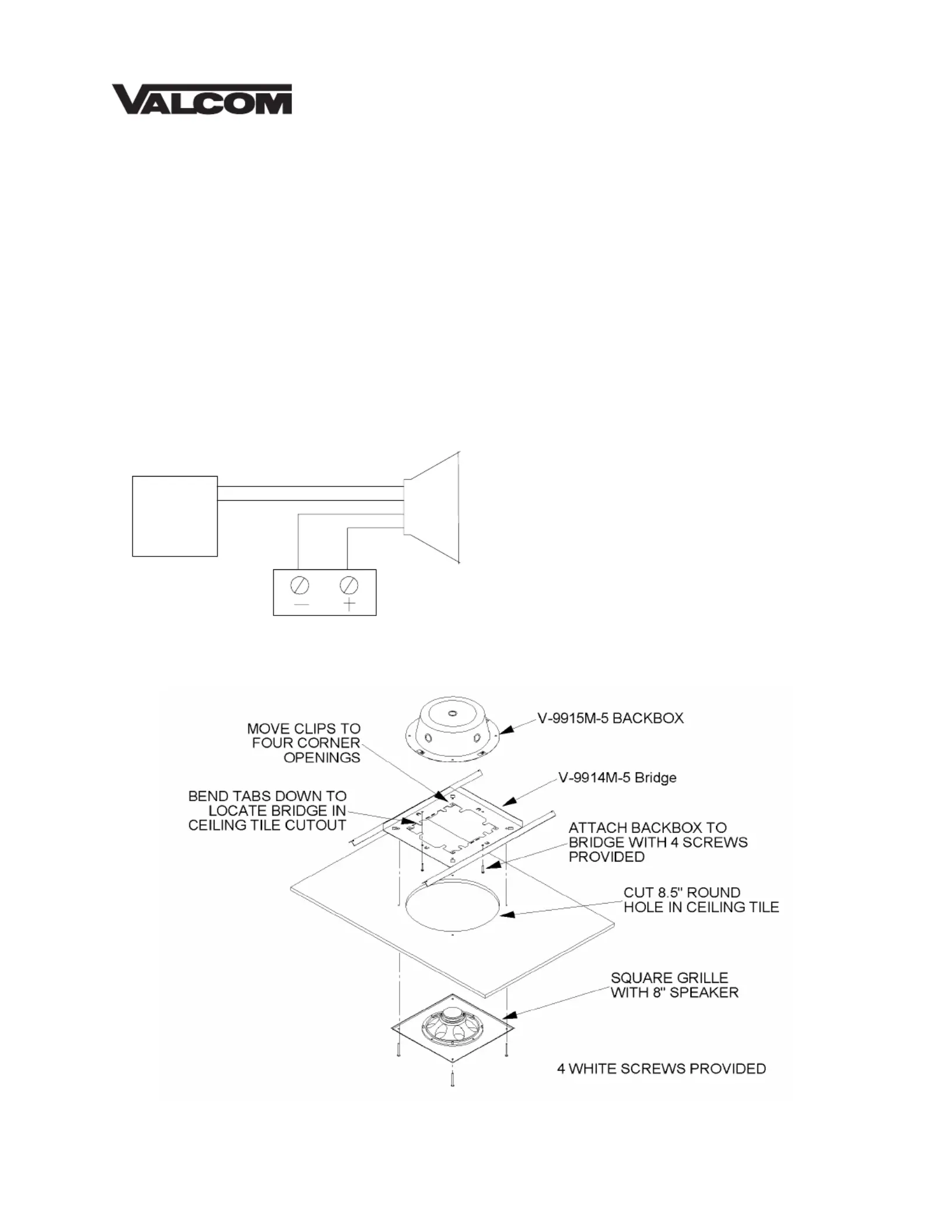

FIGURE 1: TYPICAL CONNECTION
FIGURE 2: CEILING INSTALLATION INSTRUCTIONS
