PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

COMMUNICATION & SECURITY SOLUTIONS

Vandal Resistant Handsfree Doorbox with

Built-In Color Video Camera

Answer your door or gate from the safety of your telephone!

Features

The W-3005is a weather resistant, handsfree

video doorbox designed to provide quick and

reliable handsfree communication and CCTV

video of who is at your door or gate. The W-3005

can interface directly with the unused telephone

line input of nearly any phone system. One or two

doorboxes can also share an existing residential

phone line when used with a doorboxC-1000B

controller.

When the ““ button is pressed, the doorboxCall

generates a standard or custom ring cadence of

an adjustable number of rings. For noisy

environments, the doorbox’s new louder speaker

output and “Push-to-Talk” feature can be used.

The W-3005-EWPshares all of the features of the

W-3005in addition to Enhanced Weather

Protection (EWP) for outdoor installations where

the unit is exposed to precipitation or

condensation. EWP products feature foam rubber

gaskets and boots, sealed connections, gel-filled

butt connectors, as well as urethane or thermal

plastic potted circuit boards with internally sealed,

field-adjustable trim pots and DIP switches for easy

on-site programming. For more information, see

DOD 859.

• Ideal for noisy locations in “Push-to-Talk” mode

• Commercial, industrial or residential door security

• Door or gate communication

• Truck stop/gas station fuel island communication

• Use with the controller for single lineC-1000B

residential systems or when the operation of door

strikes or gate openers is necessary (see )DOD 155

Power: 120V AC/13.8V AC 1.25A UL listed adapter pro-

vided

Dimensions:Overall - 5.0” x 5.0” x 2.25” (127mm x

127mm x 57.2mm) Plastic Rough-In Box - 4.0” x 4.0” x

2.12” (102mm x 102mm x 54mm)

Shipping Weight:3.2 lbs (1.45 Kg)

Operating Temperature: -15°F to 130°F (-26°C to 54°C)

Humidity: W-3005 - 5% to 95% non-condensing humidity,

W-3005-EWP - Up to 100% condensing humidity

Connections: (7) Gel filled butt connectors (3M Scotchlok

UR2)

(See page 2 for complete specifications)

W-3005/EWP

Vandal Resistant

Handsfree Video Doorbox

January 4 , 2019

Applications

Specifications

www.VikingElectronics.com

Information: 715-386-8861

VIKING

W-3005

Brushed 316

Stainless Steel

W-3005 shown

with optional VE-5x5

Surface Mount Box

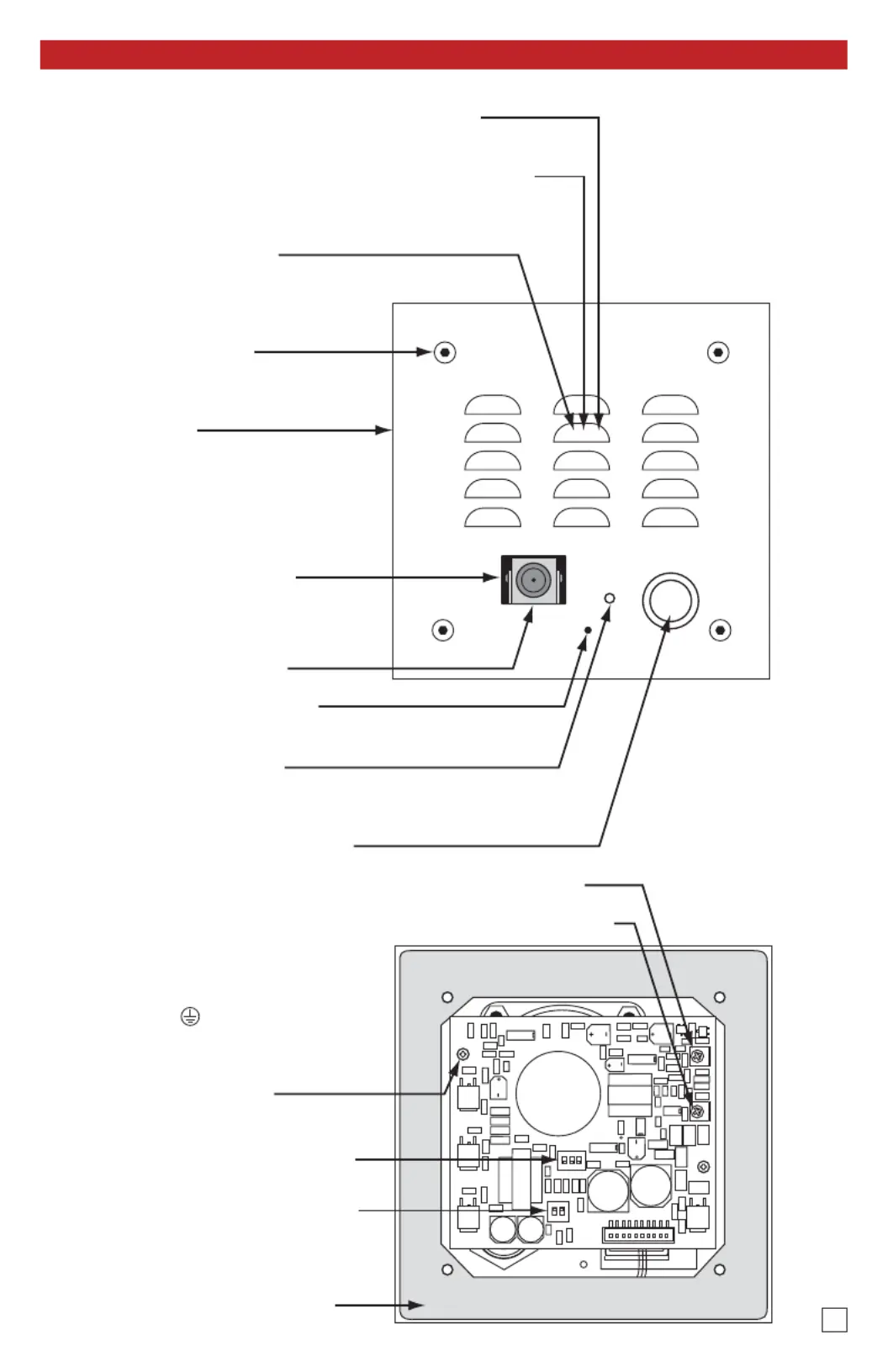

• Built-in high resolution color video camera with wide viewing

angle, tilt/swivel adjustments and wide operating temperature

• Audio and video transmission on one CAT5E cable

• Vandal Resistant Features:14 gauge louvered 316 marine

grade stainless steel faceplate with permanent laser etched

graphics, stainless steel speaker/mic screen, heavy duty metal

“Call” button,scratch resistant powder coating (optional )VE-5x5

and hexdrive mounting screws

• Marine grade 316 stainless steelWeather Resistant Features:

faceplate, screws and and push button switch. Switch internally

sealed per IP67. Mylar speaker. Self-draining mic mount. Face-

plate, mic and speaker gaskets. Weather resistant powder paint

on optional .VE-5x5

• Volume adjustments for microphone and speaker

• Blue call progress / night light LED

• High output speaker amplifier with volume adjustment POT

• 40 volt talk battery

• 20 Hz ring generator (6.0 REN ring load maximum)

• Selectable ring cadence (standard, double, short/short/long, or

short/long/short)

• Selectable number of rings (2, 3, 10 or 30)

• Selectable “Push-to-Talk” feature for noisy environments

• is designed to meet IP66 Ingress Protection RatingW-3005-EWP

(see for more information)DOD 859

• Connect to a phone system’s unused trunk input, FXO port or a

Viking ControllerC-1000B
