Oldal 1/5
Instruction Manual for
R200SS
Optical Tube Unit
Attaching the Telescope Tube to the Mount
Loosen both the dovetail tube-plate lock screw and safety screw until the tips of these screws no longer
extended into the inner part of the dovetail block. Slide the dovetail mounted scope into the dovetail
mounting block as shown in the figure. ighten the dovetail lock screw (centered on the notch) onto the T
dovetail tube plate until snug. Then tighten the small chrome safety screw onto the dovetail mounting
block until snug.
Attaching the Finder Scope
Loosen the finder bracket lock screw
on the telescope's finder bracket shoe.
Attach the 7x50 finder scope as shown
in the figure and tighten the finder
bracket lock screw securely.
The basic operations of the telescope
such as balancing the telescope and
adjusting the finder scope are described
in the instruction manuals for the Vixen
Equatorial Mount.
PREFACE
Thank you for your purchase of a Vixen astronomical telescope.
This manual applies to the R200SS telescope. You may occasionally find descriptions in the text not relevant to your particular
model. Read the instructions for your mount along with this manual if you purchased the telescope as a complete package.
CAUTION
Do not leave the optical tube uncapped in the daytime. Sunlight passing through the telescope or finder scope may cause a fire.
Do not use the product while moving or walking, injuries could result from a collision with objects or from stumbling or falling.
Keep small caps, plastic bags, or plastic packing materials away from children.
These may cause a danger of swallowing or suffocation.
Do not use the product in a wet environment and do not handle with wet hands.
Do not leave the product inside a car in bright sunshine, or in other hot places. Keep any strong heat sources away from the product.
When cleaning, do not use organic solvents such as paint thinner or similar products.
Do not expose the product to rain, water drops, dirt or sand.
Avoid touching any lens or mirror surfaces directly with your hands. In case a lens or mirror becomes dirty with fingerprints or general
smears, gently wipe it using a commercially available lens cleaner and a lens cleaning paper or cloth, or consult your local Vixen dealer.
Blow off dust on lenses using a commercially available blower brush.
For storage, keep the product in a dry place and do not expose to direct sunlight.
HANDLING AND STORAGE
WARNING!
Never look directly at the sun with the telescope or its finder scope or eyepiece.
Permanent and irreversible eye damage may result.
SETTING UP THE TELESCOPE
Refer to your mount instructions along with this manual.
(SXW mount and R200SS optical tube shown here.)
7x50 Finder Scope
with illuminator
Finder Bracket
Adjustment Screw
Optical ubeT
Finder Bracket Setscrew
Finder Bracket Shoe
Focus Knob
Tube Ring
Dovetail ube PlateT
Safety Screw
Dovetail Plate Lock Screw
(T his pa rt may be o pti ona l a t y ou r p art icu lar mode l.)
(This part may be optional at your particular model.)
2

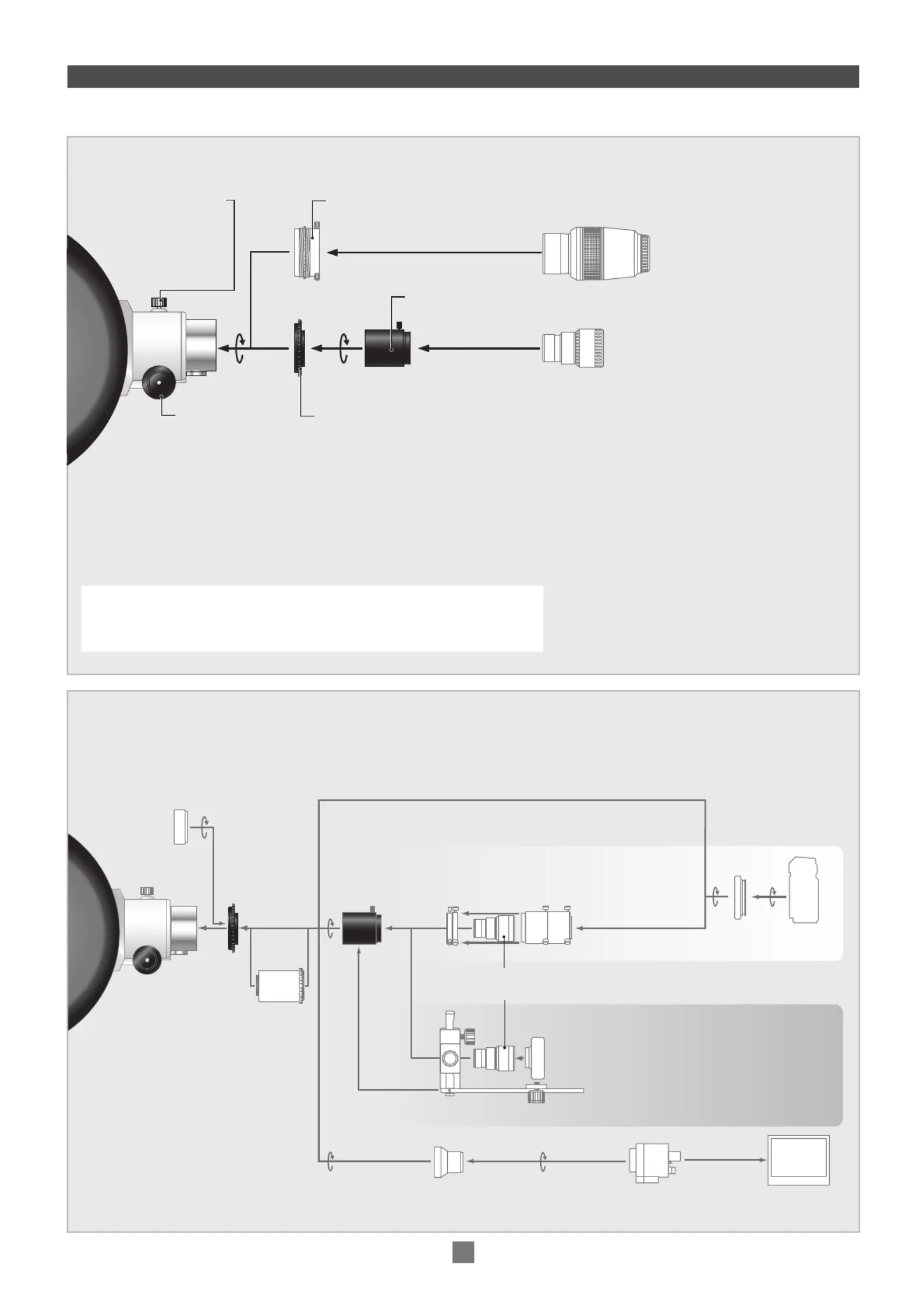

OPTIONAL ACCESSORY CHART
You may need an eyepiece as sold separately. The telescope does not come with the eyepiece as standard accessory
unless you purchased a package.
Visual Configuration
Magnification of the Telescope
Photographic onfigurationC
When using an eyepiece with short focal length (small number in millimeters), the image will be dim and the range of sharp focus will be small.
The image will be harder to see so begin with an eyepiece with long focal length (low magnification).
Dividing the focal length of the telescope by the focal length of the eyepiece gives the magnification.
Example: Calculating the eyepiece magnification of a telescope with 800mm focal length.
Eyepiece Focal length of telescope Focal length of eyepiece Magnification
NLV20mm 800mm 20mm = 40x÷
NLV 5mm 800mm 5mm = 160x ÷
60mm Ring w/
T-thread Adapter
(Supplied)
Coma Corrector III
(Not usable with Tele-Extender.)
Tele-Extender R200SS
(Not usable with Coma Corrector.)
R200SS Optical Tube
Eyepiece Projection Photography
Collimation Photography(Afocal Imaging)
Prime Focus Photography
T-C Ring
Digital Camera Quick Bracket II
(D)SLR
Camera
T-ring
Vixen NPV Eyepiece 31.7mm *NPL40mm is an exception.
Vixen NLV Eyepiece 31.7mm
Compact Digital Camera
LCD / TV MonitorCCD Imaging Camera
(with C-mount)
Some of th e op ti onal access or ie s shown in th is c ha rt will be ne ed ed i f you tak e pi ct ur es with ( D) SL R ca mera, com pa ct d ig ital
camera or CC D vi deo camera.
Ring for either Eyepiece Projection Camera Adapter
EA42mm to
31.7mm SX
(Supplied)
R200SS
Optical
Tube
60mm Ring w/T-thread Adapter (Supplied)
EA42mm to 31.7mm SX (Supplied)
Focus Knob
Eyepiece 31.7mm(Optional)
Eyepiece 50.8mm(Optional)
Compression Ring 50.8mm
(This part may be optional at
your particular model)
Focusing Tension Adjustment
(Use to hold the drawtube.)
3
