Installation manual
VLo Econna-12

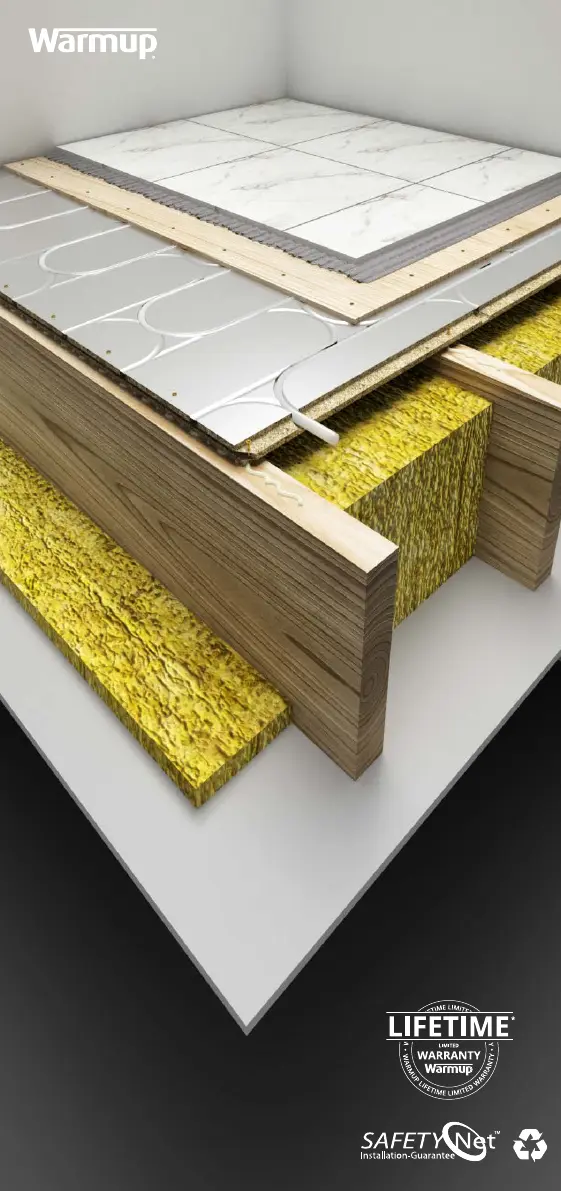

Joisted Floor System
3
Installation summary 4 ..........................................................................................
Components available from Warmup 6 ...............................................................
Important installation information 7 ....................................................................
Typical oor build-up ........................................................................................... 8
Step 1 - Suboor considerations ........................................................................ 9
Joist notching/drilling ................................................................................................ 9
Step 2 - Install VLo Econna-12 .......................................................................... 10
Step 3 - Lay the pipe ..........................................................................................13
Step 4 - Lay plywood covering .......................................................................... 16
Testing information 18 ...........................................................................................
Troubleshooting 19 .................................................................................................
Warranty 20 ............................................................................................................
Technical specications..................................................................................... 22
System Performance 23 .........................................................................................
Table of Contents
Your Warmup® underoor heating system has been designed so that
installation is quick and straight forward, but it is important that the
instructions in this manual are followed to ensure that your underoor
heating system performs correctly. Please ensure that you have the
components and working drawings necessary for this system before you
begin installation.
Warmup plc accepts no liability, expressed or implied, for any loss or
consequential damage suered as a result of installations which in any way
contravene the instructions that follow.
It is important that before, during and after installation that all
requirements are met and understood. If the instructions are followed, you
should have no problems. If you require help at any stage, please contact
our helpline.
You may also nd a copy of this manual, wiring instructions and other
helpful information on our website
www.warmup.co.uk
