Oldal 1/12
EVO 4.1
EVO 4.2
EVO 4.3
EVO 4.4
EVO 4.S
EVO 4.C
EVO 4.CS

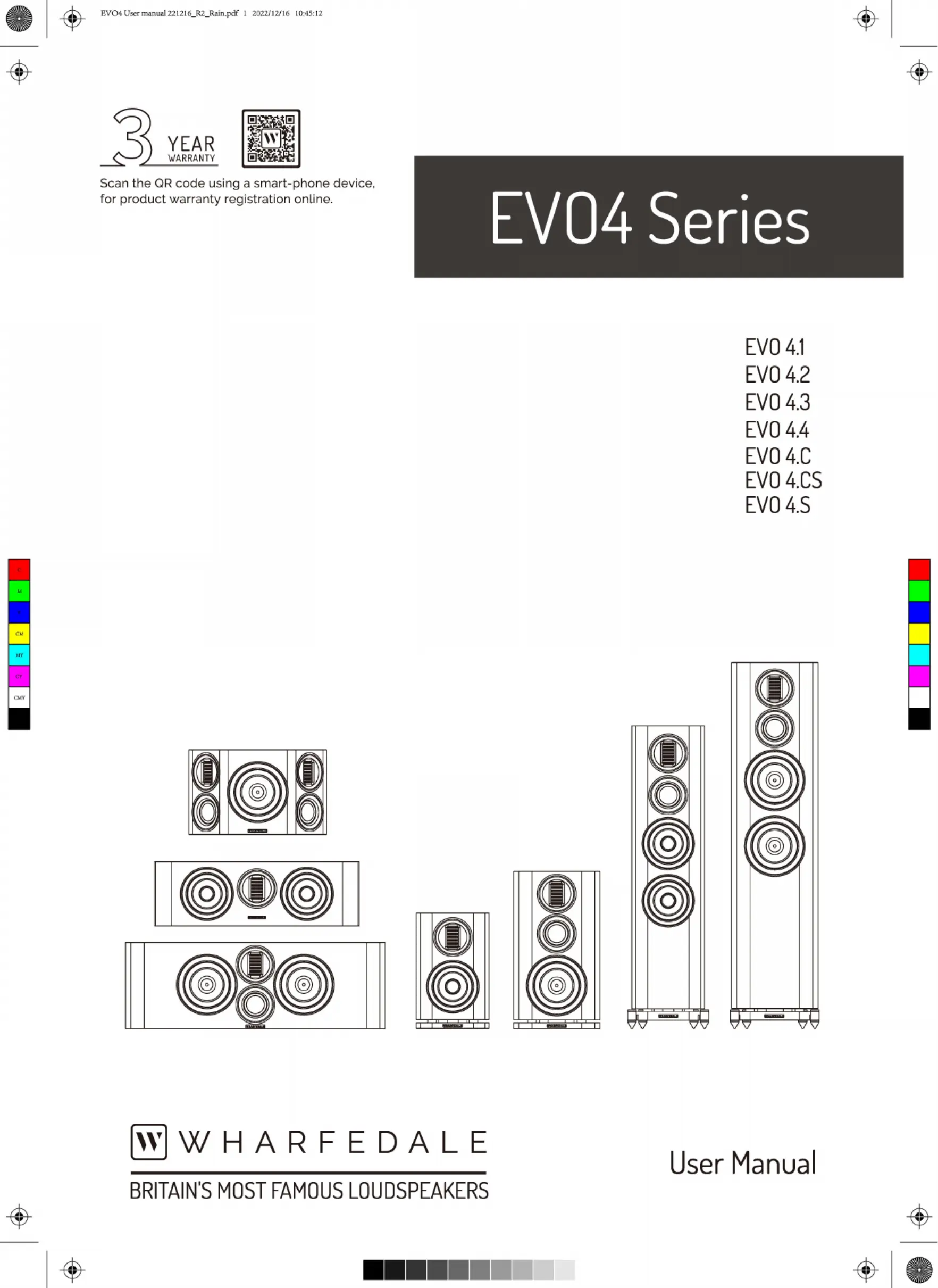

EVO4 Series
User Manual
BRITAIN'S MOST FAMOUS LOUDSPEAKERS
1
Before installing this product read all these instructions!
Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.
Before making any connections, switch all the units in your system o
at the mains.
Set the volume control at minimum when you switch on your system or change sources, and turn the level up gradually.
DO NOT use your r at full volume.
Ensure that all loudspeakers in the system are correctly wired.
DO NOT subject your loudspeakers to excessive cold, heat, humidity or sunlight.
Loudspeakers should not be placed directly facing other
r share the same shelf or cabinet.
DO NOT place heavy objects on top of loudspeakers.
Some manufacturers forbid the placing of objects on top of their TV sets. Check your TV handbook before installing the speaker directly on
your TV set. Consult your TV dealer if you are in any doubt.
DO NOT connect speaker terminals to the mains supply.
DO NOT dismantle the loudspeaker. There are no user serviceable parts inside it and you will void the warranty by doing so.
Refer all servicing to
service personnel. Servicing is required when the apparatus has been damaged in any way, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
Caution: Changes or
ations not expressly approved by the manufacturer could void the user's authority to operate this device.
Unpacking Your Loudspeaker
EVO4 loudspeakers come in di erent shapes and sizes. If you are unpacking a r stander, please remember that these units are heavy.
We suggest that you have someone to assist you.
Lift the loudspeaker carefully out of the packing. DO NOT try and lift the loudspeaker using the protective bag.
Unpack the accessories carefully.
If there is any sign of damage or if the contents are incomplete, report this to your dealer as soon as possible.
Retain the packing for future safe transport of the product. If you dispose of the packing, do so with respect to any recycling provisions in your
area.
ATTACHING THE SPIKES
CAUTION: SPIKES ARE SHARP.
Make sure that there are no wires or hidden obstacles that could be damaged by the spikes
in the immediate operational area of the speakers.
NEVER drag a loudspeaker on its spikes. always lift it. lf the item is heavy get assistance.
A mounting hole is located at each corner of the plinth. Thread a spike through each hole.
Tighten the collar
nger tight so that the spike is secure but not locked inplace.
After all the spikes are attached, invert the loudspeaker and place it carefully on the
oor.

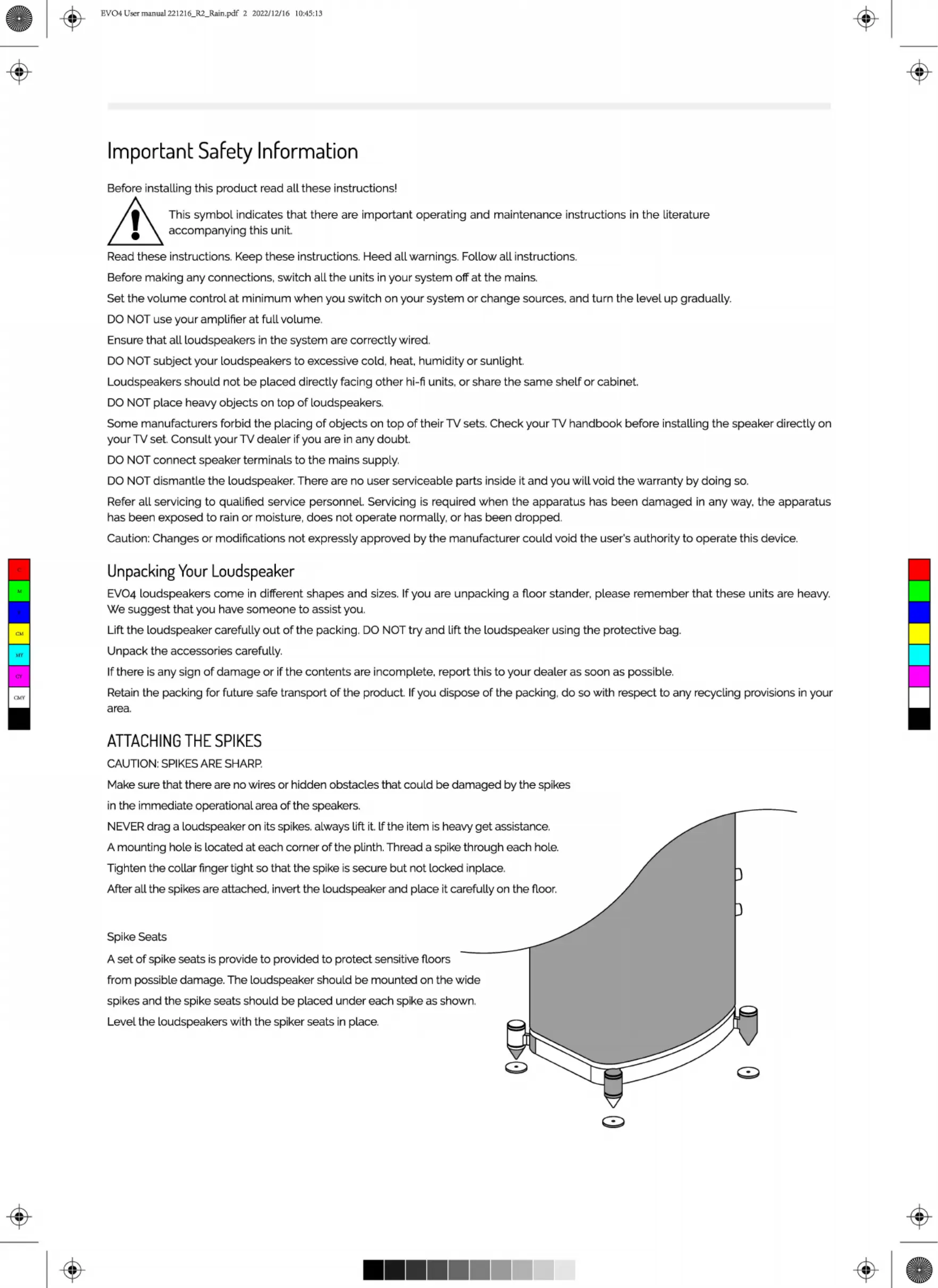

Important Safety Information
This symbol indicates that there are important operating and maintenance instructions in the literature
accompanying this unit.
Spike Seats
A set of spike seats is provide to provided to protect sensitive
oors
from possible damage. The loudspeaker should be mounted on the wide
spikes and the spike seats should be placed under each spike as shown.
Level the loudspeakers with the spiker seats in place.
1
Bi-Wireable Networks
Single Wire Networks
Stands and Brackets
The bookshelf loudspeakers are intended primarily for stand mounting, though they can be mounted on wall brackets or even on sturdy
shelves. The quality of loudspeaker stands greatly in ces the performance of your loudspeakers, please do no sy products.
Centre Channel Loudspeakers
Each centre channel loudspeaker is supplied with one set of mounting feet. By using combination of large and small feet the loudspeaker
may be angled to point directly at the listening position. This will be found useful when the centre speaker is positioned under the TV
screen.

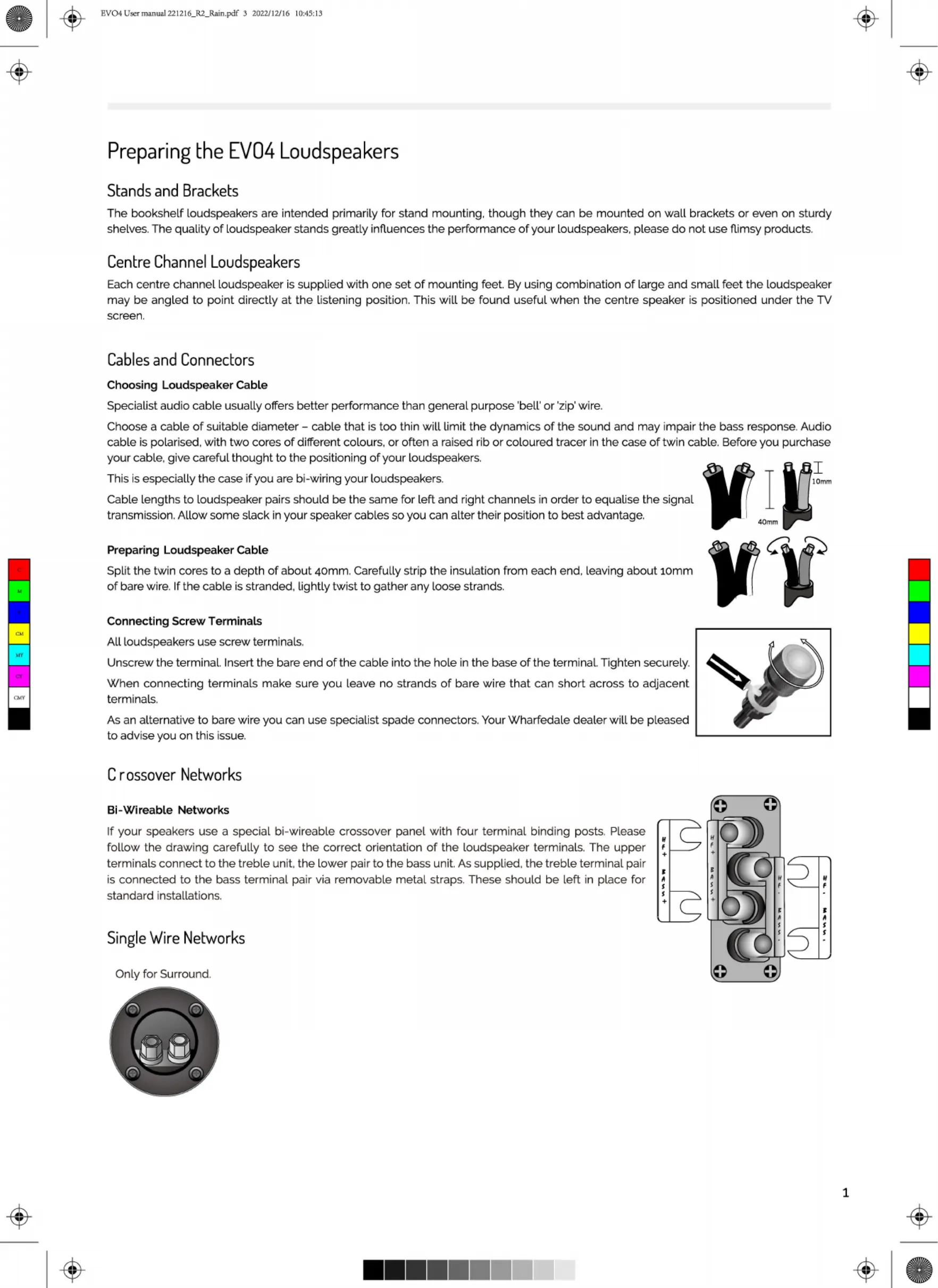

Preparing the EVO4 Loudspeakers
Cables and Connectors
Choosing Loudspeaker Cable
Specialist audio cable usually o ers better performance than general purpose 'bell' or 'zip' wire.
Choose a cable of suitable diameter – cable that is too thin will limit the dynamics of the sound and may impair the bass response. Audio
cable is polarised, with two cores of di
erent colours, or often a raised rib or coloured tracer in the case of twin cable. Before you purchase
your cable, give careful thought to the positioning of your loudspeakers.
This is especially the case if you are bi-wiring your loudspeakers.
Cable lengths to loudspeaker pairs should be the same for left and right channels in order to equalise the signal
transmission. Allow some slack in your speaker cables so you can alter their position to best advantage.
Preparing Loudspeaker Cable
Split the twin cores to a depth of about 40mm. Carefully strip the insulation from each end, leaving about 10mm
of bare wire. If the cable is stranded, lightly twist to gather any loose strands.
Connecting Screw Terminals
All loudspeakers use screw terminals.
Unscrew the terminal. Insert the bare end of the cable into the hole in the base of the terminal. Tighten securely.
When connecting terminals make sure you leave no strands of bare wire that can short across to adjacent
terminals.
As an alternative to bare wire you can use specialist spade connectors. Your Wharfedale dealer will be pleased
to advise you on this issue.
Crossover Networks
H
F
+
B
A
S
S
+
H
F
-
B
A
S
S
-
I
Only for Surround.
f your speakers use a special bi-wireable crossover panel with four terminal binding posts. Please
follow the drawing carefully to see the correct orientation of the loudspeaker terminals. The upper
terminals connect to the treble unit, the lower pair to the bass unit. As supplied, the treble terminal pair
is connected to the bass terminal pair via removable metal straps. These should be left in place for
standard installations.
Termékspecifikációk
| Márka: | Wharfedale |
| Kategória: | hangszóró |
| Modell: | EVO 4.S |
