Quick Start Guide

Mounting Options for V Style Modules

Overview

This Quick Start Guide covers the four versatile mounting kit options that are available

for mounting AMX V Style Modules of various heights and widths, including various

Transmitters, Receivers, Converters, DADs (Distribution Amplifier Drivers), and

ICSLan Device Control Boxes.

• FG1010-720

AVB-VSTYLE-RMK-1U, V Style Module Rack Mounting Tray Kit

Rack mount various size modules side by side in a single rack unit.

• FG1010-721

AVB-VSTYLE-RMK-FILL-1U, V Style Module Tray with Fill Plates Kit

Rack mount with blank fill plates (1 each: 1/12, 1/6, 1/4, 1/3 rack width).

• FG1010-722

AVB-VSTYLE-SURFACE-MNT, V Style Single Module Surface Mount Kit

Mount a single module to the wall, under a desk, etc.

• FG1010-723

AVB-VSTYLE-POLE-MNT, V Style Single Module Pole Mounting Kit

Mount a single module to a projector pole or other 2 inch diameter pipes.

This Quick Start Guide contains complete information for installing these mounting

kits.

Note: Pictorial drawings with dimensions are available at www.amx.com.

Tray (FG1010-720) and Tray with Fill Plates (FG1010-721)

The Tray Kit can be ordered with or without fill plates. The Tray with Fill Plates Kit

contains a tray and plates in sizes that will fill out the tray for a professional looking

installation (fill plates come in 1/12, 1/6, 1/4, and 1/3 rack width sizes).

Modules can be mounted in a tray facing either direction as illustrated in FIG. 1.

Tip: If multiple fill plates are required, use a minimum of fill plates by selecting the

largest sizes that will fill the space first.

To mount modules in a tray:

1. Invert the module and the module rack mounting tray for ease of installation.

2. Attach the rack mounting tray to the bottom of the module using the #4-40

3/16 inch undercut flat head screws (provided). Note that only two screws are

required.

3. Install the tray in a standard EIA 19 in. (48.26 cm) rack and secure with rack-

mounting screws.

4. Optional – attach fill plates using the #4-40 3/16 inch undercut flat head screws

(provided). Be sure to use the screw holes closest to the front of the tray.

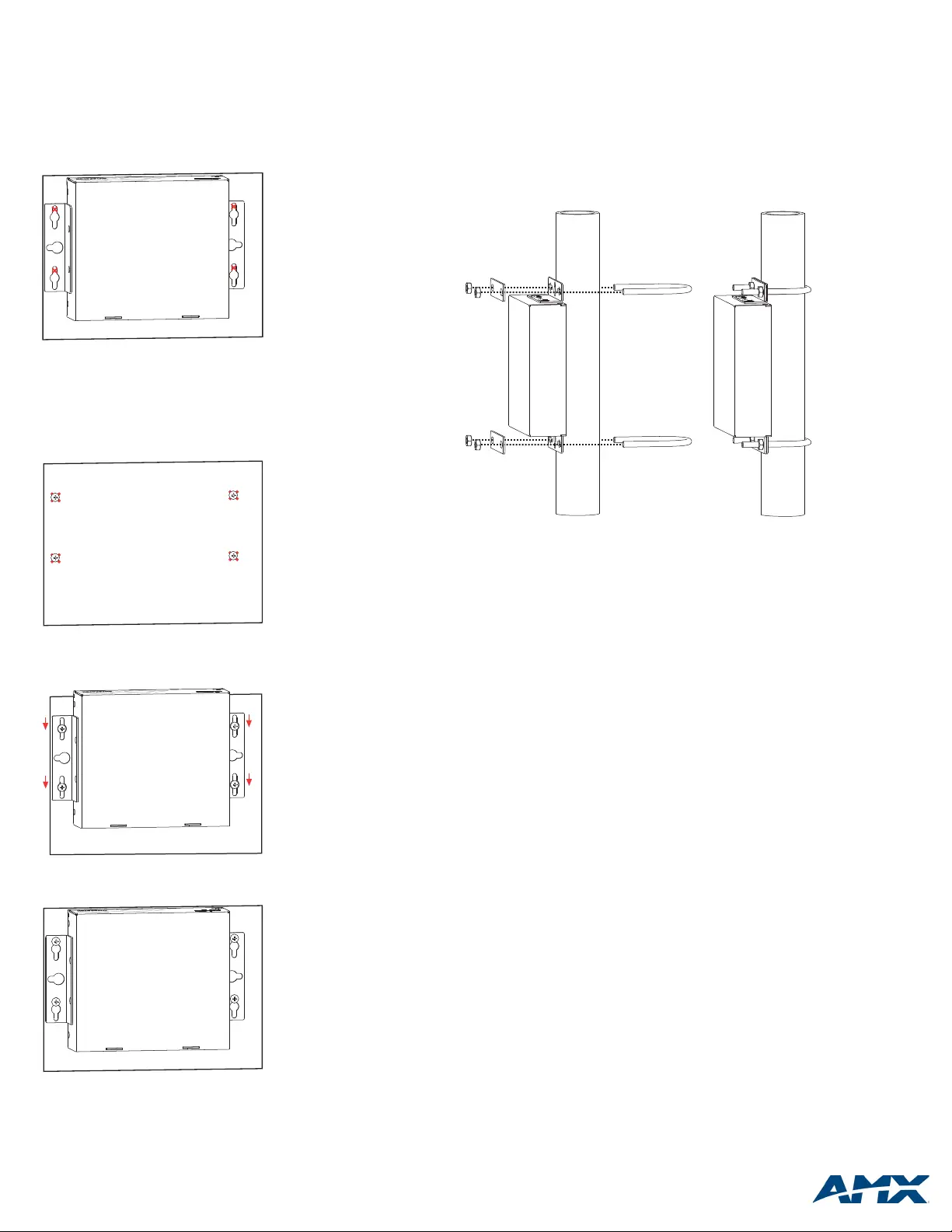

Surface Mount (FG1010-722)

Attaching brackets

The Surface Mount Kit is designed for mounting a single module (to the wall, on or

under a desk, etc.) The kit contains brackets and screws. The brackets may be

attached to mount the top or the bottom flush with the mounting surface.

Important: Be careful not to block vent holes on the module when mounting.

The following instructions can be used for attaching brackets when surface mounting

or for pole mounting.

Tip: Laying the module and brackets on a flat surface when you attach the brackets

helps align them.

To attach brackets to a module:

1. Insert the #4-40 3/16 inch pan head screws (provided) per FIG. 4 and tighten.

Brackets can either align flush with the top or with the bottom.

FIG. 1

Options for placing modules in the tray (shown with fill plates)

FIG. 2 Invert tray and module (and fill plates if applicable) for ease of installation

Front view with modules facing to front

Front view with modules facing to rear

Rear view with modules facing to front

Fill plate

FIG. 3 Attach brackets in either top or bottom position (various size modules shown)

FIG. 4 Insert screws and tighten

Termékspecifikációk

Márka:	AMX
Kategória:	nincs kategorizálva
Modell:	AVB-VSTYLE-RMK
Termék színe:	Fekete
Magasság:	44.4 mm
Szélesség:	480 mm
Mélység:	133 mm
Méret (sz x mé x ma):	480 x 133 x 44.4 mm
