DIP Switch Toggles – Default OFF (for Auto-setup, see next page)

Before installingtheunits,findthescenarioyouareusinginthetablebelowandsetthe

DIP switchtogglesaccordingly.Toggle #4isreservedforfuture functionality.

For standalone pair upgrades, set Toggles #1-2-3 to ON and connect one unit to a

Controller.

COMMON SCENARIOS

TOGGLES

Standalone Setup

1 - 2 - 3

AV signals only (plus serial/IR passthrough)

OFF - OFF - OFF

AV with Ethernet passthrough to networked device (plus serial/IR

passthrough)*

ON - OFF - OFF

AV with NetLinx control of TX/RX unit and serial/IR ports**

ON - ON - ON

AV with NetLinx control of TX/RX unit and serial/IR ports, plus Ethernet

passthrough to network device*

ON - ON - ON

Switcher Setup (TX/RX with Enova DGX/DVX /DGX 100 Series Switcher)

1 - 2 - 3

AV signals only

OFF - OFF - OFF

AV with Ethernet passthrough to networked device*

ON - OFF - OFF

AV with NetLinx control of TX/RX unit and serial/IR ports

OFF - OFF - ON

AV with NetLinx control of TX/RX unit and serial/IR ports, plus Ethernet

passthrough to network device*

ON - OFF - ON

* Connect ICS LAN port of DXLink unit to network device (e.g., laptop, IP controlled

projector, ICSLan Device). In standalone setup, connect ICS LAN port of other DXLink

unit to network.

** In standalone setup using NetLinx control of DXLinkserial/IR ports, only one of the

DXLink units should be connected to network (the unit with #1 Toggle enabled).

SourceDevice

Destination Device

DXLINKTransmitter DXLINKReceiver

FIG. 3 DXLINK TX AND RX AS EXTENDER SOLUTION

Mounting Options (Rack Trays and Mounting Brackets)

FordetailsonthefourversatilemountingkitoptionsforV Stylemodules(racktray,rack

tray with fill plates, surface mount, and pole mount), seewww.amx.com

IMPORTANT: When mounting under a surface, the module should be mounted upright and

lowered in the mounting bracket slots to provide an airflow gap between the surface and

the vent holes. If not using V Style brackets, be sure to leave a gap between the top of

the unit and the surface for heat to escape.

Twisted Pair Cable Pinouts and RJ-45 LEDs

The DXLink and ICS LAN 10/100 ports both use twisted pair cable. FIG. 4 shows two

pinouts that can be used for either port. FIG. 5 shows the LEDs for each port.

FIG. 4 RJ-45 PINOUTS

FIG. 1

DIP SWITCH TOGGLES ENABLE/DISABLE SPECIAL FUNCTIONALITY

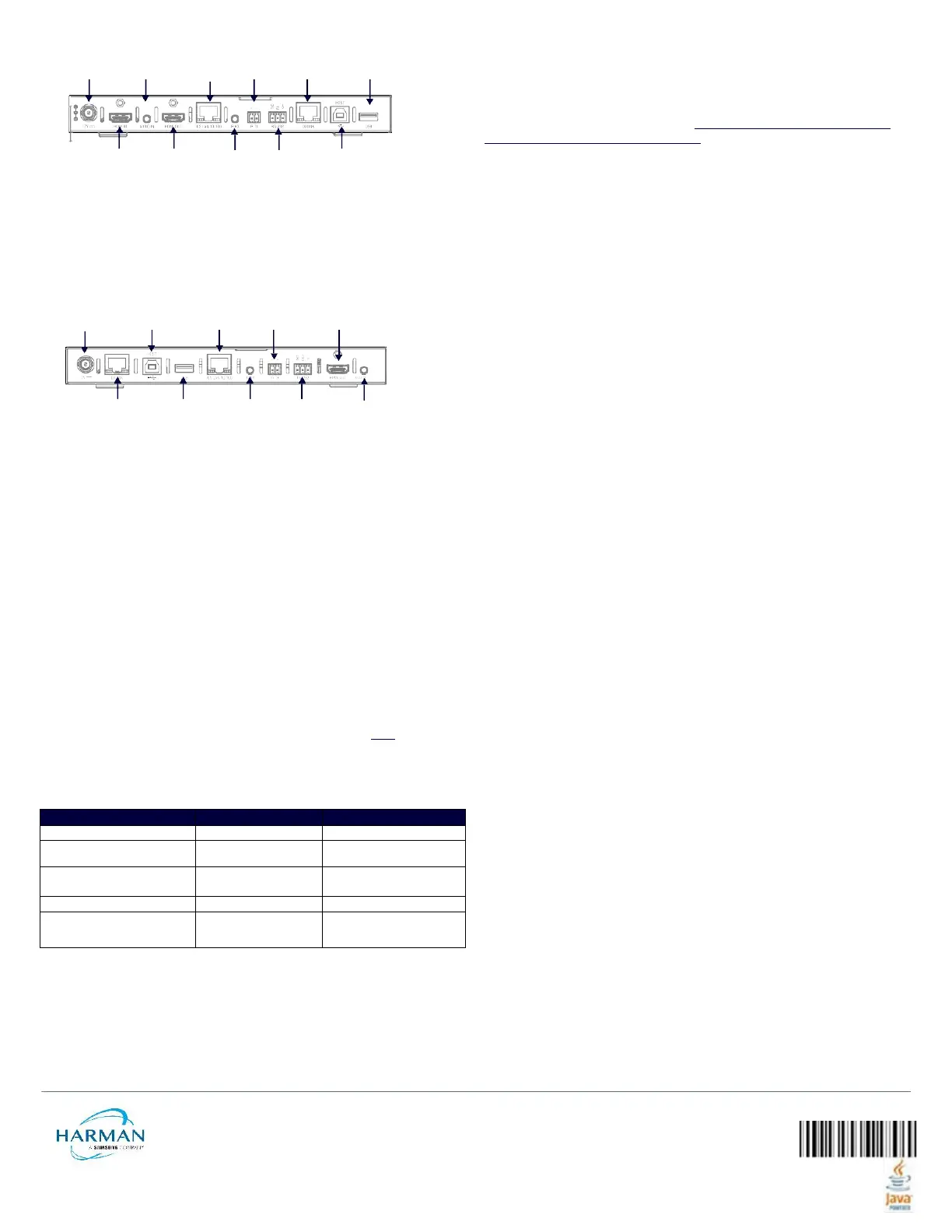

Overview

TheDX-TX-4K60andDX-RX-4K60 transmitHDMI, audio, USBandcontrolovertwisted

Yellow LED

On - Speed status is 100 Mbps

Off- Speed status is 10 Mbps

ICS LAN 10/100 Port

Green LED

Yellow LED

On - Authenticated HDCP

Flashing - Video active; no HDCP

Off- No Video

DXLink Port

pair cable. The TX also has an HDMI local loop out. DXLink Modules can be set up in

one of three ways:

•

EndpointMode(Switcher) – connectone or moretoa switcher with anintegrated

Controller.

•

EndpointMode(Standalone) – connect TX/RXpairdirectly to eachother with one

Green LED

On - Link status is active

Off- Link status is not active

FIG. 5 RJ-45 PORTS

On - Connection established

Off- Connection not established

connected to a NetLinx Central Controller via LAN or directly to Controller.

•

ExtenderMode(Standalone)– connect TX/RXpair directlyto eachother.

These Modules support InstaGate Pro® and SmartScale® Technology.

The Hardware Reference Manual – DXLink Twisted Pair 4K60 Transmitters/Receiver

contains complete documentation (including full specifications and supported input

and output resolutions); for details, see www.amx.com.

System Setup

The DX-TX-4K60 and DX-RX-4K60 work with a switcher that supports DXLink

Technology or as a stand-alone pair to transmit audio, video and control signals. The

Transmitter receives audio and video from the HDMI source and transmits both audio

andvideooverthe DXLinktwisted paircable. ThisDXlink cablecan beconnecteddirectly

to a DXLink Receiver or to a DXLink input on a DXLink switcher where it can be routed to

a DXLink output and connected to a DXLink Receiver. The DXLink Receiver converts the

DXLink input to HDMI and analog audio outputs. On the Transmitter, stereo audio

connections are provided as a supplemental audio input. Both the Transmitter and the

ReceiversupportRS-232 forserial data transfer,USB, IR, and Ethernet.

Destination Device

Attaching Signal, Transport, and Control Cables

Important Twisted Pair Cabling Requirements and Recommendations:

•

DXLinkcable runsrequire shielded categorycable(STP) of Cat 6 (orbetter).

•

Forcablerunslongerthan 70meters total,shielded category cable(STP) ofCat6A

or better isrequired.

•

DXLinktwisted paircable runsfor DXLinkequipmentshall onlyberun within

a commonbuilding.*

•

DXLink(RJ-45) connectorsmustnot beused for connectingto a standard

Ethernet Network. The connector is used for signaltransport.

•

Do not create a network (Ethernet) loop. A network loop is created when the

enclosureandoneormoreofits DXLinkModulesareconnectedto a commonLAN

(or a standalone pair when both endpoints connect to the samenetwork).

•

DXLinkdelivers10.2Gb/sthroughput overshieldedcategorycable.Basedonthis

bandwidth requirement, we recommend following industry standard practices

designed for 10 Gigabit Ethernet when designing and installing the cable

infrastructure.

•

The cables should be no longer than necessary to reach the end-points. We

recommendterminatingthecable totheactualdistancerequiredrather than

leaving any excess cable in a serviceloop.

Source Device

DXLINK Input Board

Cat x

DXLINK Output Board

•

Formoreinformation,seethe HardwareReference Manual – DXLinkTwistedPair

4K60Transmitters/Receiver.

HDMI IN

DXLINK Transmitter

Up to330ft

(100m)

D

C

F

L

T

LAN 100/1000

Cat x

Up to330ft

(100m)

DXLINK Receiver

HDMI OUT

* “Common building” is defined as: Where the walls of the structure(s) are physically

connected and the structure(s) share a single ground reference.

For more details and helpful cabling information, reference the white paper titled

“Cabling for Success with DXLink” available at www.amx.com

or contact your AMX

representative.

FIG. 2 DXLINK TX AND RX AS ENDPOINTS WITH COMPATIBLE DXLINK EQUIPMENT

Cat x Up to330ft(100m)

HDMI IN

HDMI OUT

ON

1 2 3 4

ID USB MODE

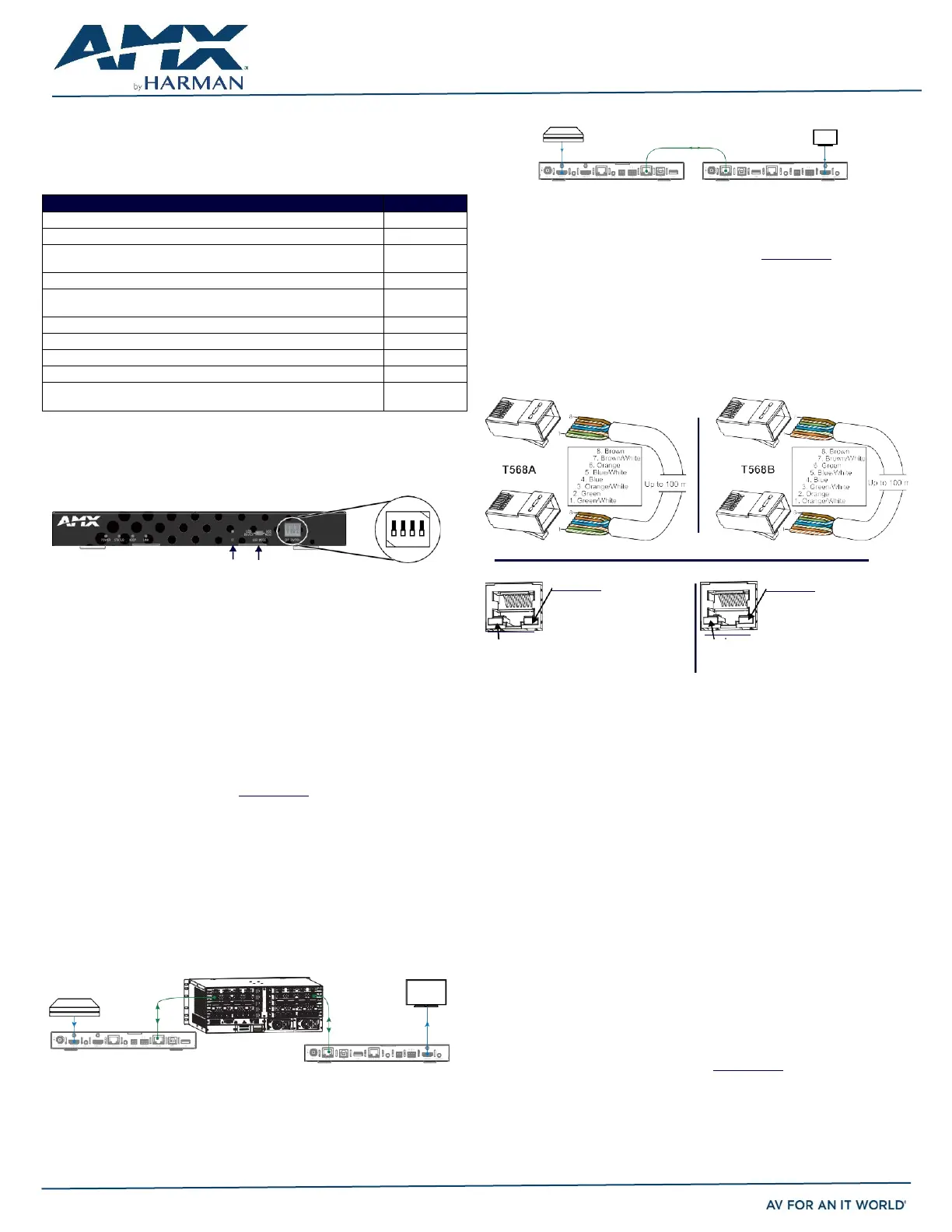

QUICK START GUIDE

DXLink™ Twisted Pair 4K60 Transmitter/Receiver
