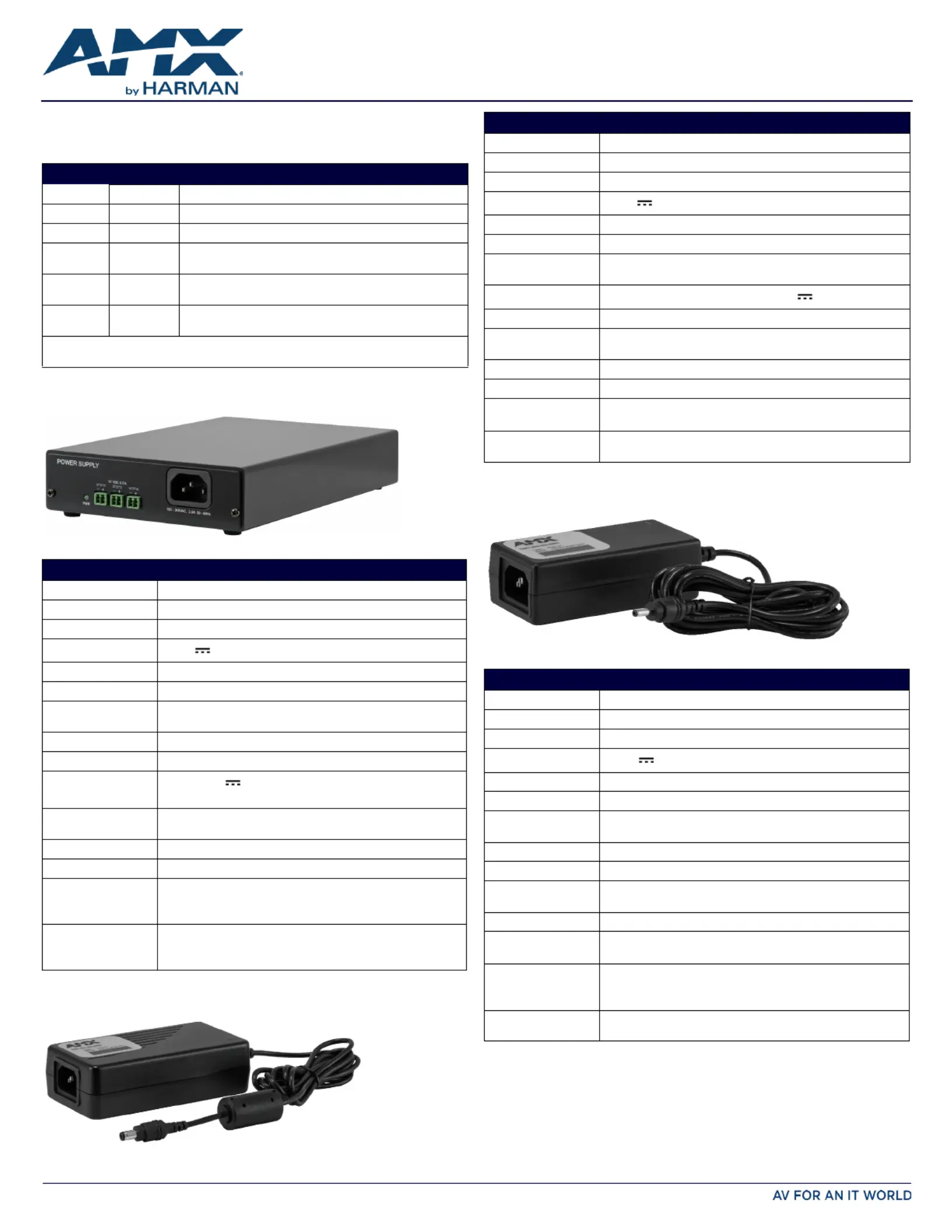

QUICK START GUIDE

PS/N/R Power Supplies

Power Supply Models

AMX offers 6 variations of our Class I, CSA/CE approved, and UL listed system

power supplies:

PSN6.5 Specifications

FIG. 1 displays the rear panel of the PSN6.5.

PS4.4 Specifications

FIG. 2 displays the PS4.4.

PS3.0 Specifications

FIG. 3 displays the PS3.0. The PS3.0 is a Class I power supply which is CE approved

and UL listed. The PS3.0 uses a barrel-plug connector.

PS/N/R POWER SUPPLIES

PSN6.5 (FG423-41) With US power cord

PS4.4 (FG423-44) Includes US power cord and barrel plug

PS3.0 (FG423-30) Includes US power cord and barrel plug

PSR2.5 (FG423-47) Includes 3-pin retained captive-wire connector and US

power cord

PSR5.4 (FG423-48) Includes 2-pin retained captive-wire connector and US

power cord

PSR7-V (FG423-49) IEC power cord provided as a separate part, dependent

on country requirements.

Note: All models use an input connector sanctioned by the IEC (International

Electrotechnical Commission).

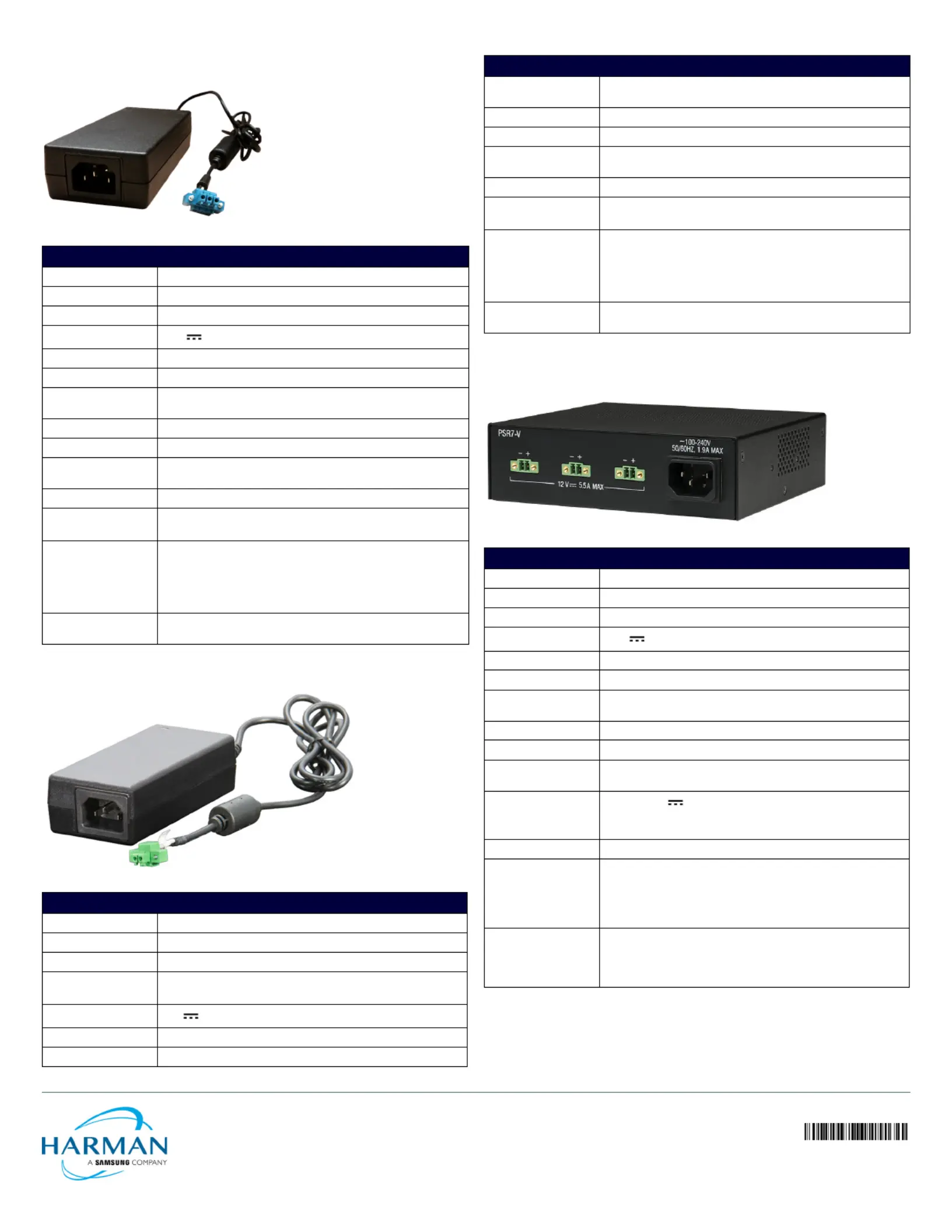

FIG. 1 PSN6.5 POWER SUPPLY

PSN6.5 SPECIFICATIONS

Dimensions (HWD): 1 1/2" x 5 9/16" x 9 1/4" (3.81 cm x 14.10 cm x 23.50 cm)

Weight: 2.76 lbs. (1.25 kg) (without power cord)

Input: ~100-240 V, 2.6A MAX (1.3A MAX @ 230), 50/60 Hz

Output Voltage:

13.5 V

Output Current: 6.5 A (continuous power output is 90 W max)

Ripple and Noise: 350 mV peak-to-peak @ 70% load

Protection: Over-voltage, over-current, short-circuit, transient and

thermal switching regulated, overload protected

Power Indicator: Green LED indicates presence of DC on the output.

Connectors: Three removable 2-pin 3.5 mm mini-Phoenix connectors

Rear Panel

Components:

• Three 12 V power supply connectors

• Standard IEC (male) jack for the power cord

Input Power Cord: 6-foot (1.83 m) IEC cord with a grounded Edison plug for AC

input (US only)

Enclosure: Metal with black matte finish

Temp Range: 32°F - 122°F (0°C - 50°C)

Certification: • UL: US listed - Class I Power Supply

•CSA approved

•CE approved

•PSE approved

• CCC approved

Accessories: • US power cord

• 3 removable 2-pin 3.5 mm mini-Phoenix connectors

• (Optional) AC-RK Accessory Rack Kit (FG515)

FIG. 2 PS4.4 POWER SUPPLY

PS4.4 SPECIFICATIONS

Dimensions: 4 5/8" x 2 1/4" x 1 1/2" (11.7 cm x 5.8 cm x 3.5 cm)

Weight: 1.1 lb. (499 g)

Input: ~100-240 V, 1.5A MAX (0.6A MAX @ 230), 50/60 Hz

Output Voltage:

13.5 V

Output Current: 4.5A MAX

Ripple and Noise: 150 mV peak-to-peak @ full load

Protection: Over-voltage, over-current, short-circuit, transient and

thermal. Switching regulated, overload protected.

Power Indicator:

Green LED indicates the presence of V on the output.

Connector: Barrel plug (2.1mm ID, 5.5mm OD, 9.5mm length)

Input Power Cord: 6-foot (1.83 m) IEC cord with a grounded Edison plug for AC

input (US only)

Enclosure: Molded black matte plastic

Temp Range: 32°F - 104°F (0°C - 40°C)

Certification: • UL: US listed - Class I Power Supply

•CSA approved

•CE approved

•PSE approved

Included

Accessories:

US power cord

FIG. 3 PS3.0 POWER SUPPLY

PS3.0 SPECIFICATIONS

Dimensions (HWD): 3 7/8" x 1 3/4" x 1 1/4" (9.8 cm x 4.5 cm x 3.05 cm)

Weight: 5.6 oz (150 g) (without power cord)

Input: ~100-240 V, 3A MAX, 50/60 Hz

Output Voltage:

12 V

Output Current: 3.0 A

Ripple and Noise: 200 mV (60Hz Ripple + Switching ripple and noise)

Protection: Over-voltage, over-current, short-circuit, transient and

thermal switching regulated, overload protected

Power Indicator: Green LED indicates presence of DC on the output.

Connectors: 1.3mm barrel plug, 11mm long

Input Power Cord: 6-foot (1.83 m) IEC power cord terminated with a grounded

Edison plug for AC input (US only).

Enclosure: Molded black matte plastic

Temp Range: • Operating temperature: 32°F - 122°F (0°C - 50°C)

• Storage temperature: -4°F - 185°F (-20°C - 85°C)

Certification: • UL: US listed - Class I Power Supply

• CUL approved

•TUV approved

• FCC approved

• CE approved

• PSE approved

Included

Accessories:

US power cord
