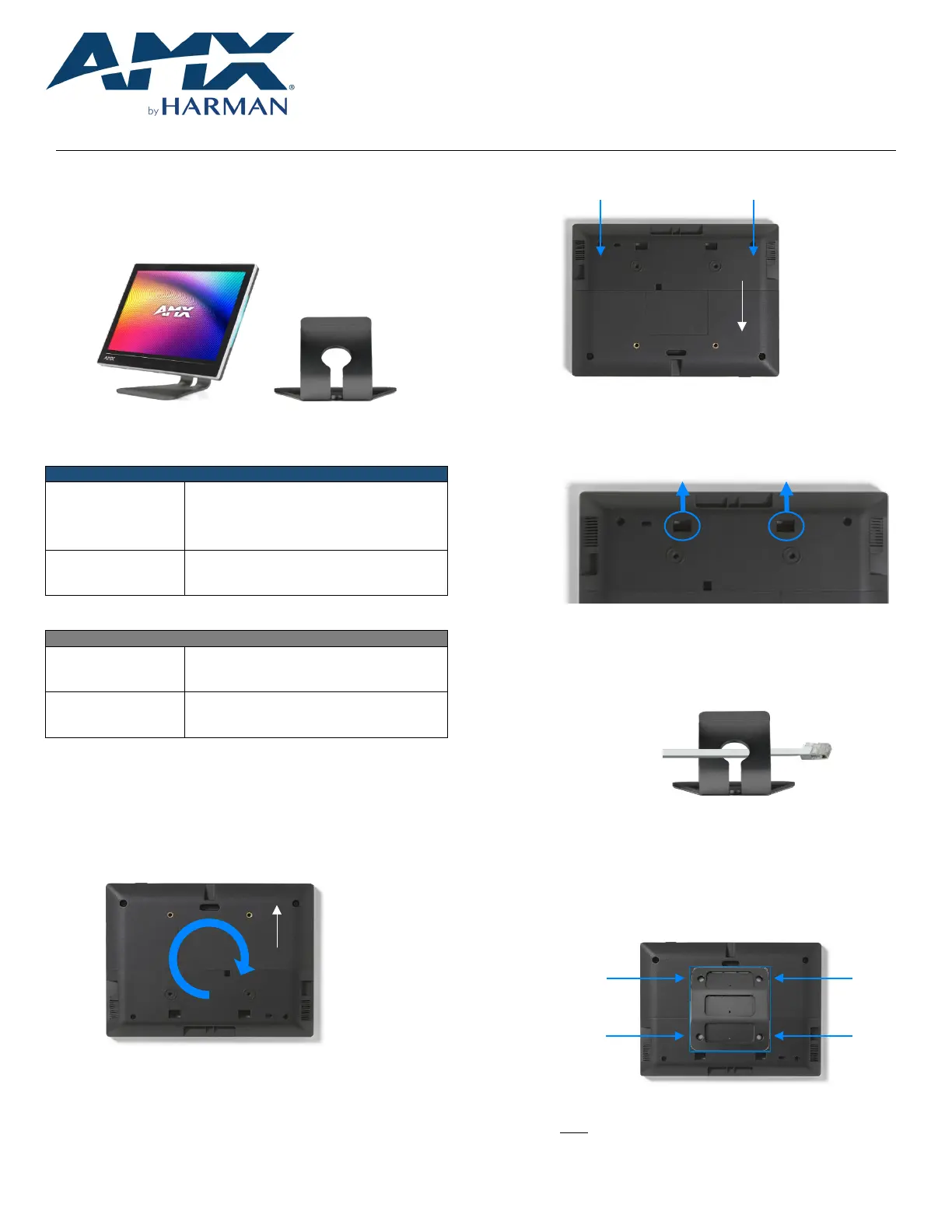

QUICK START GUIDE

VARIA-ACS-810A 8” & 10.1” Angle-Select Tabletop Stand

VARIA-ACS-150A

15.6” Angle-Select Tabletop Stand

Overview

TheVaria Angle-Select Tabletop stands are designed for 8” VARIA-80, 10.1”

VARIA-100, & 15.6” VARIA-150 Touch Panels, and give them a sleek & modern

tabletop solution thatcan be installed at one of three angles to best suit the

users’ needs.

FIG. 1VariaTouch Panel on Angle-Select Tabletop Stand

Model Availability & Compatibility

ANGLE-SELECT TABLETOP STANDS

VARIA-ACS-810A

(AMX-UMT8111)

VARIA-80 Touch Panel (AMX-UTP0811)

VARIA-100 Touch Panel (AMX-UTP1011)

VARIA-100N Touch Panel (AMX-UTP1011N)

VARIA-ACS-150A

(AMX-UMT1511)

VARIA-150 Touch Panel (AMX-UTP1511)

VARIA-150N Touch Panel (AMX-UTP1511N)

Other Models Available

FIXED TABLETOP STANDS

VARIA-ACS-80F

(AMX-UMT0801)

VARIA-80 Touch Panel (AMX-UTP0811)

VARIA-ACS-100F

(AMX-UMT1001)

VARIA-100 Touch Panel (AMX-UTP1011)

VARIA-100N Touch Panel (AMX-UTP1011N)

Installation

VariaFixed Tabletop Stands are easily installed with the supplied hardware and

a Philips-head screwdriver.

1.Place the panel face-down on a soft cloth andarrange the panel so

that the top of the touch panel is closest to you.

FIG. 2Varia Touch Panel, rear

2.If they are installed, remove two small screws from the lower cover.

Screw Locations

FIG. 3Rear cover screws, if installed

3.Place your thumbs onthe rectangular access holes, and push the

lower cover away from you.Do not discard, this will be reinstalled

later.

FIG. 4Rear CoverRemoval

4.Rotatethe panel back around so the bottom is closest to you.

5.Route the networking cable through the base first, andthen plug the

RJ-45 connector into the back of the touch panel.

FIG. 5Angle-Select Tabletop Stand Base

6.Reinstall the lower cover, first snapping it into place. Optionally, two

small screws supplied in the hardware accessory bag may be

installed.Make sure the cable routes out the bottom of the lower

cover.

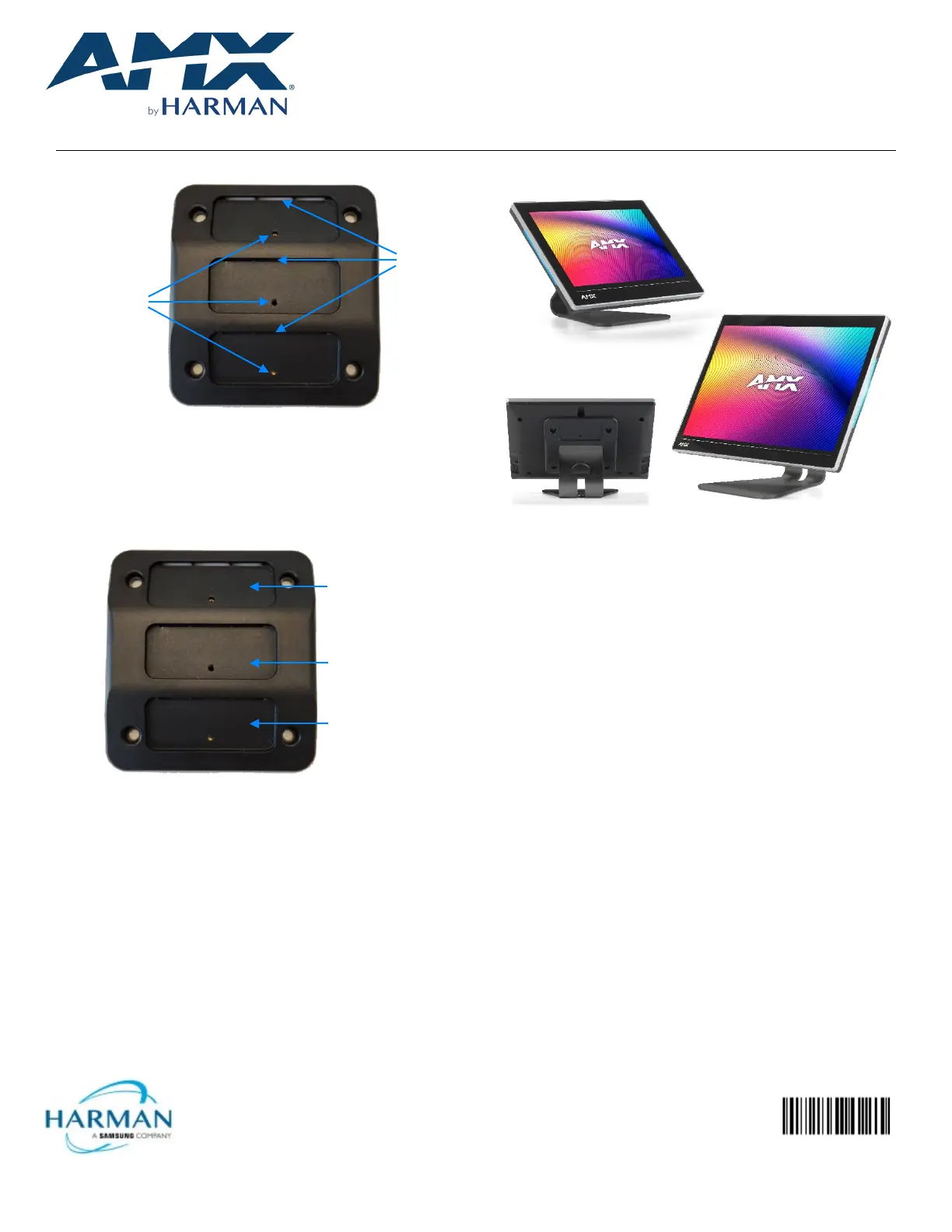

7.Screw the mount to the rear of the panel using the supplied screws.

FIG. 6Mounting Plate Installation

NOTE: The three slots should be oriented UP and the set screw

holes should be oriented DOWN.

Top

Top
