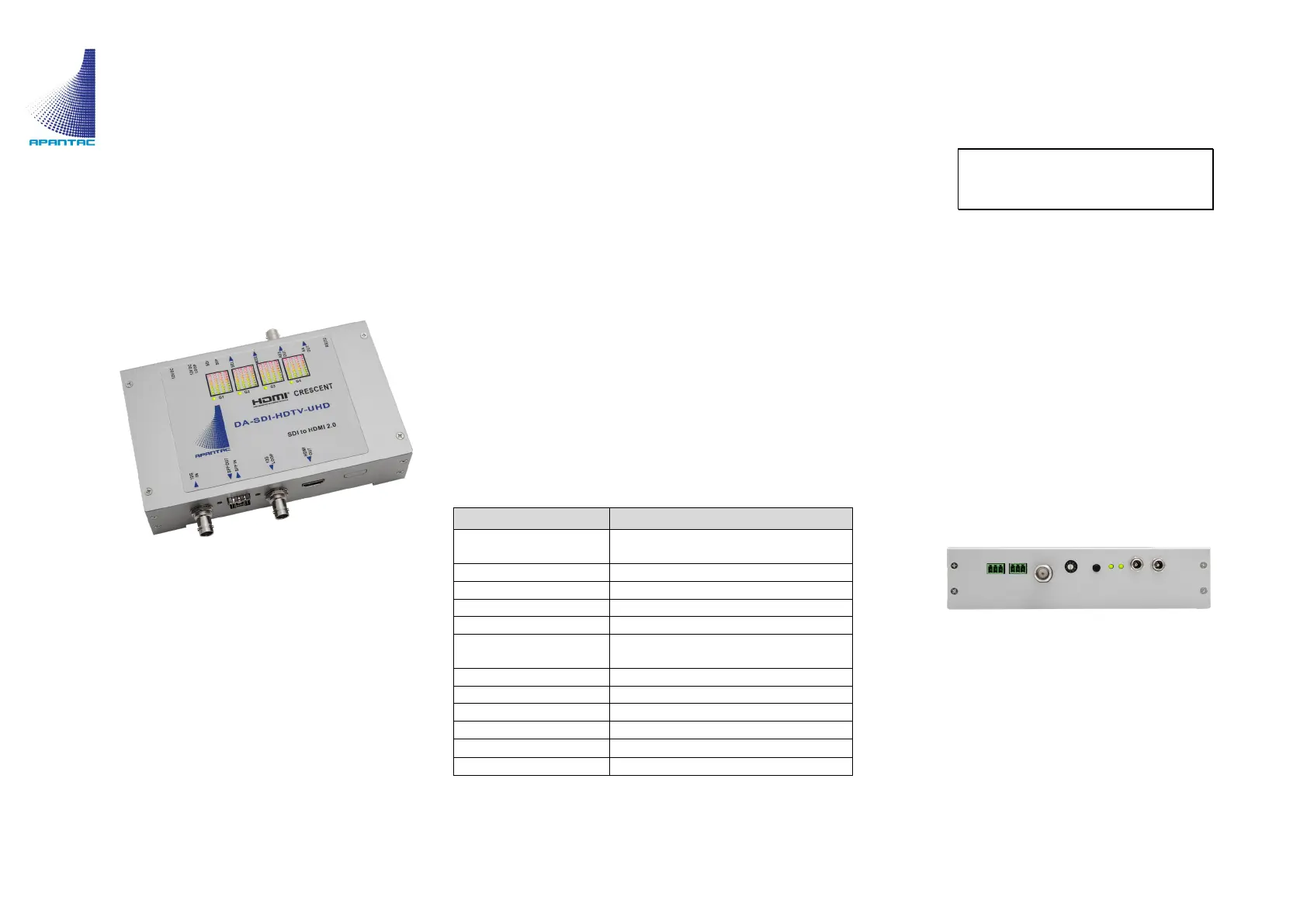

DA-SDI-HDTV-UHD

User Manual

12G SDIto HDMI 2.0

Converter w/o

Scaler

OVERVIEW

DA-SDI-HDTV-UHD is a 12G SDIto HDMI 2.0converter.

Supports up to 12G SDI and converts to HDMI 2.0

output with optional SDI fiberinput

PACKAGE CONTENTS

•DA-SDI-HDTV-UHD

•Locking Power Supply (12V/3.34A)

•Magnetic Mounting Plate

FEATURES

•Supports up to 12G SDI input

•SDI loop out

•Supports up to HDMI 2.0output

•1 x HDMI output

•1 x SFP output for optional SDI SFP

•Cables

SPECIFICATIONS

Function

DA-HDTV-SDI-UHD

DESCRIPTION

HDMI 2.0(UHD) to 12G Converter with

Looping HDMI input

VIDEO INPUT

1 x HDMI 2.0

INPUT RESOLUTIONS

HDMI 1.4/2.0 up to 3840x2160P

VIDEO OUTPUT

1 x HDMI Loopout, 1 x SDI, 1 x SFP

OUTPUT RESOLUTIONS

Up to 12G SDI

AUDIO OUTPUT

8 Channels of SDI Embedded Audio,

AES/AA stereo pairs

ROTARY SWITH

Audio pair selection

RS-232

FW Upgrade Port

POWER

12V DC 3.34A

POWER LOOP OUT

12V DC 3.34A

Cable Distance

10 m on Certified4K Cables

Housing

Metal

FRONT VIEW

1.12G Input

2.LED for SFP status

3.SFP cage for optional SDI Fiber Rx

4.LED for SDI status

5.SDI loopout

6.HDMI output

REAR VIEW

1.RS-232

2.AA monitoring output

3.AES monitoring output

4.Rotary switch for audio pair selection

5.Selection switch for BNC or SFP input

6.LED for SFPI/O status

7.12V DC Loop out to power external device

8.12V DC input
