OWNER’S MANUAL ~ AMPLIFIER AM200 Sig
ATOLL ELECTRONIQUEPage 5Page 4
To transform your Power Amplifier from Stereo to Mono, you have to push the switch
a
placed inside the appliance as shown below:
BRIDGE MONO MODE
Warning: be sure that your amplier is unplugged and that no other appliance is
plug-in during this operation.
(Configuration: 1 Preamplifier & 2 bridged mono amplifier).

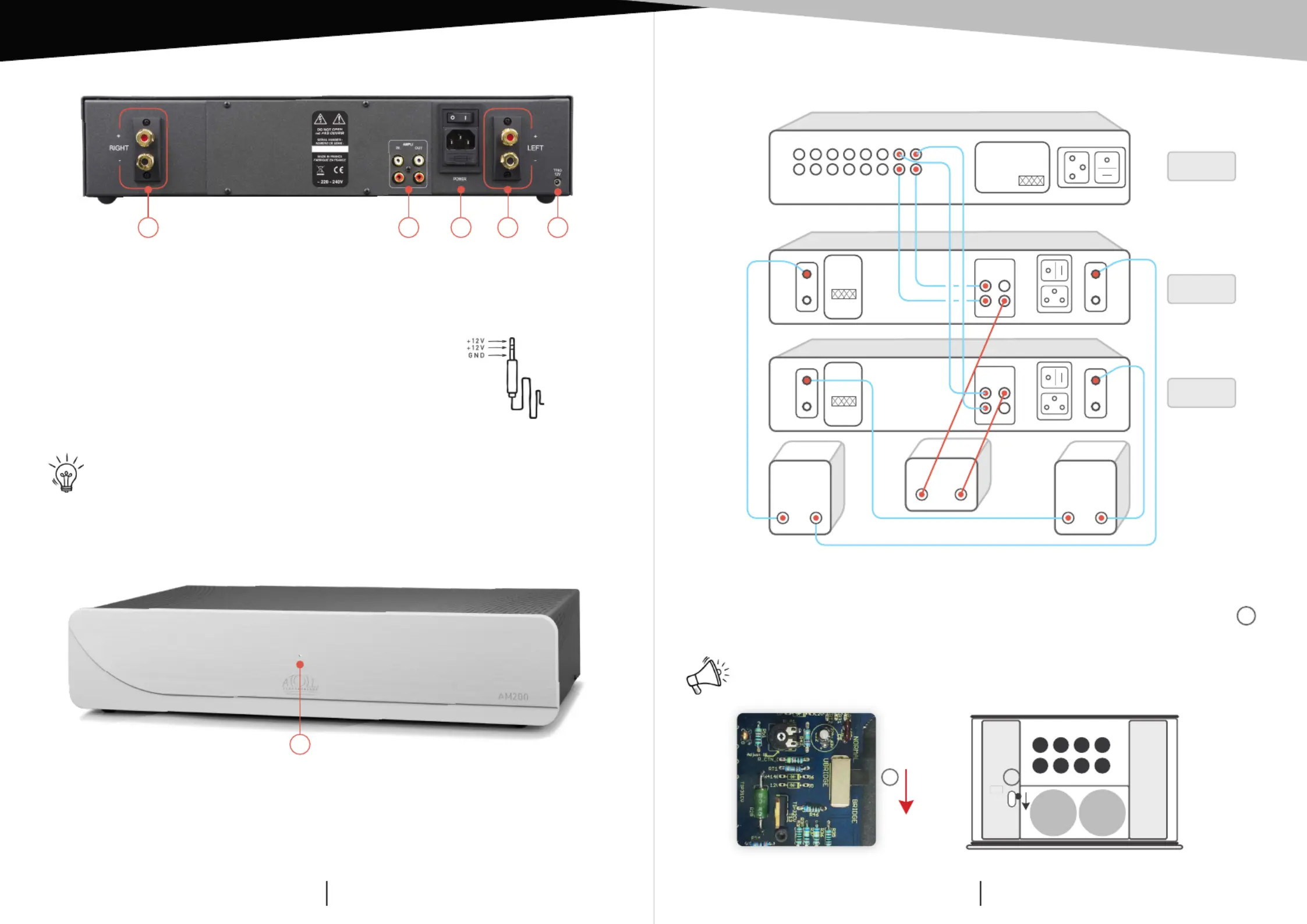

CONNECTINGS
PREAMP
AMP 1
AMP 2
L
R
AMPLI
IN OUT
POWER
LEFTRIGHT
DO NOT
OPEN
NE PAS
OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
MADE IN FRANCE
FABRIQUE EN FRANCE
+
+
–
–
L
R
PRE-OUT
POWER
RIGHT LEFT
DO NOT OPEN
NE PAS OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
MADE IN FRANCE
FABRIQUE EN FRANCE
DO NOT
OPEN
NE PAS
OUVRIR
SERIAL NUMBER
NUMERO DE SERIE
MADE IN FRANCE
FABRIQUE EN FRANCE
+
+
+ – + –
–
–
AMPLI
IN OUT
L
R
a
Internal view
a
LEFT
1) Ampli input and output (line).
2) General power plug and ON/OFF
button (with internal fuse).
3) Left channel output.
4) Right channel output.
5) 12V
Trigger input
(1)
.
6) Power indicator led.
CONNECTINGS + TRIGGER
DETAILS OF FUNCTIONS
4 1 2 3 5
6
(1)
Trigger input: This input allows the control ON/OFF of your
amplifier simultaneously to any device with a 12V Trigger
outlet. For the system to operate, the On/Off button on your
AM200 must remain in the off position (0). If the switch is in
the ON position (I), the amplifier will work but not the Trigger
function.
Trigger cable must be a Male to Male stereo jack plug Ø 3,5 mm (1/8”).
Jack
Ø 3,5 mm
ATOLL ELECTRONIQUE
OWNER’S MANUAL ~ AMPLIFIER AM200 Sig
ATOLL ELECTRONIQUEPage 3Page 6
TECHNICAL DATA
Power Wrms/ch./8Ω (230v):
Power Wrms/ch./4Ω (230v):
Impulse power Wrms/ch.:
Power supply:
Total of capacitors:
Number of inputs:
Switch OFF consumption:
ON consumption:
Input impedance:
Sensitivity:
Signal/Noise ratio:
Distortion at 1 kHz:
Frequency response:
Rising time:
Dimensions:
Weight:
120 W
200 W
300 W
2×340 VA
57 280 µF
2
0 W
20 W - 600 W
220 kΩ
1,77 V
100 dB
0,05%
5 Hz - 100 kHz
1,5 µs
440×295×95 mm
12 Kg
Before any cleaning, switch off your device. Use a soft and dry rag to clean up the
appliance. Never use acetone, white-spirit, ammoniac, or any kind of product containing
an abrasive agent. Never try to clean up inside the appliance.
The guarantee is period from the date of purchase. We recommend you to ask two years
your dealer to fill the guarantee and to conserve it. The guarantee is only available for
appliances that have been used correctly.
E.C. marking certified the conformity with low tension directive 73/23/CEE, directive
CEM 89/336/CEE, and national transpositions.
MAINTENANCE
WARRANTY CONDITIONS
E.C. MARKING
CAUTIONS
ADVISES
• To optimize the performance of your device, you should switch it
on at least half an hour before any listening, the time for the power
stage to reach its ideal working temperature.
• Your device will give you optimal listening quality after this time-
lapse.
• Between two uses, it is, therefore, preferable to let the device on so
that it remains at its optimum temperature.
• At night or when you leave your home, it is best to use the main
switch to turn off the device.
• To optimize the sound quality of your system, we recommend that
you choose good-quality connection cords. Do not hesitate to ask
your specialist dealer for advice.
• Your amplifier is equipped with a temporized switch on. A relay
protects loudspeakers on the output power stage from over-voltage.
• Do not make any connections when your device is powered on.
• Put your device in a dry and well-ventilated place, far from a source
of heat.
• Avoid putting something on your amplifier.
• Strictly respect polarity
+
& , as well as the left and right
connections.
• Avoid any short-cut.
• Do not plug-in two speakers in parallel on the same output.
ATOLL ELECTRONIQUE
OWNER’S MANUAL ~ AMPLIFIER AM200 Sig
ATOLL ELECTRONIQUEPage 7Page 2
YOU WILL FIND
ENCLOSED
– A power amplifier AM200 Signature.
– One power lead.
– This manual with the certificate of guarantee.
You have just bought an amplifier with exceptional audiophile
performance. We really thank you for your confidence in our
products. To get the best part of your amplifier, please read
carefully this manual.
ATOLL ELECTRONIQUE®
est une marque française qui conçoit, fabrique et commercialise
l’ensemble de ses produits.
