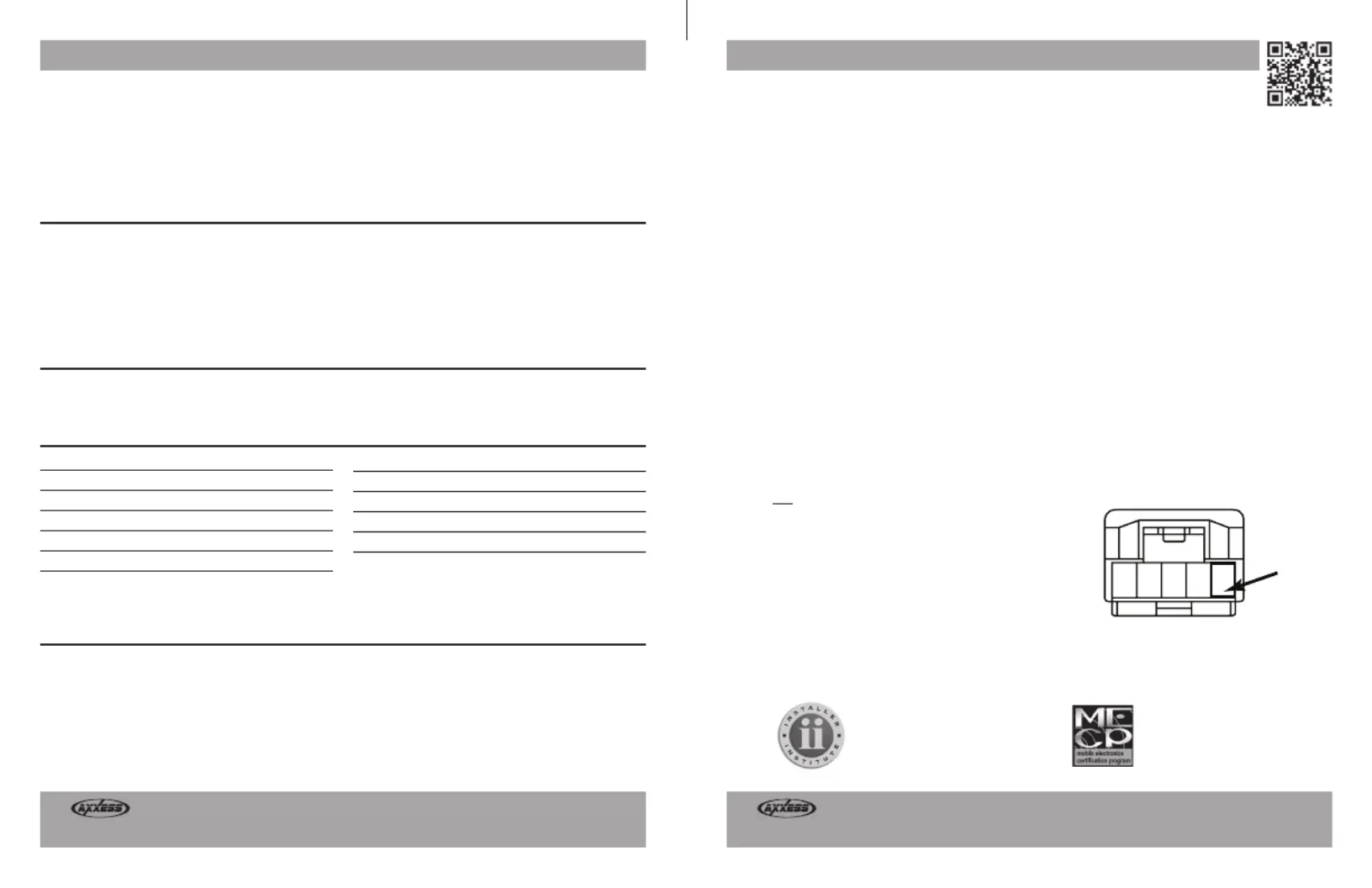

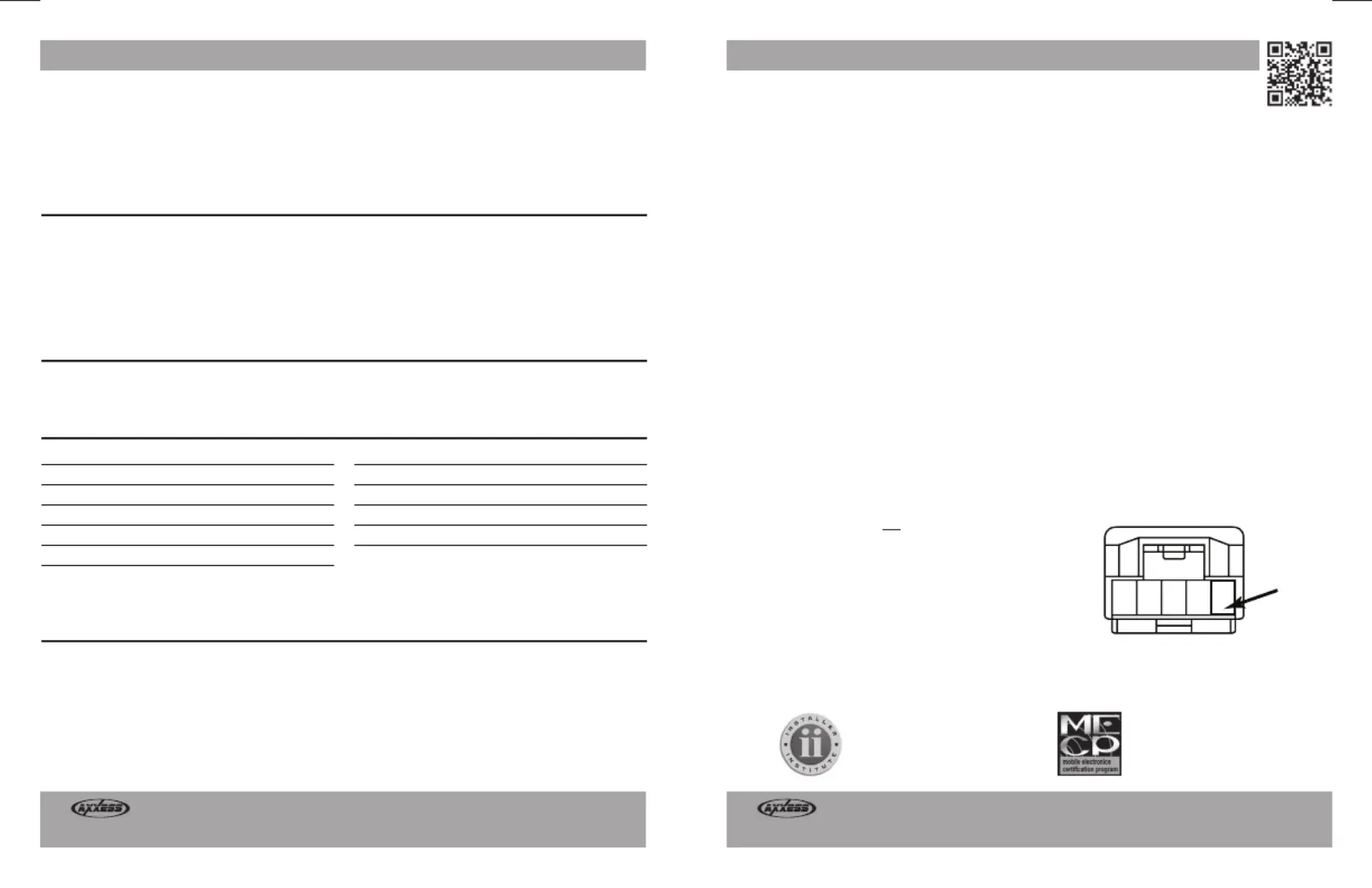

Installation Instructions for AX-TOYCAM2Installation Instructions for AX-TOYCAM2

FEATURES

• Retains the factory back-up camera to an aftermarket radio

• Allows an aftermarket camera to be added to the factory screen*

* Display and navigation model radios only

INTERFACE COMPONENTS

• AX-TOYCAM2 harness

AX-TOYCAM2

Toyota Back-Up Camera Retain/Add-On

2006-2013

TOYOTA

4-Runner (with a factory amp) 2012-2013

4-Runner 2006-2011

Avalon 2011-2012

Camry 2007-2011

Highlander 2008-2012

Prius 2010-2011

Sienna 2008-2010

Sequoia (with a factory amp) 2008-2012

Tundra (with a factory amp) 2007-2013

Venza (with NAV) 2009-2012

• Cutting tool • Tape • Crimping tool

• Connectors (example: butt connectors, bell caps, etc.)

APPLICATIONS

TOOLS REQUIRED

CAUTION!

All accessories, switches, climate controls panels, and especially air bag indicator lights

must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

KPNOWLEDGE IS OWER

Enhance your installation and fabrication skills by

enrolling in the most cognized and spected rere

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for mo information and take steps re

toward a better tomorrow.

Metra recommends MECP

certified technicians

Connections to be made

The AX-TOYCAM2 can be connected two different ways

To retain the factory back-up camera to an aftermarket radio:

• Connect the wire to chassis ground.Black

• Connect the Yellowwire to accessory power. *

• Connect the maleYellow RCA jack to the rear camera input of the aftermarket radio.

•

Connect the reverse wire from the aftermarket radio, to the reverse signal in the vehicle.

• Disregard the loose

Green/Purple

wire, it will not be used in this application.

* It is highly recommended to use the AX-CAM6V (sold separately) to provide the camera

with the proper voltage.

To allow an aftermarket camera to be added to the OEM screen:

• Connect the wire to the ground wire of the aftermarket camera.Black

• Connect the power wire of the aftermarket camera to accessory power.

• Tape off and disregard the Yellowwire, it will not be used in this application.

• Connect the femaleYellow RCA jack to the aftermarket camera.

The following (2) steps are only required if a

wire is present in the factory harnessnot

.

•

If a wire is not present in pin-5 of the

5-pin connector of the factory radio,

unplug the connector, then insert the metal

pin of the loose wire into it. Green/Purple

Connect the harness back into the radio

.

• Connect the other end of the loose

Green/Purplewire to the reverse

wire of the vehicle.

1 2 3 4 5

This is the wire view of the

connector in the vehicle

5 Pin Harness
