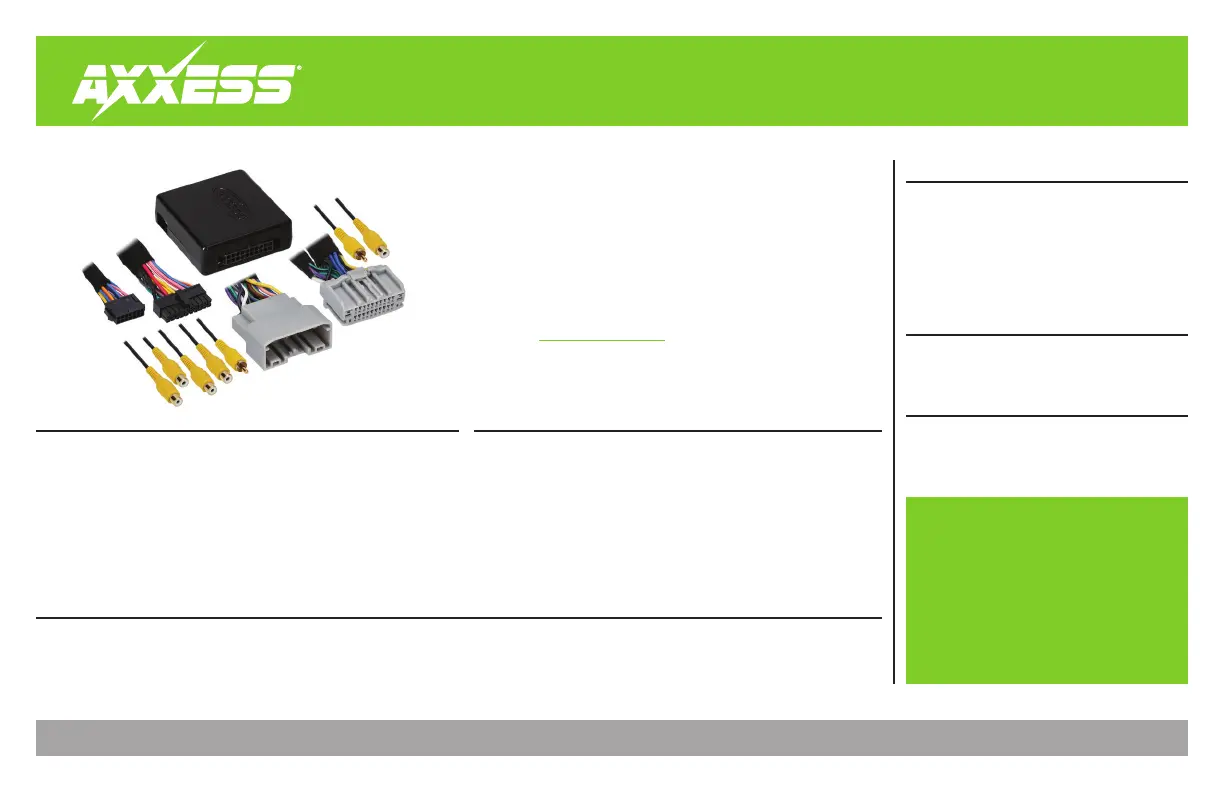

AXAC-CH4

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 2/21/23 INSTAXAC-CH4

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket accessory

before installing this device.

TOOLS REQUIRED

INTERFACE COMPONENTS

REQUIRED ITEMS

TABLE OF CONTENTS

Introduction............................................................2

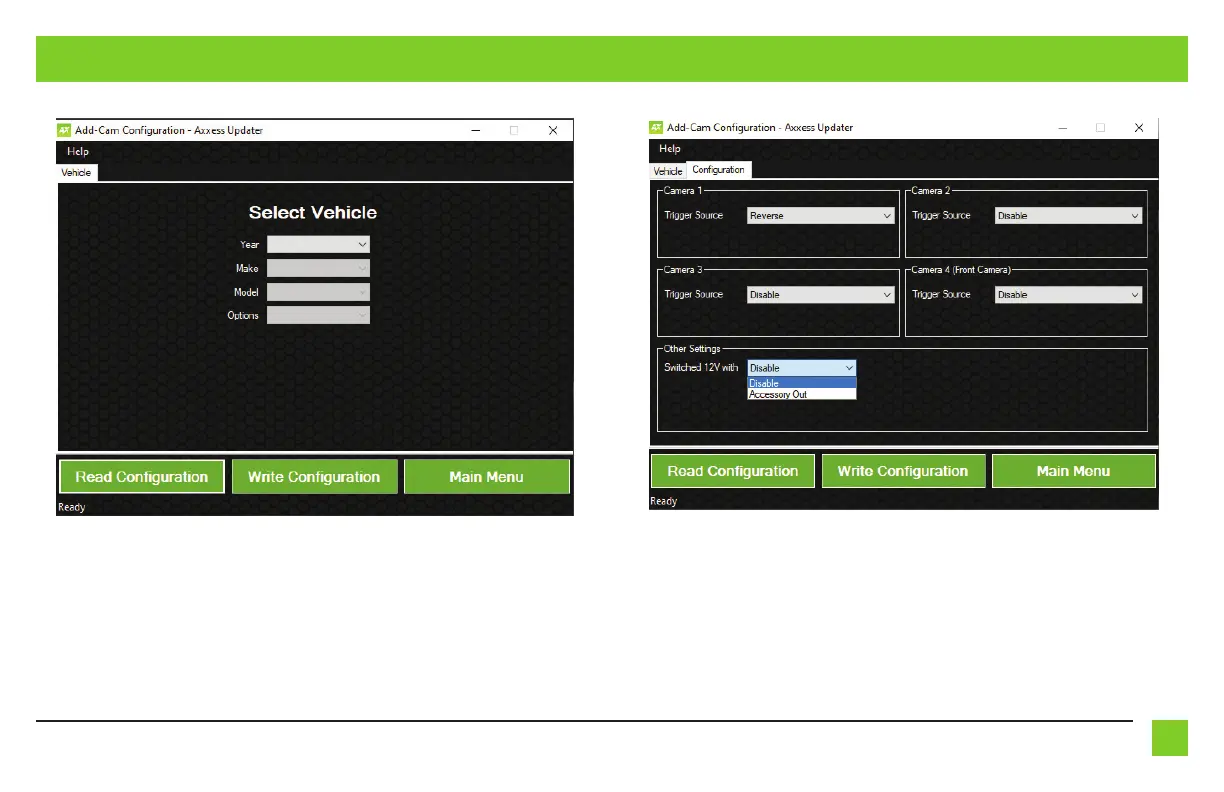

Configuration .....................................................2-4

Connections ............................................................5

Installation .............................................................6

Programming .........................................................6

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

• AXAC-CH4 interface

• AXAC-CH4 interface harness

• AXAC-CH4 vehicle harness (qty. 2)

• 22-pin T-harness

• 22-pin T-harness (cam harness)

Update Cable: AXUSB-MCBL (sold separately)

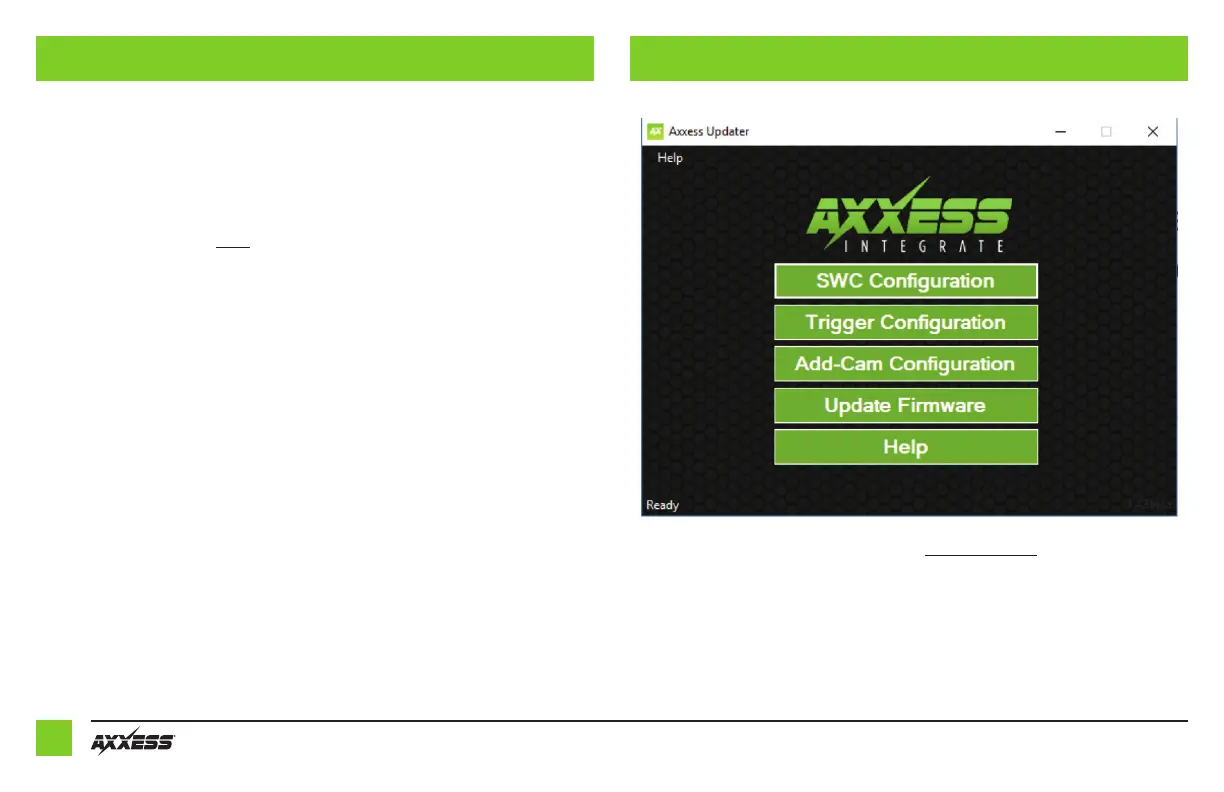

Axxess Updater Program

†

With 8.4-inch U-Connect radio

Chrysler/Dodge/Jeep† Camera Interface

With Pre-Wired

Harness

2007-2018

APPLICATIONS

Chrysler

300 2008-2010

Dodge

Challenger 2008-2014

Durango 2011-2013

Jeep

Liberty 2008-2011

Wrangler (JK) 2007-2018

Note: Only compatible with NTSC cameras.

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications

INTERFACE FEATURES

• (4) Camera inputs

• Reverse signal trigger generated via CAN bus communication

of the vehicle

• Turn signal trigger generated via CAN bus communication

of the vehicle

• (4) Programmable camera control wires

• Micro-B USB updatable
