AXAC-CH3

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 1/31/23 INSTAXAC-CH3

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket accessory

before installing this device.

INTERFACE FEATURES

TOOLS REQUIRED

INTERFACE COMPONENTS

REQUIRED ITEMS

TABLE OF CONTENTS

Introduction............................................................2

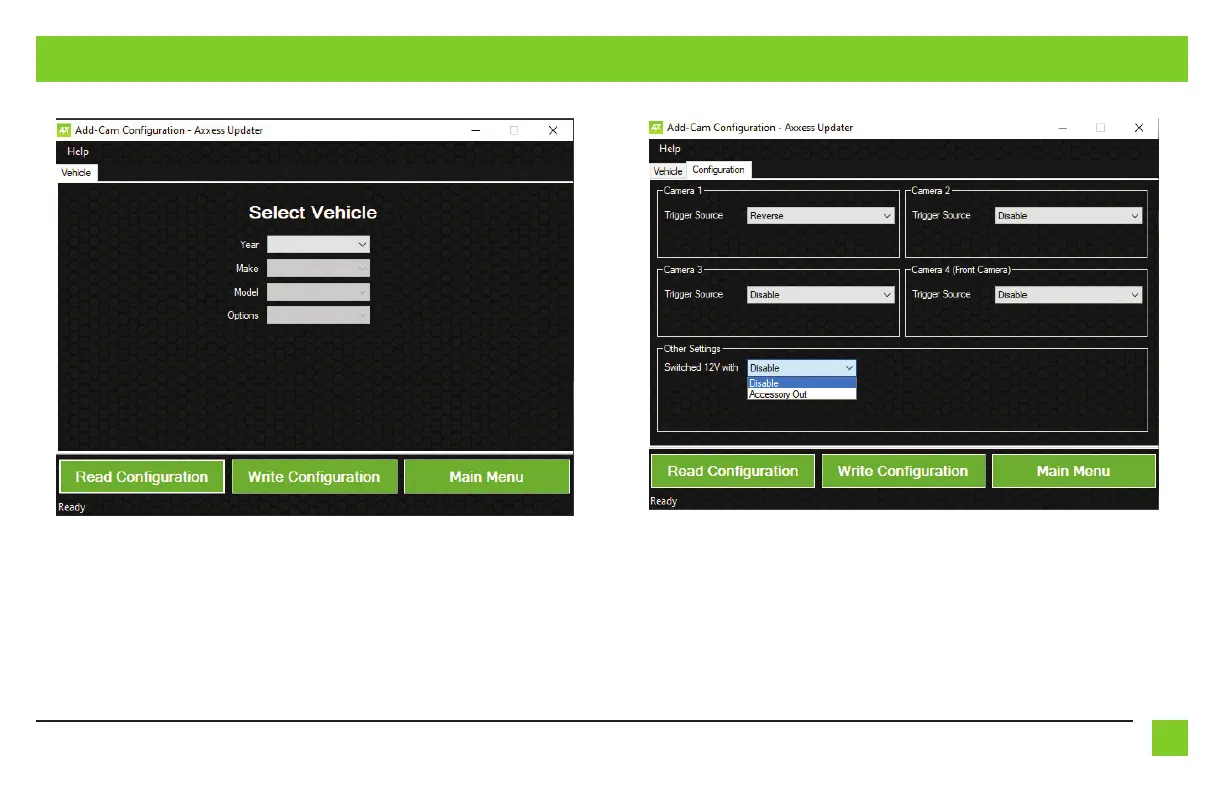

Configuration .....................................................2-4

Connections ............................................................5

Installation .............................................................6

Programming .........................................................6

• (4) Camera inputs

• Reverse signal trigger generated via CAN bus communication

of the vehicle

• Turn signal trigger generated via CAN bus communication

of the vehicle

• (4) Programmable camera control wires

• Micro-B USB updatable

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

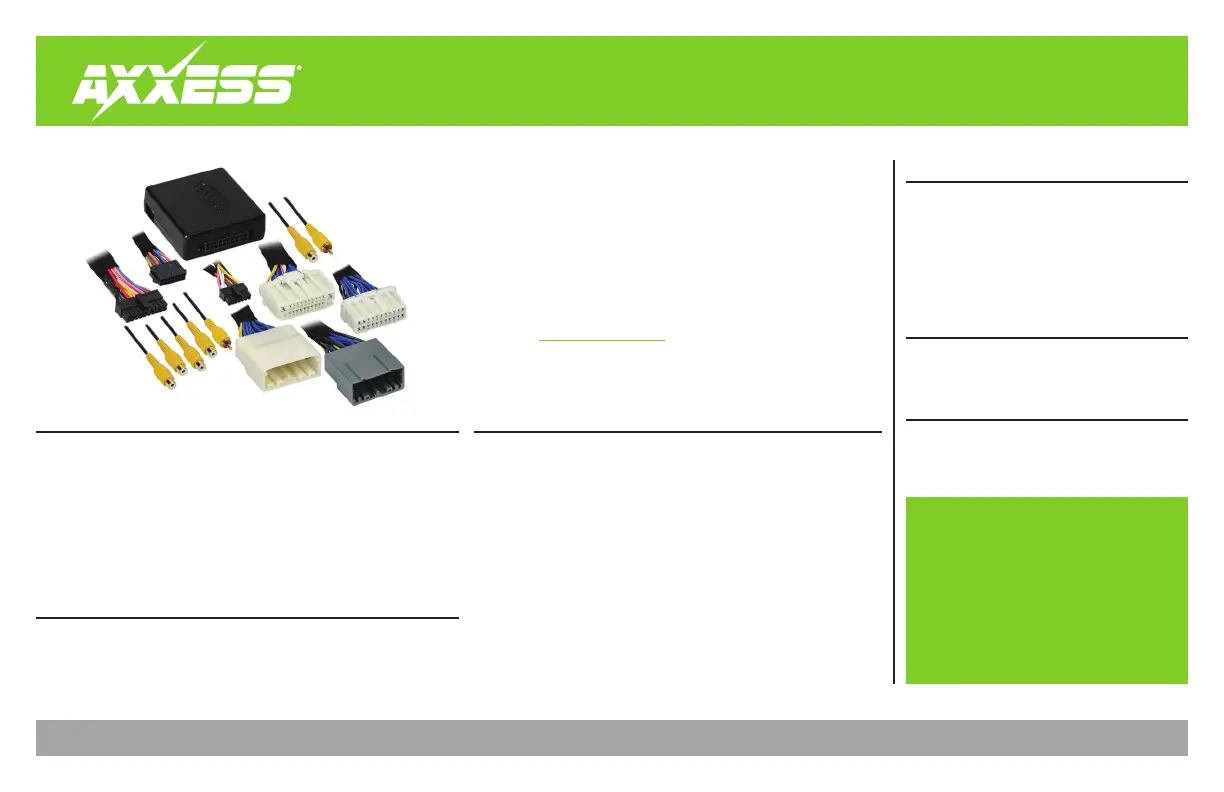

• AXAC-CH3 interface

• AXAC-CH3 interface harness

• AXAC-CH3 vehicle harness (qty. 2)

• 22-pin T-harness

• 22-pin T-harness (cam harness)

Update Cable: AXUSB-MCBL (sold separately)

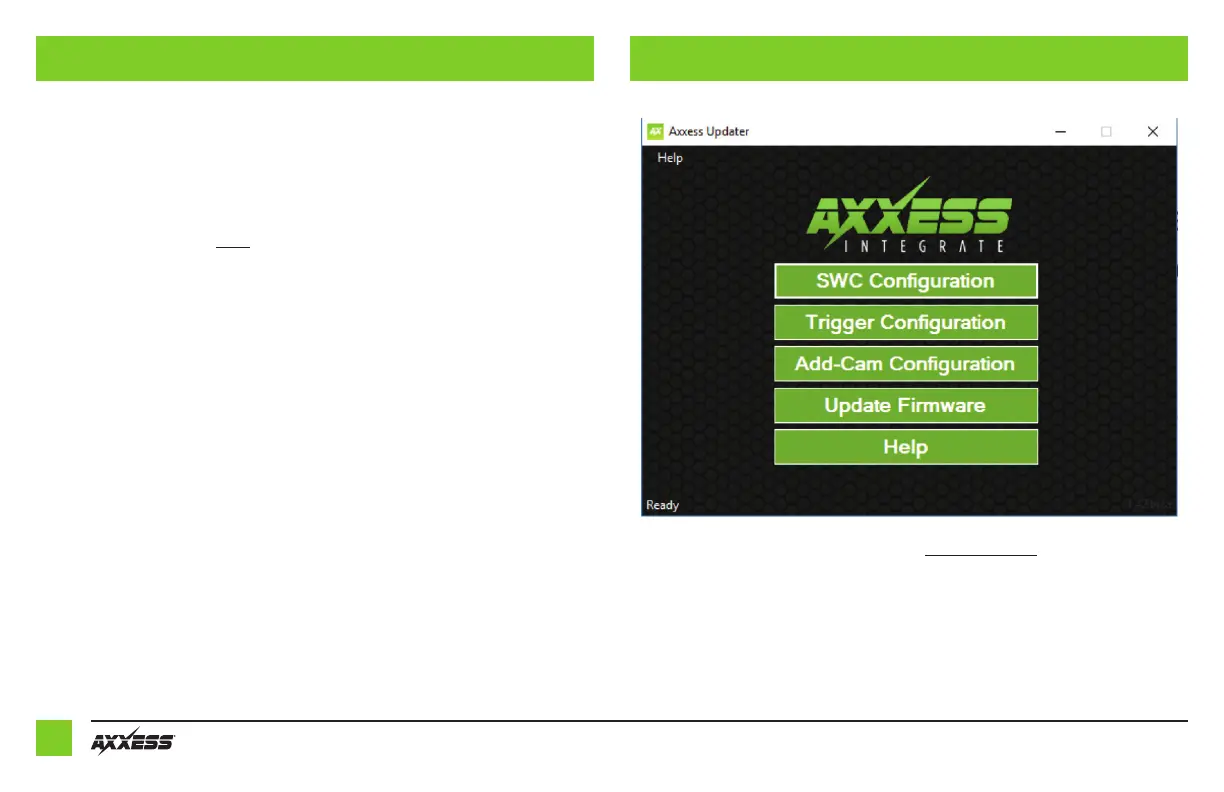

Axxess Updater Program

†

With 8.4-inch U-Connect RB5 or RE2 radio

Chrysler/Dodge

†

Camera Interface With

Pre-Wired

Harness

2011-2018

APPLICATIONS

Chrysler

300 2011-2014

Dodge

Charger 2011-2014

Journey 2011-2018

Note: Only compatible with NTSC cameras.

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications
