AXPIO-CAM2

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/25/24 INSTAXPIO-CAM2

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

TABLE OF CONTENTS

Interface Installation .............................................2

Dash Disassembly ..............................................2-3

Connections ........................................................4-5

Kit Assembly ..........................................................6

Radio Operations ...............................................7-8

Chevrolet Camaro 2019-UP

KIT FEATURES

• Designed for Pioneer DMH-WC5700NEX receivers

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen

(can not be adjusted via the screen)

(cont. on page 2)

KIT COMPONENTS

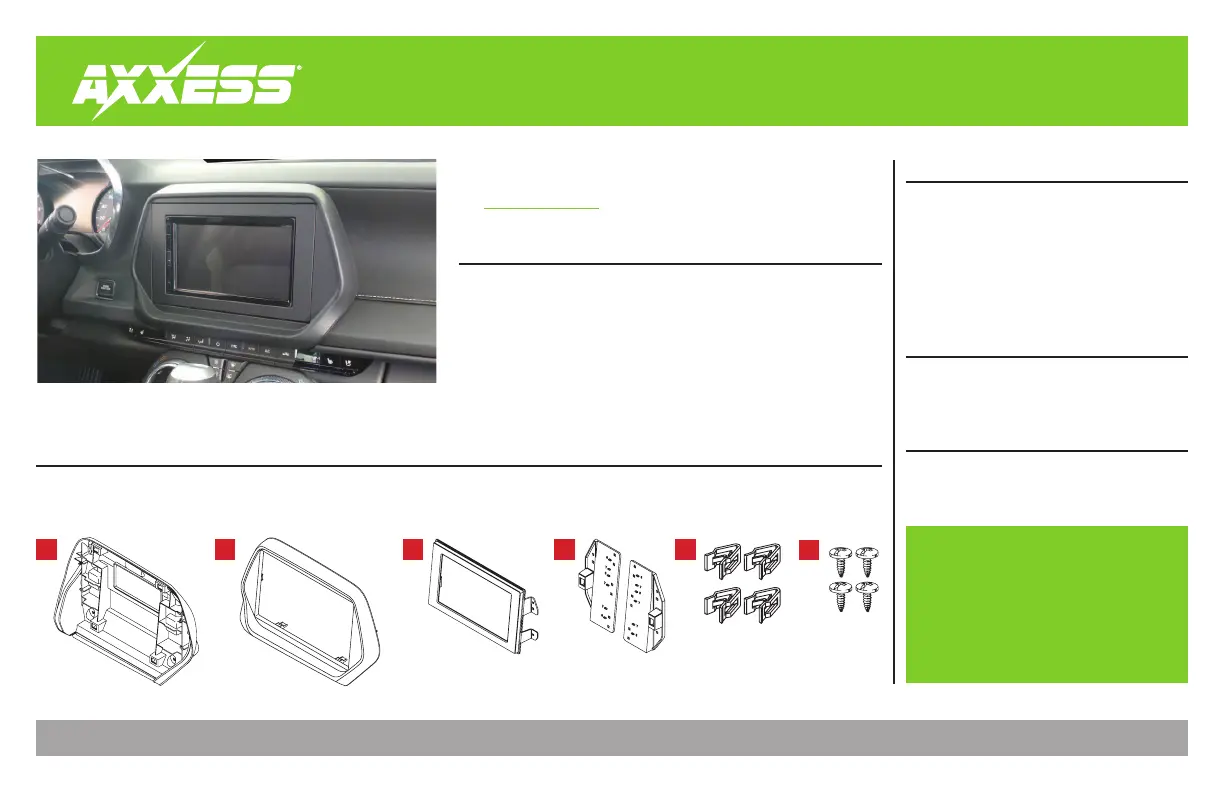

• A) Display Screen Housing • B) Display Screen Trim Bezel • C) Display Screen Trim • D) Brackets •E) Panel Clips • F) Phillips Screws (4)

Not Shown: Radio Interface, LD-GM30-PIO, LD-GM31-PIO, AXEXH-GM30, AXEXH-GM31 LD-GMSWC, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA,

LD-AX-SPK, AXUSB-GM6

Visit AxxessInterfaces.com for more detailed information about the product and

up-to-date vehicle specific applications.

WIRING & ANTENNA CONNECTIONS

•

RGB Extension Cable: Pioneer part # CD-RGB150A

(not sold by Metra)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench

ABDCE

F
