Oldal 1/15

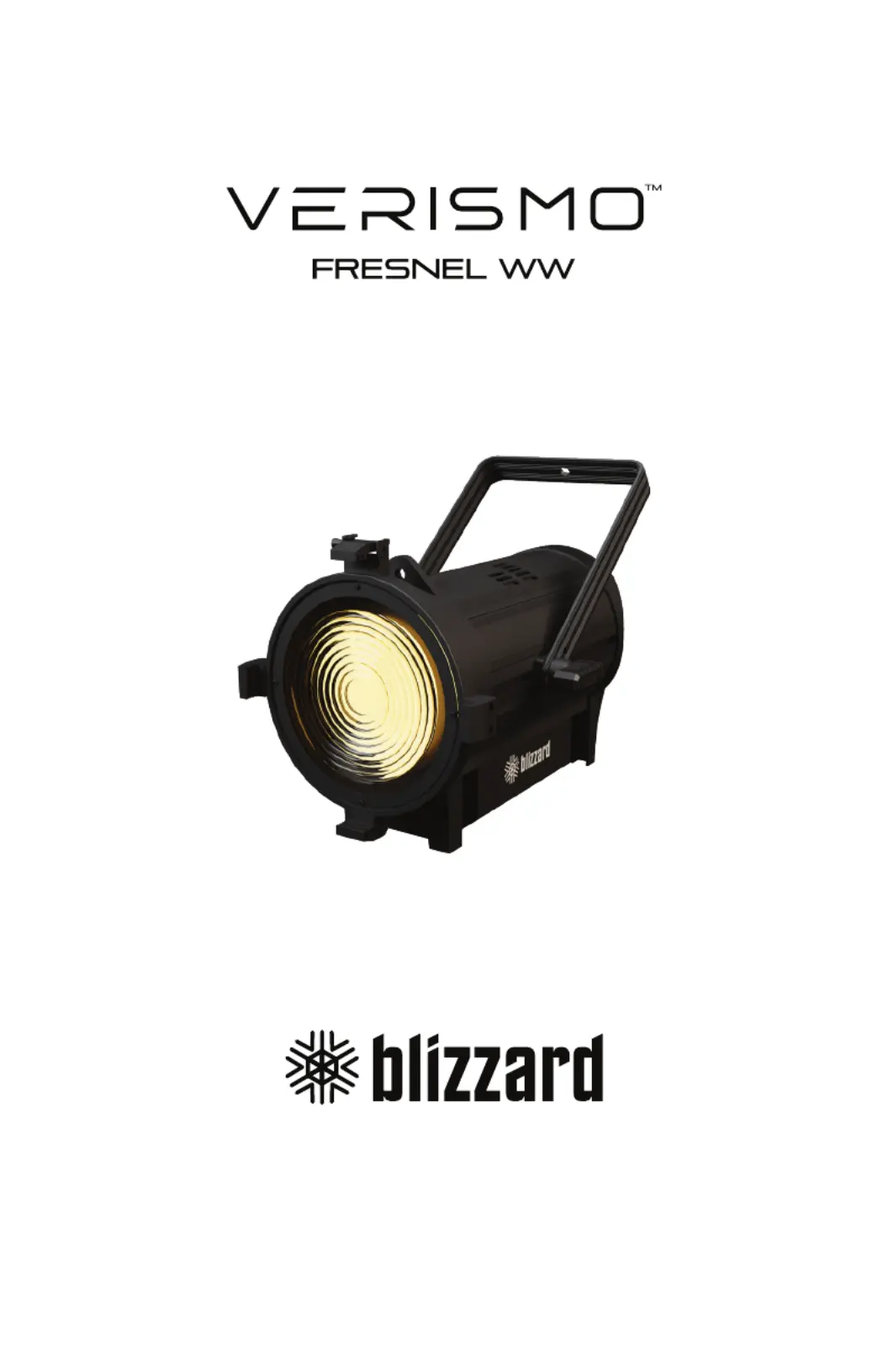

Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2024

Page 2
Verismo™ Fresnel WW - Rev. C © 2024 Blizzard Lighting, LLC
TABLE OF CONTENTS
1. Getting Started 3
What’s In The Box? 3
Getting It Out Of the Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet the Verismo™ Fresnel WW 5
Main Features 5
DMX Quick Reference 5
Verismo™ Fresnel WW Pin-Up Picture 6
The Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch of Verismo™ Fresnel Fixtures 7
Data/DMX Cabling 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh?!? 8
Take It To The Next Level: Setting Up DMX Control 8
Fixture Linking 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
Static Mode 12
Dimming Curves 12
Dimming Speed 12
Dimming Frequency 13
DMX Fail 13
Fan Settings 13
System Reset 13
DMX Values In-Depth 13
5. Appendix 14
Keeping Your Verismo™ Fresnel As Good As New 14
Returns (Gasp!) 14
Shipping Issues 14
Tech Specs! 15

Page 3
Verismo™ Fresnel WW - Rev. C © 2024 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• Verismo™ Fresnel WW Fixture
• Power Cable
• This Lovely User Manual
Getting It Out Of the Box
Congratulations on purchasing the Verismo™ Prole WW. Now that you’ve got
your xture, you should carefully unpack the box and check the contents to
ensure that all parts are present and in good condition. If anything looks as if
it has been damaged in transit, notify the shipper immediately and keep the
packing material for inspection. Again, please save the carton and all packing
materials. If a xture must be returned to the factory, it is important that the
xture be returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run
o a rheostat (variable resistor) or dimmer circuit, even if the rheostat
or dimmer channel is used solely for a 0% to 100% switch.
Warning! All xtures must be connected to circuits with a suitable
Ground (Earthing).
Getting A Hold Of Us
If something happens to go wrong, visit blizzardpro.com/support and
open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information contained in this document are subject to change without
notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions
that may appear in this user manual. We reserve the right to update the existing, or create
a new document to correct any errors or omissions at any time. You can download the
latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 1/24/2022 J. Thomas 1/29/2024
