EC2741

COMPUTER WORK STATION /

PROJECTOR TABLE

Assembly Instructions

Parts List

Qty.Part No.Description

1022-2014Top Section Assembly

(with Modesty Panel/Wire Bin)

1022-2013Leg Assembly with CPU Shelf

1022-1694Leg Assembly

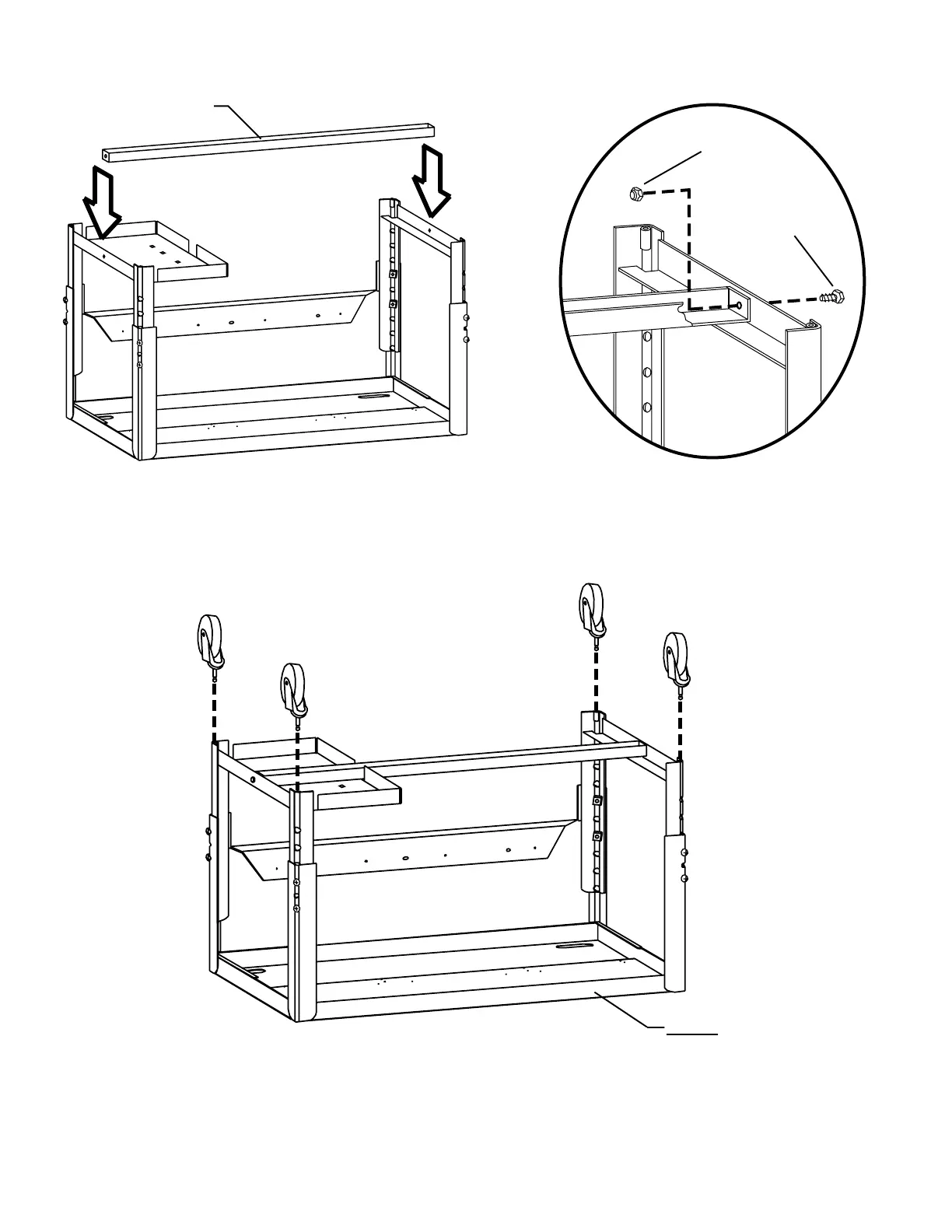

1010-2336Cross Brace

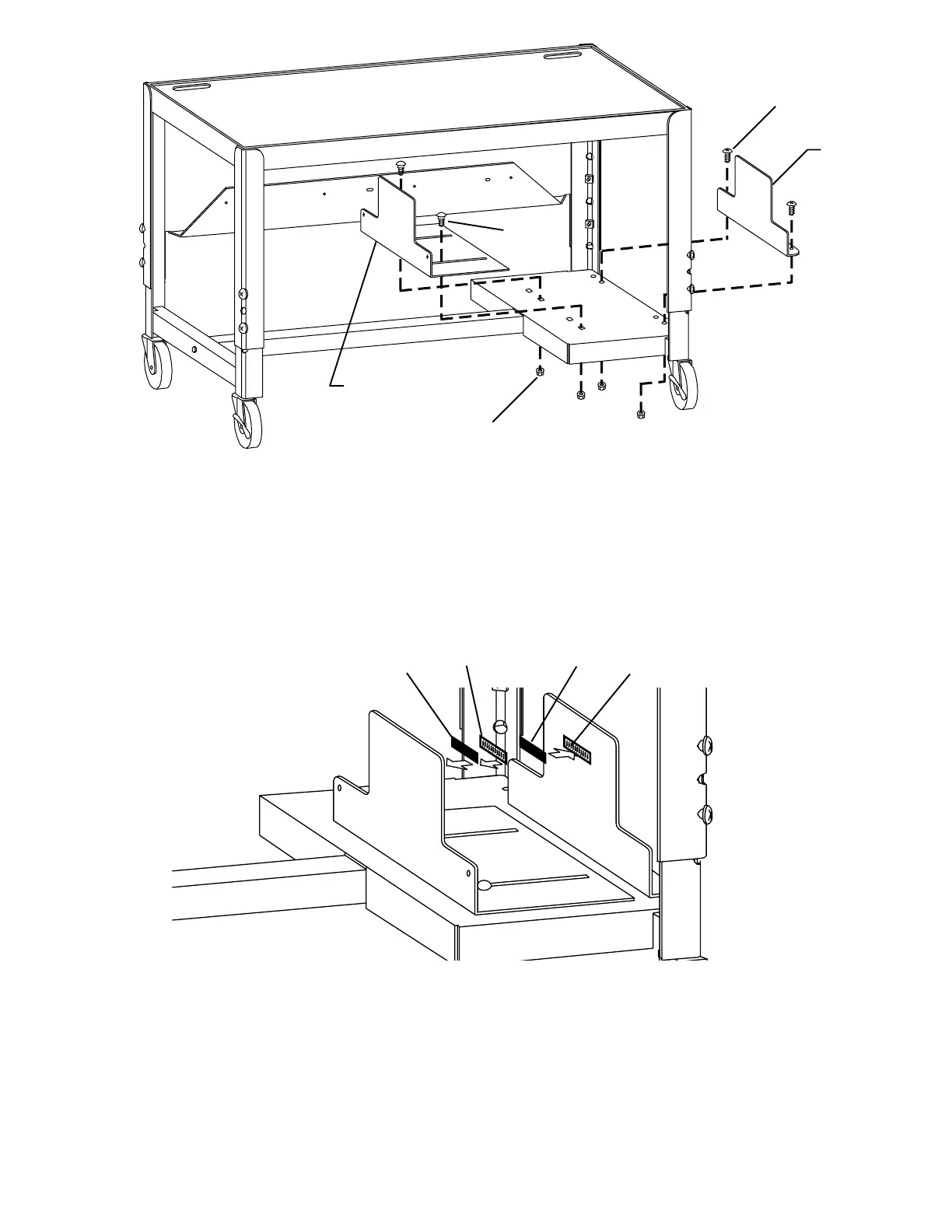

1010-3273CPU Side Bracket - Stationary

1010-3058CPU Side Bracket - Adjustable

2015-00024" Swivel Caster-Rear

2015-00034" Swivel Caster with Brake-Front

Hardware List

Qty.Ref.Part No.Description

2AA030-03075/16-18 x 5/8" Hex Head Bolt

2BB030-04215/16-18 Hex Nylock Nut

8CC030-02531/4-20 x 3/4" Combo Head Screw

8DD030-01201/4-20 Square Nut

2EE030-02721/4-20 x 1/2" Carriage Bolt

2FF030-03251/4-20 x 1/2" Combo Truss Screw

4GG030-02561/4-20 Flange Nut

2HH031-1822Velcro - Hook

2 I I031-1823Velcro - Loop

Tools Required

Phillips Screw Driver

1/2" Open End Wrench

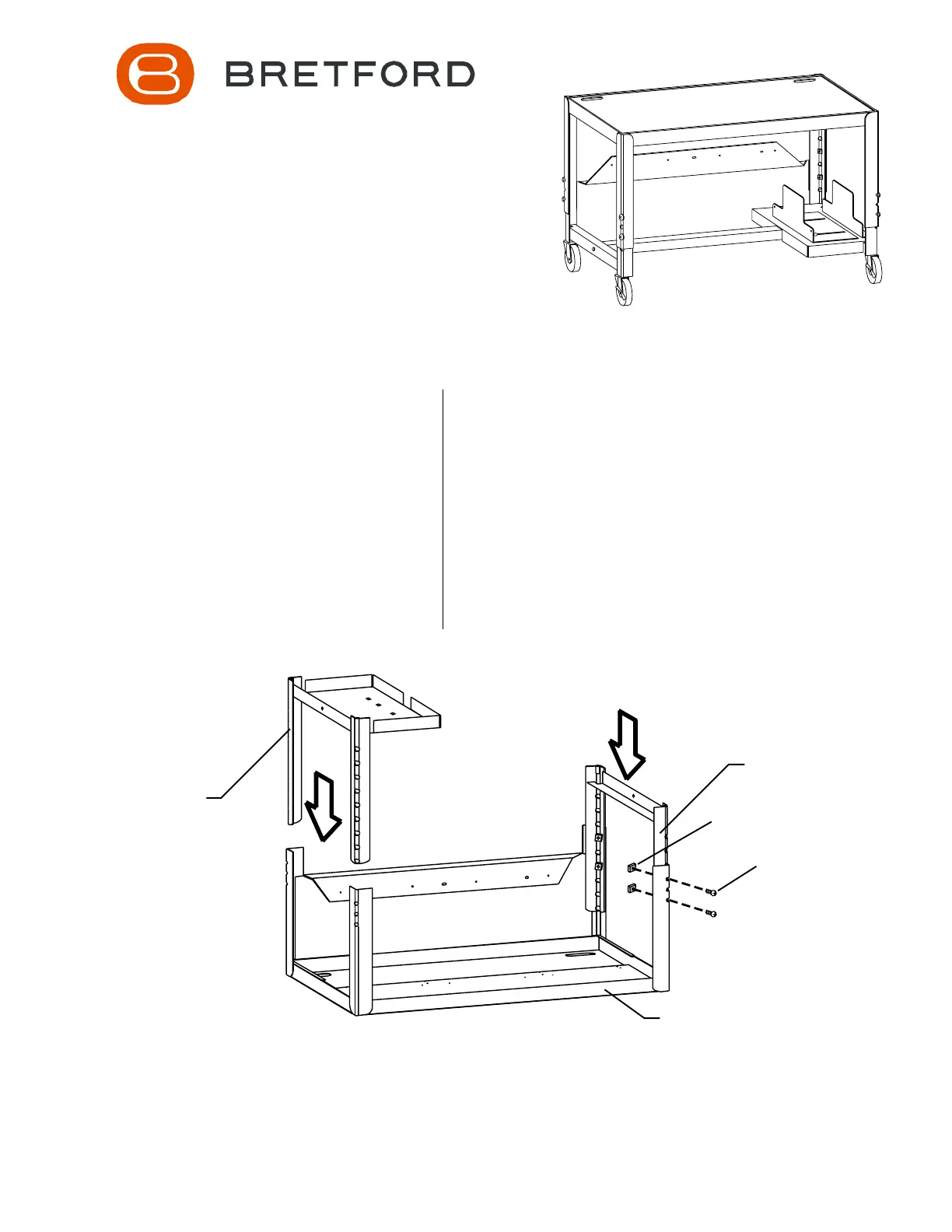

Step 1

With the top section assembly placed face down on a carpeted surface (or cardboard), position the modesty

panel toward the rear. Then determine whether the leg assembly with the cpu shelf will be located on the left or

right side of your table (when turned over upright). The above view shows a right hand shelf location. Slide one leg

assembly into the leg extensions from the top section assembly as shown. Align the mounting holes until the

desired height is achieved. Note: the table height is adjustable from 27" to 41" when casters are installed.

Once the height is set, install 1/4-20 screws (CC) and 1/4-20 nuts (DD). Install the second leg the same as the

first leg. Tighten securely.

Leg Assembly

w/ CPU Shelf

Leg Assembly

DD

CC

Top Section Assembly
