ECILS1 / ECILS1FF

Mobile Computer Workstation

1

Assembly Instructions

Qty Part# Description

1 022-2695 Top Shelf w/ grommet hole

1 010-4513 Slide Out Shelf

1 010-3953 Bottom Shelf

2 010-4506 Shelf Support Brackets

4 022-3085 Leg Assemblies

1 022-2309 Wire Tray

2 015-0002 4” Casters w/o Lock

2 015-0003 4” Casters w/ Lock

1 030-1191 14” Full Extension Slide

1 ECF6 Electrical Unit - ECILS1FF ONLY

PARTS LISTHARDWARE LIST

Ref Qty Part# Description

AA 16 030-0300-21S 5/8” Square Head Bolts

BB 16 030-0002 5/16-18 Hex Serrated Nuts

CC 12 030-0304 1/4-20 x 5/8” Combo Screws

DD 8 030-1228 8-32 x 1/4” Combo Truss Hd Screws

EE 4 030-1203 #8-32 Acorn Nuts

FF 2 020016 #6-32 Hex Nuts - ECILS1FF ONLY

GG 2 020017 #6-32 x 1/4” Screws - ECILS1FF ONLY

HH 4 02236 8-32 Hex Flange Nuts

1 010-1106 Hex Wrench

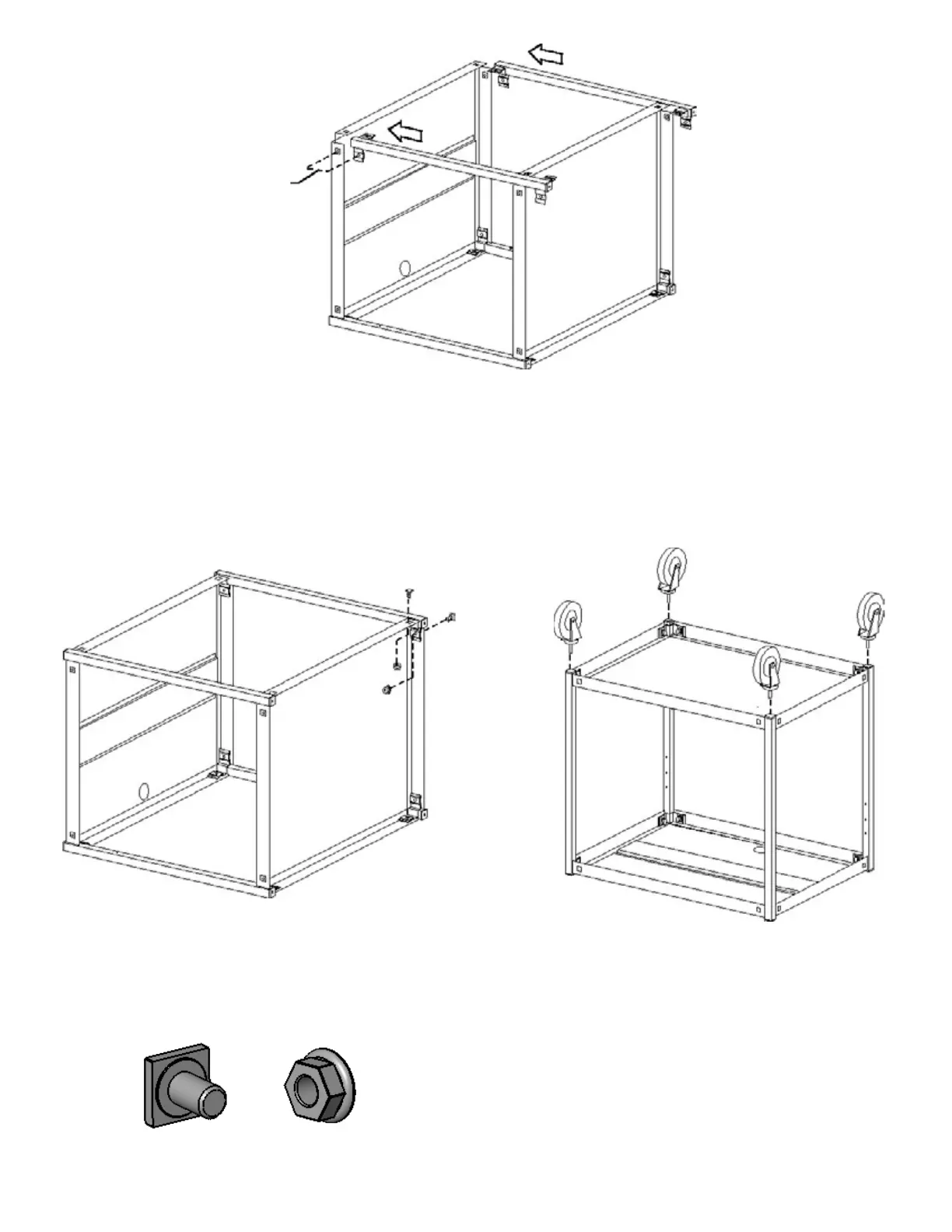

Lay 2 legs on a carpeted surface as shown in Figure 1. Slide the top shelf (with hole at rear) and

bottom shelf (with 4 square holes toward front) onto the legs so that the brackets are inside the

shelves (see Figure 2).

Align shelf embossed mounting

hole with leg mounting bracket.

2 corners each shelf.

STEP 1

BOTTOM

TOP

Hex Wrench (Provided)

Phillips Screwdriver

Rubber Mallet

TOOLS REQUIRED

FIGURE 1

FIGURE 2
