Assembly Instructions

EC4X

COMPUTER WORKSTATION

WITH MOUSE PAD

HARDWARE LIST

QtyPart#Description

2010-1863Top & Bottom Shelves

1010-4511Slide Out Shelf

1010-4512Slide Out Shelf w/Cut Out

4010-4505Shelf Support Brackets

1010-2658Mouse Pad Mounting Bracket

1022-1397Right Front Leg Assembly

1022-1398Left Front Leg Assembly

1022-1399Right Rear Leg Assembly

1022-1400Left Rear leg Assembly

1022-1825Mouse Pad Assembly

2015-00024" Casters w/o Lock

2015-00034" Casters w/ Lock

2030-119114" Full Extension Slide

RefQtyPart#Description

AA16030-03005/8" Square Head Bolts

BB16030-00025/16-18 Hex Serrated Nuts

CC16030-03041/4-20 x 5/8" Combo Screws

DD2030-04282 11/32" Washers

EE1030-0427Nylon Washer

FF1030-03061" x 21/64" Washer

GG1030-04215/16-18 Hex Lock Nut

HH2030-03251/4-20 x 1/2" Combo Screws

JJ16030-12288-32 x 1/4" Combo Truss Screws

KK8030-1203#*-32 Acorn Nuts

LL2010-2841PBMouse Pad Brackets

MM8022368-32 GFlange Whiz Lock Nuts

NN1010-3487Spacer Shim

1010-1106Hex Wrench

PARTS LIST

TOOLS REQUIRED

Hex Wrench (Provided)

Phillips Screwdriver

Rubber Mallet

STEP 1

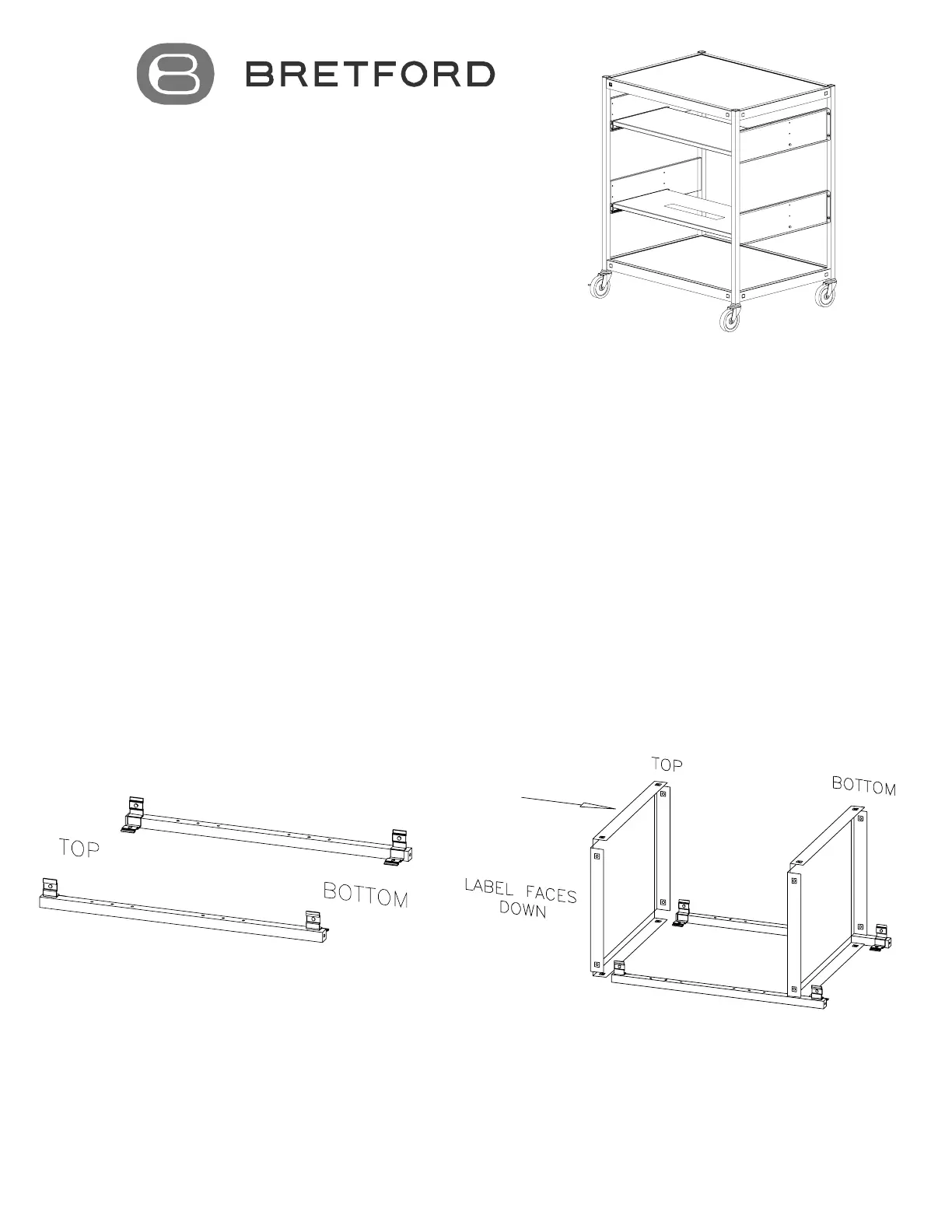

Lay the front legs on a carpeted surface (they are stamped "LF" and "RF") with the holes

facing up and the brackets facing up and in as shown in Figure 1. Slide the top and bottom

shelves onto the legs so that the brackets are inside the shelves (Figure 2).

FIGURE 2

FIGURE 1


