Gage Pressure Transducer

Installation and Operation

#NSA-A/GP 10Harness, NSA-A/GP 2Harness, NSA-GP(0-100G)--P, NSA-GP(0-15G)--P, NSA-GP(0-200G)--P 202020

NSA-GP(0-300G)--P, NSA-GP(0-500S)--P, NSA-GP(0-50G)--- 11/14/2019 202020P

Specications subject to change without notice.

Catalog No. --- Page of 118087590114

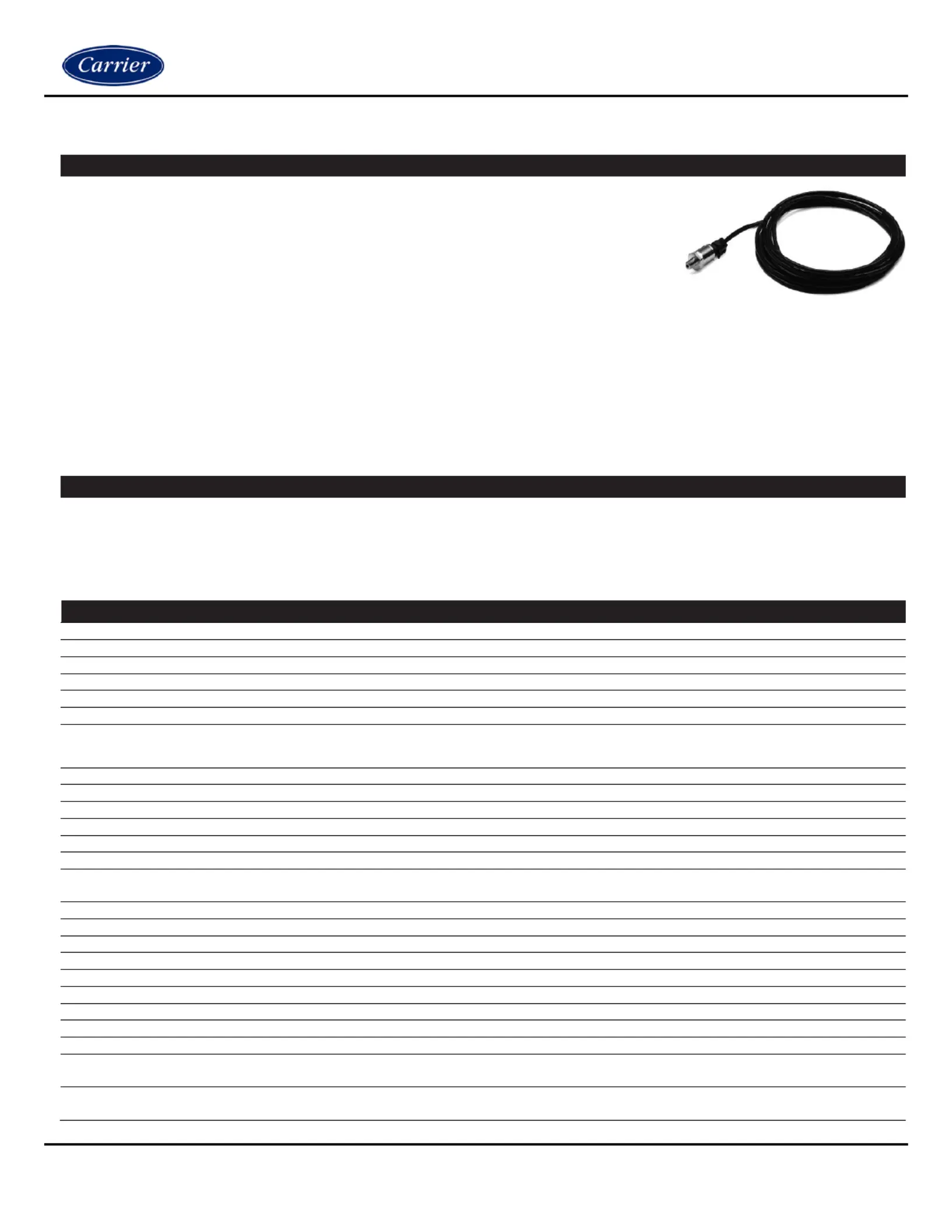

Overview

The Gage Pressure Transducer (Air, Gases, & Liquid) Series is designed to provide

excellent accuracy and reliability in commercial, industrial, and process control

applications where performance is critical. The bulk micro-machined transducer features

a stainless steel diaphragm with welded construction that contains no O-rings, which

makes them compatible with any gas or liquid compatible with 304L stainless steel.

Some of the compatible gases and liquids include refrigerants, glycol, motor oil, diesel,

hydraulic uid, brake uid, water, waste water, Hydrogen, Nitrogen and air. The GP

Series transducers can also be ordered in an optional NEMA 4 rated, weatherproof metal enclosure or a NIST Calibration

Certicate. Accessory items such as pressure snubbers and pigtail syphons are available to protect the transducers from

line pressure surges (pulsations) or extreme operating temperatures. This series features Packard connectors and

separate harnesses allowing for installation flexibility.

Applications: Refrigeration, Fuel Cells, Pumps, Hydraulics, Compressors, Robotics, Pneumatics, Agriculture, Spraying

Systems, Process Control, Flow, Hydrogen Storage, Steam Lines, Boilers, Chillers

Part Numbers

NSA-A/GP 10Harness NSA-A/GP 2Harness NSA-GP(0-100G)--P NSA-GP(0-15G)--P 2020

NSA-GP(0-200G)--P NSA-GP(0-300G)--P NSA-GP(0-500S)--P NSA-GP(0-50G)--P 20202020

Specications

Supply Voltage:

250 Ohm Load500 Ohm Load: +13 to 30 VDC | : 18 to 30 VDC

Reverse Polarity Protection:

+/- 16 V over 5 minutes

Maximum Load Resistance:

800 Ohms @ 24 VDC | : (Supply VDC 8 VDC) / 0.020A Formula–

Supply Current:

25 mA minimum

Output Signal:

4 to 20 mA (2-Wire, Loop Powered)

Response Tim e:

< 1 ms

Pressure Ranges:

NSA-GP(0-100G)--P20: 0-100 psig (689 kPa) | NSA-GP(0-15G)--P20: 0-15 psig (103 kPa)

NSA-GP(0-200G)--P20: 0-200 psig (1379 kPa) | NSA-GP(0-300G)-20-P: 0-300 psig (2069 kPa)

NSA-GP(0-500S)--P20: 0-500 psis (3447 kPa) | NSA-GP(0-50G)--P20: 0-50 psig (345 kPa)

Accuracy

1

@ 22ºC (71.6ºF):

15 to 60 psig75 to 300 psig500 psis: < +/- 1.0% FS | : < +/- 0.5% FS |

3

: < +/- 0.5% FS

Thermal Error

2

(-40º to 105ºC):

15 to 60 psig75 to 300 psig500 psis: < +/- 1.0 FS | : < +/- 0.5% FS |

3

: < +/- 0.5% FS

Stability (250 Hours @ 225ºF (125ºC)):

+/- 0.03% FS @ 0 PSIG; +/- 0.12% FS @ 1000 PSIG

Proof Pressure:

15 to 300 psig500 psis: 3x FS | : 3x FS

Burst Pressure:

15 to 300 psig500 psis: 3x FS | : 3x FS

Thermal Shock:

300 Cycles (105ºC to -40ºC, 0.5 hr soaks @ Temp. (2s Transfer))

Vibration (100 to 2000Hz, 20g

Sinusoidal, 3 Axes):

144 Hours

Operating Temperature Range:

-40 to 221ºF (-40 to 105ºC)

Storage Temperature Range:

-40 to 176ºF (-40 to 80ºC)

Operating Humidity Range:

0 to 95% RH, non-condensing

Media Types:

Any gas or liquid compatible with 304L Stainless Steel

Transducer Housing Material:

Stainless Steel

Process Fitting Material | Thread Size:

304L Stainless Steel | 1/4”-18 NPT

Recommend Torque Specication:

150 lbs-in (16.95 Nm)

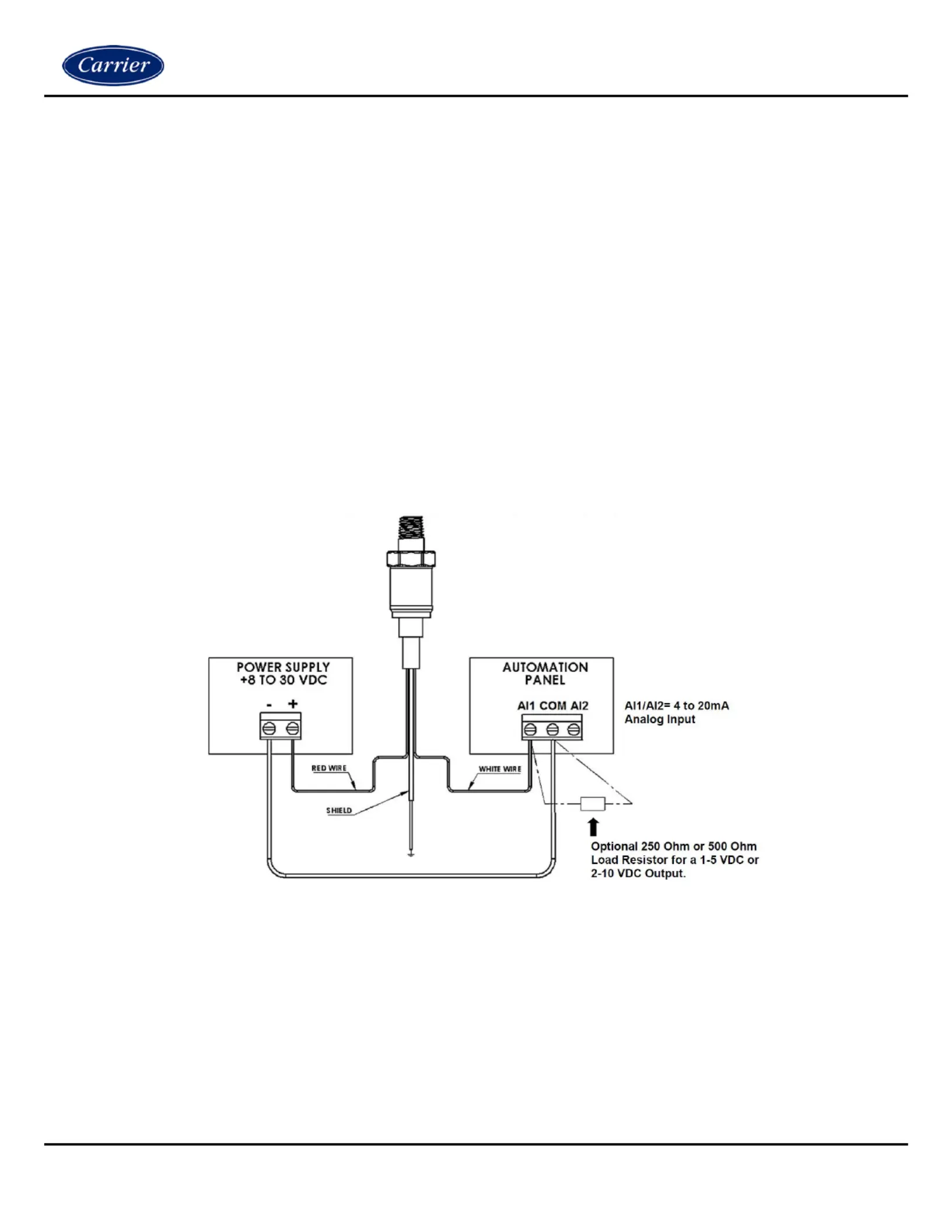

Wiring Connections:

Packard Connector (Cables ordered separately)

Approvals:

EMC Compliance: 10 V/m (EN61000-4-3), CE, RoHS2, WEEE, ISO 9001

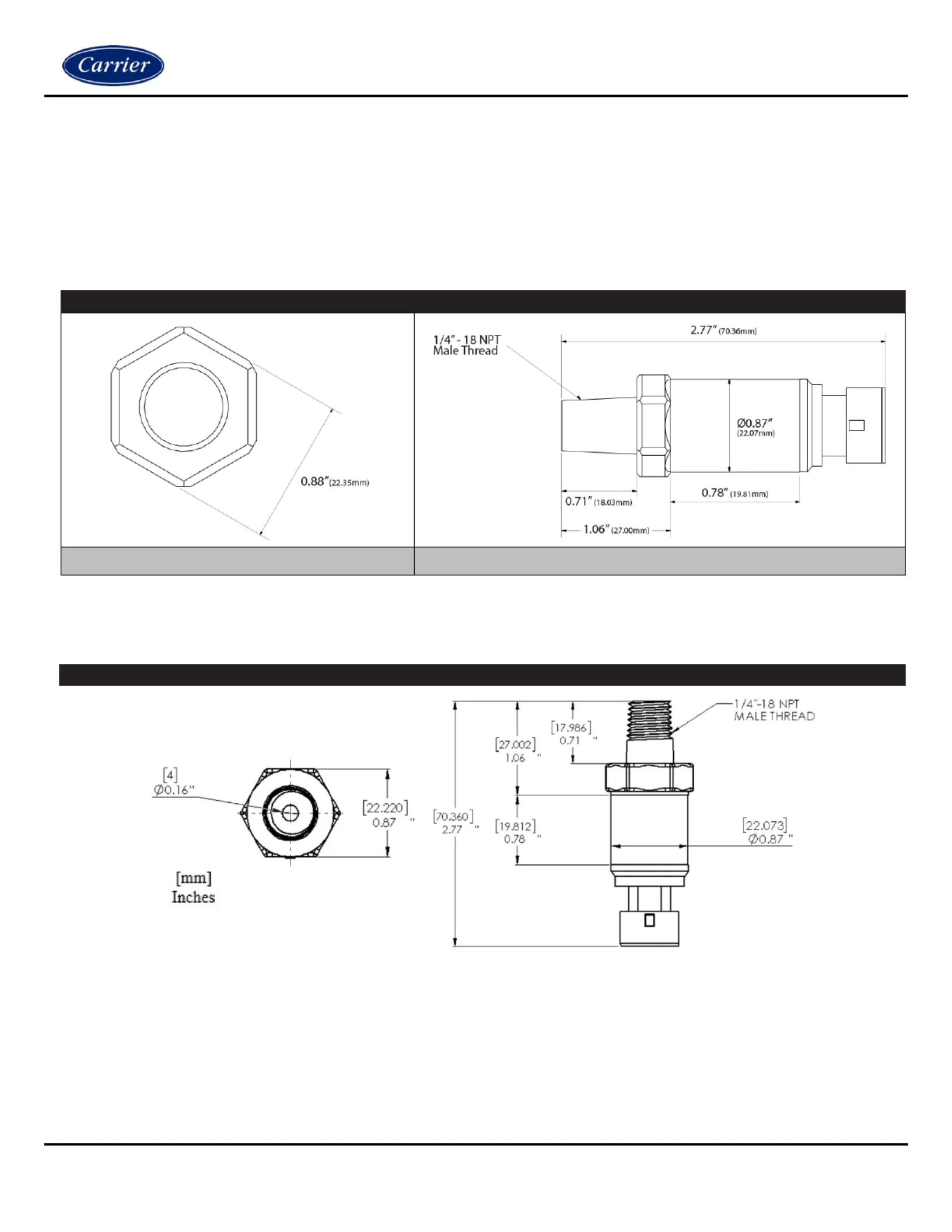

Product Dimensions (Length x

Diameter):

2.60” (66.6 mm) x 0.87” (22.23 mm)

Product Weights:

NSA-A/GP Series Transducer: 0.30 lbs. (0.13 kg)

NSA-A/GP 2Harness NSA-A/GP 10Harness: 0.09 lbs. (0.04 kg) |: 0.32 lbs. (0.14 kg)
