Oldal 1/2

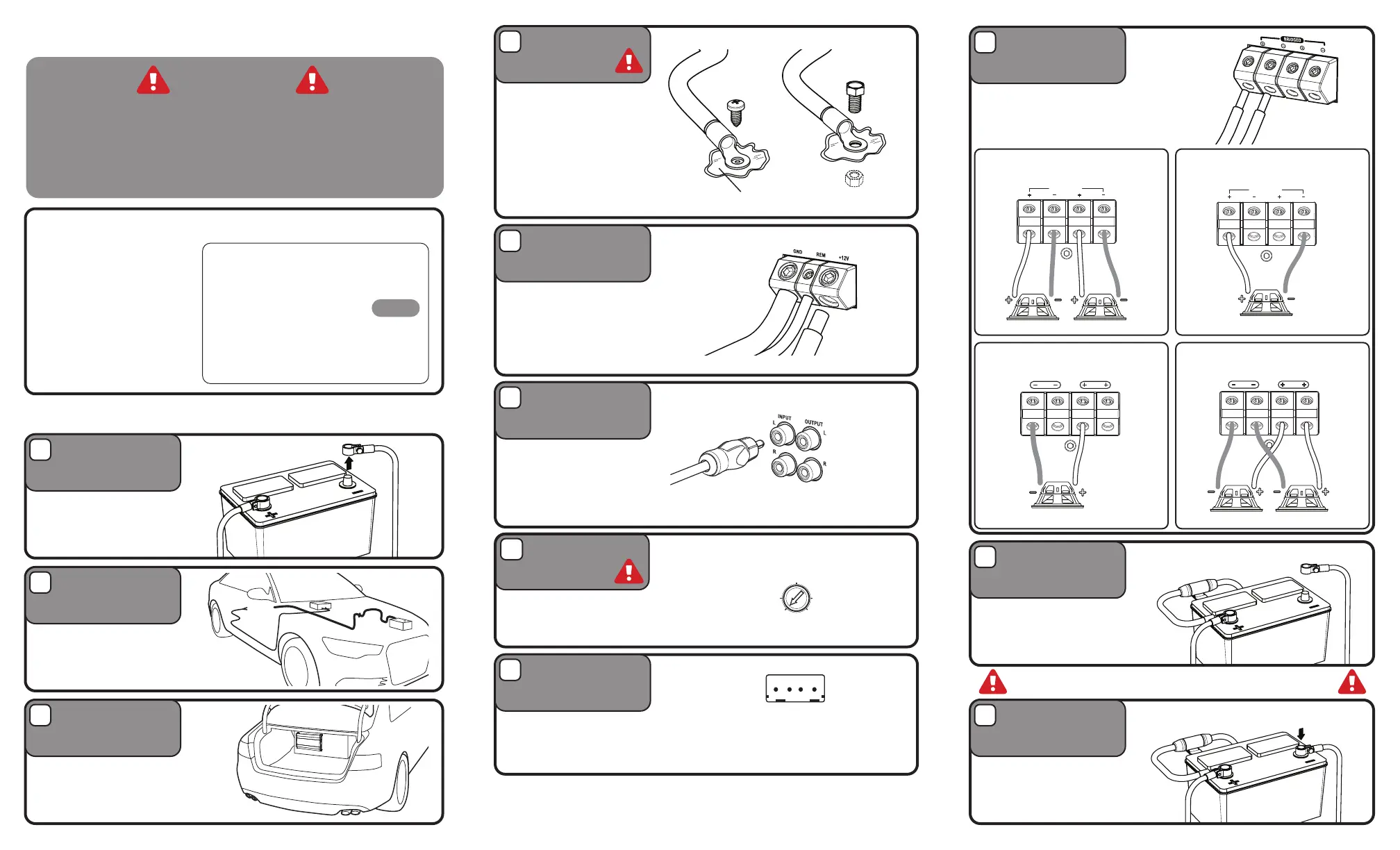

Place terminal in a secure
position so that it won’t
accidentally contact the
negative battery post
Power / Ground
cable size
It is critical to use the proper
power and ground cable. Select
the size listed here for your
amplier model. Always use high
quality copper cable.
Cable size recommendations for
multi amp systems are available
on our website.
Properly route power,
speaker and RCA cables
through the vehicle.
Choose a mounting location
that will provide adequate air
ventilation. Mount the amplier to
a secure surface. Do not mount
the amplier upside down.
Bare metal
Connect the RCA cables to
the INPUT connectors. The
OUTPUT can be used to
provide input for a second
amplier.
Connect the power cable to the
positive battery terminal. The
power cable must be fused
within 18 inches of the battery
terminal.
Re-connect the negative
battery terminal making sure it
is securely tightened.
The chassis ground connection
is critical to the performance
of the amplier. Choose a
location that is close to the
amplier. Completely scrape
away the paint and use a nut
and bolt if possible.
DO NOT USE AN EXISTING
FACTORY BOLT!
Disconnect
negative battery
terminal
Run Cables
Mount Amplier
Signal Input
Low Level RCA
Positive Battery
Connection
Re-connect
Negative Battery
Terminal
Chassis Ground
Be prepared to disarm your vehicle’s alarm and
to enter your radio / source unit code.
Installation
Before you start
CAUTION
Many new and factory radios require a reset code when
disconnected from battery power. This is an anti-theft
feature. Before unplugging power, you must determine if
your radio/source unit requires a reset code. Check the
operation manual for your vehicle or contact the dealer.
1
2
3
6
10
11
4
Turn the LEVEL control completely
counter-clockwise to minimum.
Level Control
7
4ga
Model Fuse Size Cable Size
PZ2-1530.1D
PZ2-2030.1D
PZ2-3030.1D
PZ2- 4030.1D
PZ2-1030.2D
PZ2-1530.2D
PZ2-2030.2D
PZ2-1530.4D
PZ2-2030.4D
PZ 2-2030. 5D
External 60A
External 80A
External 125A
External 150A
External 40A
External 50A
External 10 0A
External 40A
External 60A
External 10 0A
Using spade terminals, connect the
+12V to the power cable from the
battery, the REM to the source unit
turn-on wire and the GND to the
chassis ground..
Using spade terminals,connect
the speaker cables to the speaker
output connectors. Follow the
diagram below that best ts your
speaker conguration.
Power
Connections
Speaker
Connections
Stereo
Monoblock single woofer multiple woofersMonoblock
Bridged
5
9
SPEAKER
CH2CH1
BRIDGED
OUTPUT
CH2CH1
BRIDGED
PEAKER OUTPUT
S EAKER OUTPUT
SPEAKER OUTPUT
CH1 CH2
POWER
The HI INPUT is for use with source
units that do not offer RCA outputs.
Use the supplied harness to connect
to the source unit’s speaker output.
Signal Input
High Level
8
HI-INPUT
CH1
+- - +
CH2
The information contained within this document is intended to offer some basic guidelines
for a few of the most common installations. More complex audio systems should be
installed by a competent professional. Additional installation information available at
www.maxxsonics.com
6V 0.2V
LEVEL
