HSW-R Installation Instructions

Track rail 72 x 75 mm

1. Ceiling substructure for track rail and installation of the track rail:

The track rail must be bolted over its entire length (including the stacking track area) to a correctly

aligned, longitudinally and transversely horizontal substructure (e.g. DORMA „UK“ substructure system).

The substructure should be designed to accommodate the total weight of all the panels both in the

stacking area and in the partition section.

The fixing point intervals for mounting the track rail to the substructure should be approx. 300 mm

along the straight sections and approx. 100 mm in the stacking area.

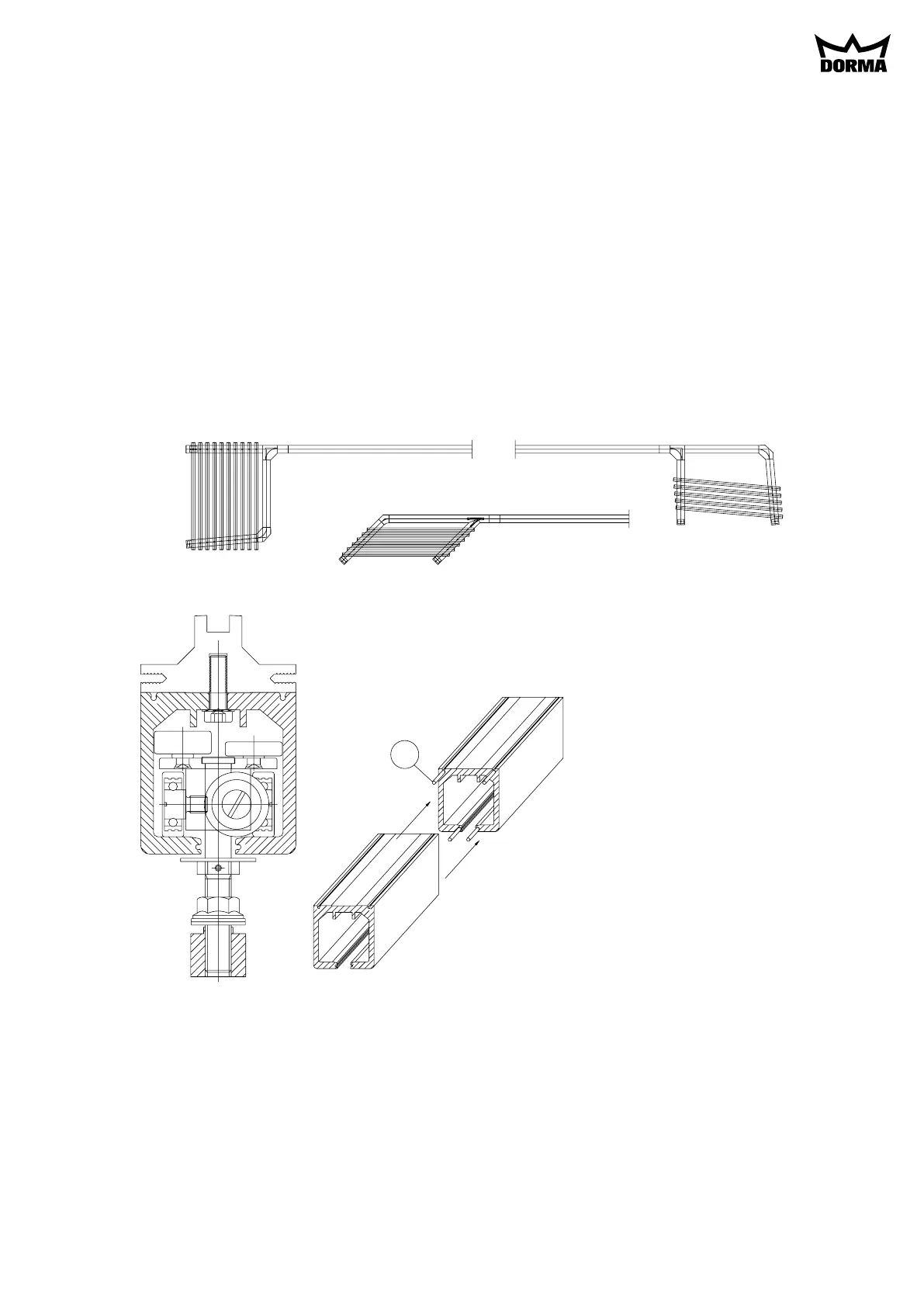

Caution: All the track joints must be provided with connection pins (a) in order to ensure a flush

transition between the track sections and thus smooth sliding panel operation.(Fig. 1)

a

DORMA-Glas 800.52.127.6.32 Stand/Issue 05/04 Seite/Page 1/15

Fig. 1

2. Preparing the floor (Fig. 2):

In the standard version, eccentric sockets are recessed into the floor as lock keeps.

A Drill hole 25 mm dia. 30 mm deep for eccentric sockets, plus 8 mm dia. hole for anchor plug. Align

eccentric socket (double eccentric) and tighten with centre screw.

B Insert eccentric socket in recessed channel section
