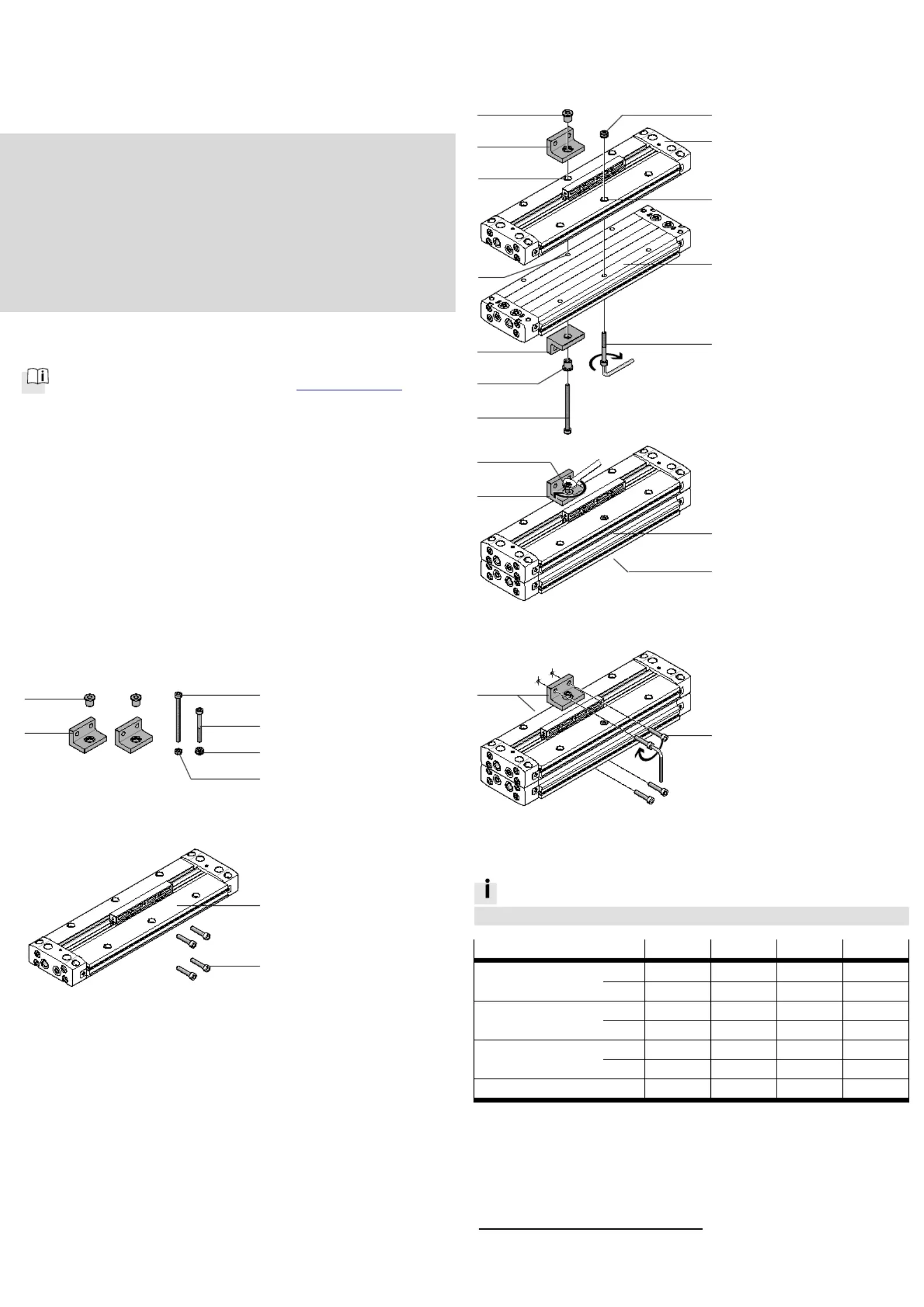

Assembly instructions (Original instructions)

8070340

2017-07

[8070342]

†‡

Profile mounting

DAMH-L8-...-PL-1

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

1.Further applicable documents

All available documents for the product www.f

esto.com/pk

Operating instructions of the linear actuator 7

2.Safety

Switch off power supply and compressed air before mounting work.

Observe further applicable documents.

Comply with tightening torques ( Table).

3.Intended use

Fastening of two linear actuators 7 to a mounting surface.

4.Scope of delivery

18446d_1

1Profile mounting

2Sleeve

3Screw

4Screw

5Knurled nut

6Nut

(2x)

(2x)

(1x)

(1x)

(1x)

(1x)

5.Not in scope of delivery

18446d_2

7Linear actuator

DLGF

8Screw

(2x)

(4x)

6.Mounting

Determine the mounting points ( Further applicable documents).

18446d_3

Position actuators 7

flush with each other.

Place a knurled nut 5

into the drill hole (A) of

a determined fastening

point.

Lightly clamp the

actuators 7 into place

with the screw 4 and

knurled nut 5.

Place the sleeves 2

into the drill holes of the

profile mountings 1.

Push the screw 3 through

the sleeves 2, profile

mountings 1 and drill

holes (B) as shown.

18446d_4

Clamp the profile

mountings 1 to the

actuator 7 using the

hex nut 6.

Align the profile

mounting 1 parallel

to the actuators 7.

Tighten the hex nut 6.

Tighten the screw 4.

Repeat the mounting steps

for all mounting points.

18446d_5

Attach the profile

mountings 1 to the

mounting surface using

2 screws 8.

7.Screw sizes and tightening torques M

A

1)

Information

Select screws 8 suitable for the installation situation.

DAMH-L8-...-PL-120253240

3Screw M4x60 M5x70 M6x90 M6x110

[Nm] 2.25.08.59.0

4Screw M4x35 M5x45 M6x55 M6x70

[Nm] 2.25.08.59.0

6Nut M4M5M6M6

[Nm] 2.25.08.59.0

8Screw M4M5M6M6

1)

Tolerances for tightening torques M

A

without indication of tolerance

M

A

. 3 Nm: ± 10 %

M

A

, 3 Nm: ± 20 %

7

7

7

8

6

4

8

1

2

3

5

7

4

2

3

1

2

1

5

A

B

B

6

1

1

4
