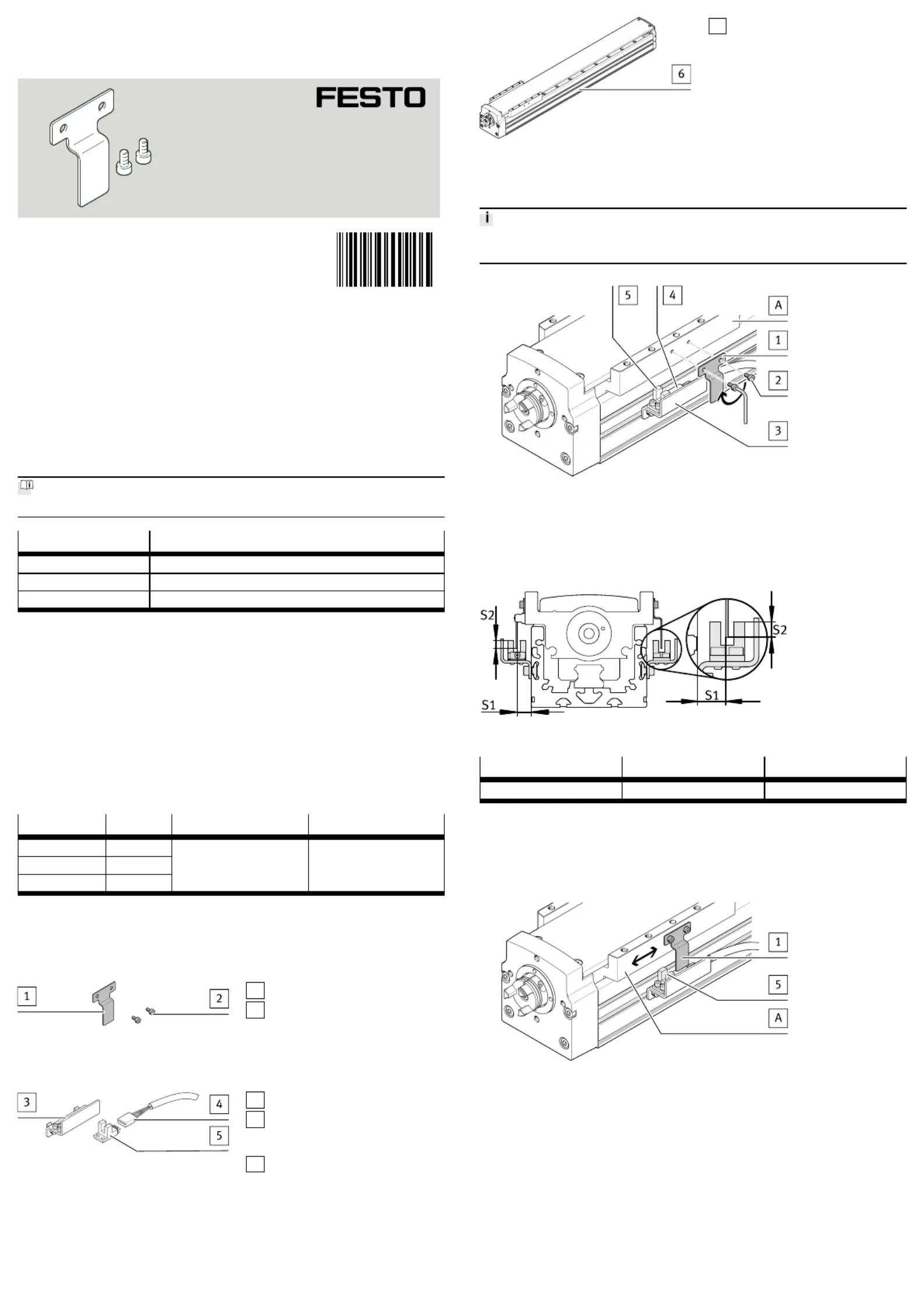

Translation of the original instructions

© 2020 all rights reserved to Festo SE & Co. KG

OMRON

®

is a registered trademark of its respective trademark holder in certain

countries.

1Applicable documents

All available documents for the product www.festo.com/sp.è

DocumentProduct

User documentsActuator

User documentsProximity switches

User documentsSensor bracket

Tab. 1

2Safety

2.1Safety instructions

–Only mount the product on components that are in a condition to be safely

operated.

–Observe tightening torques.

2.2Intended use

2.2.1Use

Triggering the switching function of an optical microsensor from OMRON for query

of the slide position of an actuator.

2.2.2Permissible components

Switch lugActuatorProximity switchesSensor bracket

EAPM-L9-90-SLEELGT-BS-90

EAPM-L9-120-SLEELGT-BS-120

EAPM-L9-160-SLEELGT-BS-160

Optical microsensor

OMRON,Series EE-SX674

EAPM-L9-SHE

Tab. 2

3Product Range Overview

3.1Scope of delivery

1

Switch lug (1x)

2

Screw (2x)

M3x6

Fig. 1

3.2Not in scope of delivery

3

Sensor bracket (1x)

4

Connector (1x)

EE-1001/1001-1, EE-1006,

EE-1009 (OMRON)

5

Sensor (1x)

Series EE-SX674 (OMRON)

Fig. 2

6

Actuator (1x)

ELGT-BS

Fig. 3

4Assembly

The switch lug, sensor bracket and proximity switch can be mounted on the left or

right of the actuator.6

Fig. 4 Mount the switch lug on the actuator

1.Fasten the switch lug with screws to the slide[A]. Tightening torque:12

1.2Nm±10%.

2.Mount sensor bracket Applicable documents.3è

3.Ensure compliance with the sensor distancesS.

Fig. 5 Sensor distances

Sensor distanceS1S2

[mm]11.5±16±0.3

Tab. 3

5Test run

1.Switch on power supply.

2.In case of motors with a brake: release the brake.

Fig. 6 Test run

•Move the slide[A] with the switch lug slowly over the sensor.15

Ä

Sensor switches.5

8140654

EAPM-L9-...-SLE

Switch lug

8140654

2020-08

[8140656]

Assembly instructions

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
