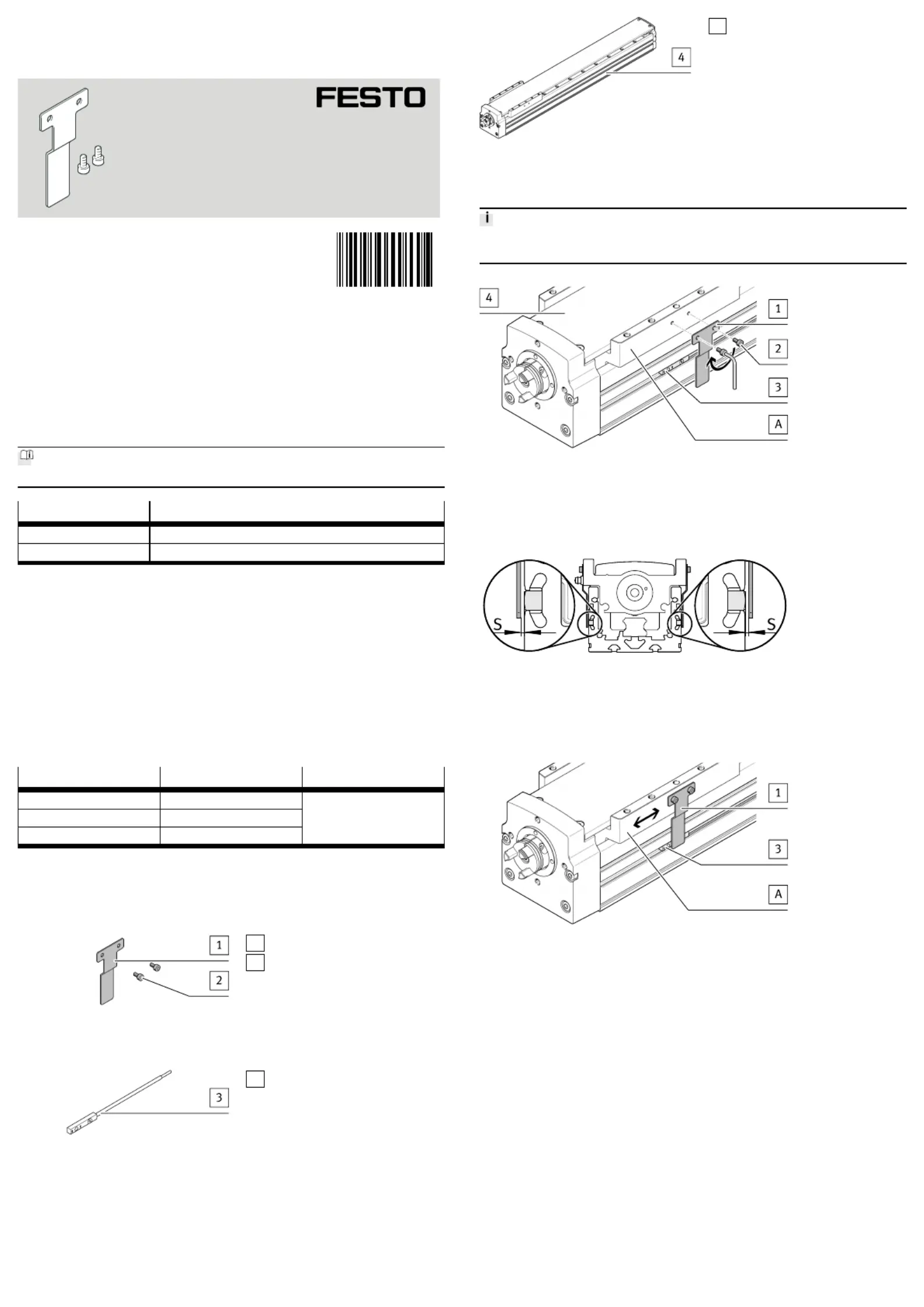

Translation of the original instructions

© 2020 all rights reserved to Festo SE & Co. KG

1Applicable documents

All available documents for the product www.festo.com/sp.è

DocumentProduct

User documentsActuator

User documentsProximity switches

Tab. 1

2Safety

2.1Safety instructions

–Only mount the product on components that are in a condition to be safely

operated.

–Observe tightening torques.

2.2Intended use

2.2.1Use

Triggering the switching function of an inductive proximity sensor for query of the

slide position of an actuator.

2.2.2Permissible components

Switch lugActuatorProximity switches

EAPM-L9-90-SLSELGT-BS-90

EAPM-L9-120-SLSELGT-BS-120

EAPM-L9-160-SLSELGT-BS-160

SIES-8M

Tab. 2

3Product Range Overview

3.1Scope of delivery

1

Switch lug (1x)

2

Screw (2x)

M3x6

Fig. 1

3.2Not in scope of delivery

3

Proximity switches

Fig. 2

4

Actuator (1x)

ELGT-BS

Fig. 3

4Assembly

The switch lug and proximity switch can be mounted on the left or right of the

actuator.4

Fig. 4 Mount the switch lug on the actuator

1.Fasten the switch lug with screws to the slide[A]. Tightening12

torque:1.2Nm±10%

2.Mount proximity switch Applicable documents.3è

3.Ensure compliance with the sensor distanceS=1±0.3mm.

Fig. 5 Sensor distance

5Test run

1.Switch on power supply.

2.In case of motors with a brake: release the brake.

Fig. 6 Test run

•Move slide[A] slowly with the switch lug over the proximity switch.13

Ä

Proximity switch switches.3

8140663

EAPM-L9-...-SLS

Switch lug

8140663

2020-08

[8140665]

Assembly instructions

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
