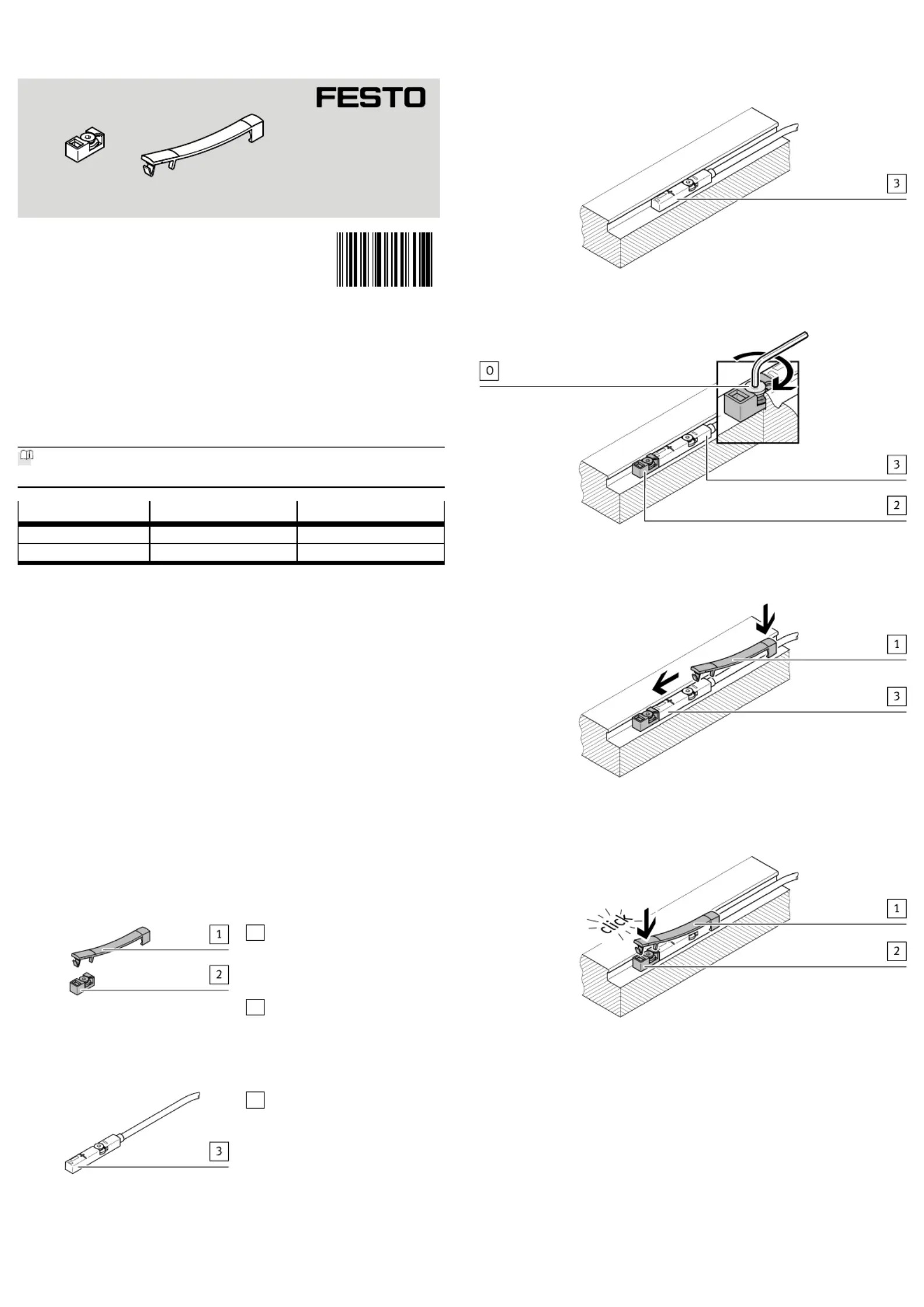

Translation of the original instructions

© 2020 all rights reserved to Festo SE & Co. KG

1Applicable documents

All available documents for the product www.festo.com/sp.è

DocumentProductContents

InstructionsProximity sensorsOperating

InstructionsActuatorOperating

Tab. 1

2Safety

2.1Safety instructions

–Only assemble the product on components that are in a condition to be safely

operated.

2.2Intended use

The mounting kit is used for tamper-proof, captive and positive-locking mounting

of specific proximity sensors.

3Additional information

Accessories and products www.festo.com/catalogueè

–Mounting kit SAMH-S-N8-...-MK

–Covering SAMH-S-N8-...-SC

–Proximity sensor for mounting kit SAMH-S-N8 -...- MK

–Actuator

4Product range overview

4.1Scope of delivery

Mounting kit SAMH-S-N8-...-MK:

1

Covering(1x)

SAMH-S-N8 -...- SC

– can only be dismantled for

destruction

–can be ordered separately

2

Terminal block(1x)

Fig. 1

4.2Not in scope of delivery

3

Proximity sensor(1x)

Fig. 2

5Assembly

–The mounting kit increases the length of the proximity sensor.

–When using the mounting kit, minimum strokes are required for certain actu-

ators 3 Additional information.è

Fig. 3

•Mount the proximity sensor in the sensor slot 1 Applicable documents.3è

Fig. 4

1.Position terminal block flush with the proximity sensor.23

2.

Tighten the screw[A]. Tightening torque: 0.6 Nm£

Fig. 5

1.Place covering on the cable of the proximity sensor.13

2.Push covering over the proximity sensor.13

Fig. 6

•Press the covering into the terminal block.12

Ä

Covering snaps into place.1

8127946

SAMH-S-N8

Mounting kit

8127946

2020-01b

[8127948]

Instructions| Assembly

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
