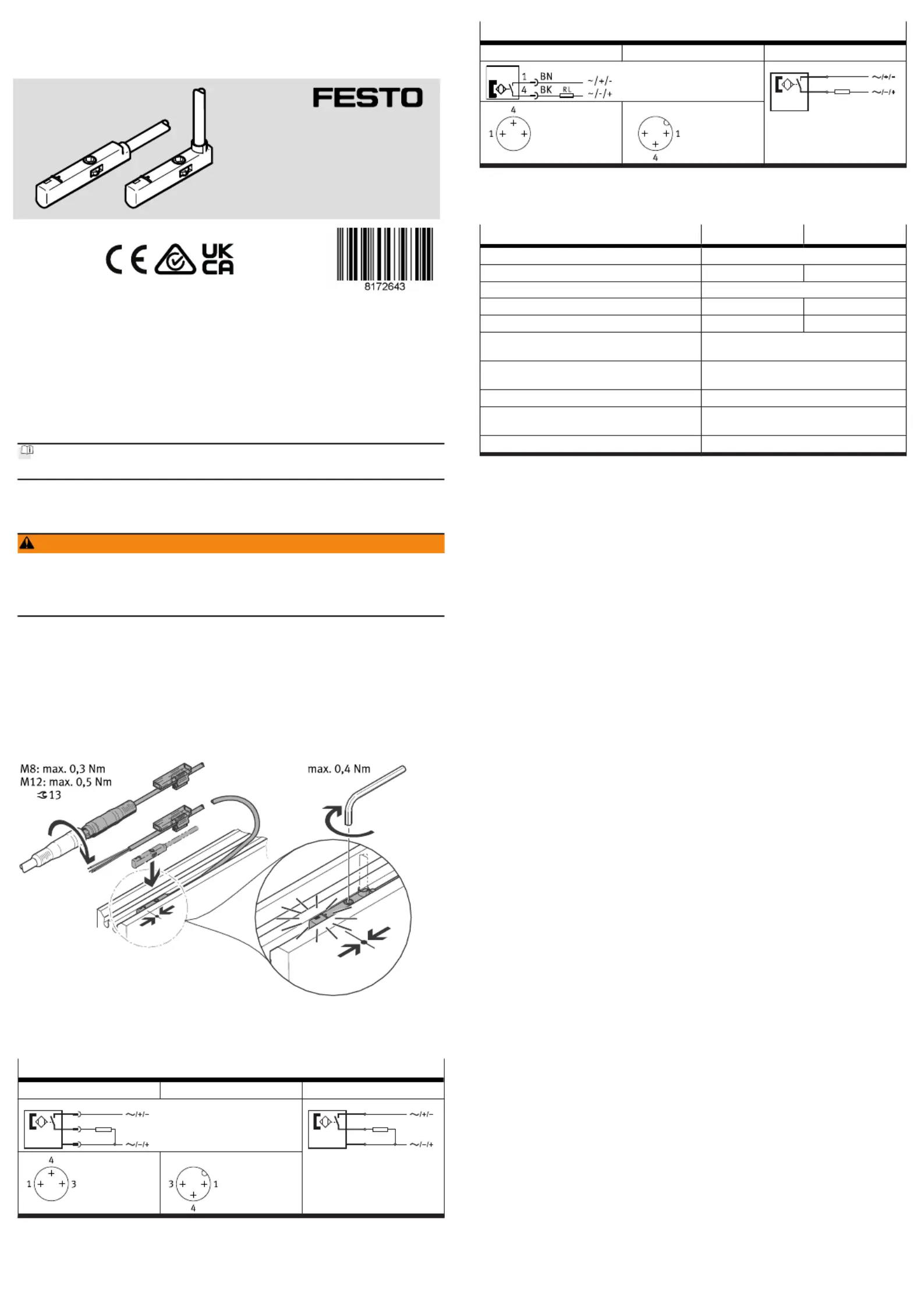

SME-10M

Proximity switch

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Deutschland

+49 711 347-0

www.festo.com

Operating instructions

8172643

2022-05d

[8172645]

Translation of the original instructions

© 2022 all rights reserved to Festo SE & Co. KG

1

Applicable Documents

All available documents for the product

è

www.festo.com/sp.

2Safety

2.1Safety instructions

WARNING

Risk of injury due to electric shock.

•For the electric power supply, use only PELV circuits that ensure a reliable

electric disconnection from the mains network.

•

Observe IEC 60204-1/EN 60204-1.

–Before working on the product: Switch off the power supply, ensure that it is off

and secure it against being switched on again.

2.2Intended use

The proximity switch is intended for use in Festo products for sensing the position

of magnets, e.g. the position of the piston.

The product is intended for use in industrial environments.

3Mounting

Fig. 1:

Mounting

4

Electrical installation

SME-10M-DS-24V-...

-M8/-M8D-M12-OE

BN

BK

BU

RL

1

4

3

BN

BK

BU

RL

Tab. 1:

Electrical connection SME-10M-DS-24V-...

SME-10M-ZS-24V-...

-M8/-M8D-M12-OE

BN

BU

RL

Tab. 2:

Electrical connection SME-10M-ZS-24V-...

5

Technical data

SME-10M-DS-ZS

Operating voltage range[V AC/DC]5 … 30

Max. output current[mA]300100

Max. output current at mounting kit[mA]50

Max. switching capacity AC[VA]93

Max. switching capacity DC[W]93

Max. switching capacity in mounting

kit AC

[VA]1.5

Max. switching capacity in mounting

kit DC

[W]1.5

Ambient temperature[°C]–40 … +70

Ambient temperature with flexible

cable installation

[°C]–20 … +70

Degree of protectionIP65, IP68

Tab. 3:Technical data
