Translation of the original instructions
1 Further applicable documents
All available documents for the product www.festo.com/pk.è
2 Safety
2.1 General safety instructions
Take into consideration the ambient conditions at the location of use.
Only use the product in original status without unauthorised modifications.
Observe labelling on the product.
Observe further applicable documents.
Store the product in a cool, dry, UV-protected and corrosion-protected envir-
onment. Ensure that storage times are kept to a minimum.
2.2 Intended use
The control element VAOH is intended for operation in the balancer kit YHBP.
2.3 Training of skilled personnel
Installation, commissioning, maintenance and disassembly should only be con-
ducted by qualified personnel.
The skilled personnel must be familiar with the installation of pneumatic control
systems.
3 Additional information
Accessories www.festo.com/catalogue.è
Spare parts www.festo.com/spareparts.è
4 Service
Contact your regional Festo contact person if you have technical questions
èwww.festo.com.
5 Product overview
5.1 Function
By extending and retracting the handle on the control element, an
overpressure/partial vacuum is generated at pneumatic connection of the cyl-2
inder. Using a connected pressure regulator, it is possible to specify the speed of
cylinder movement at the balancer kit by means of the size of the pressure value.
The home position (mid-position) on the control element takes place by spring
return.

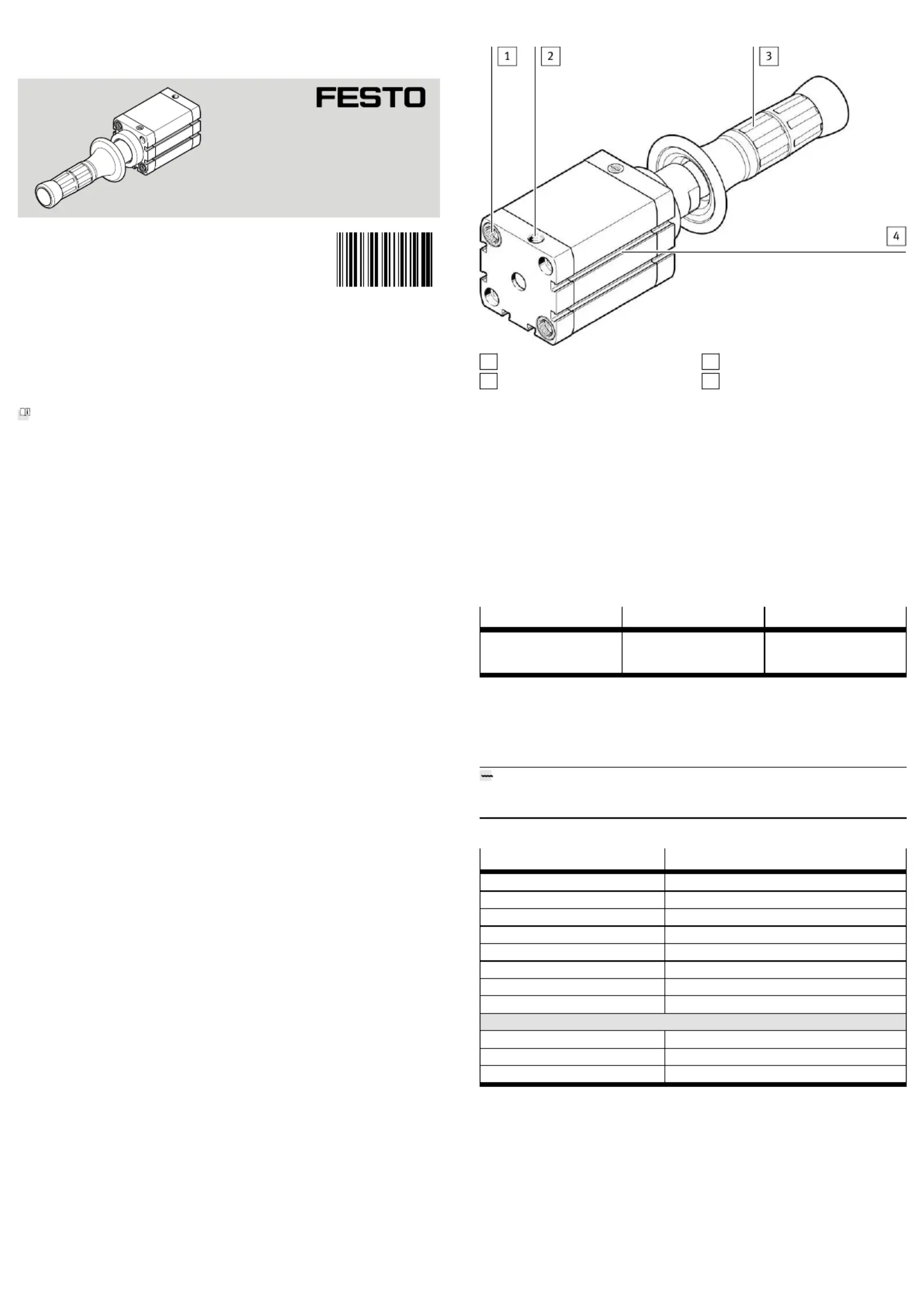

5.2 Design
1Mounting thread M8 (at both ends)
2Pneumatic connection
3Handle
4Slot for proximity sensor
Fig. 1
6 Assembly
Mount control element at the intended position. The permissible tightening
torque is max. 10Nm.
The control element can be installed with the handle at the top or at the bot-
tom. For intuitive operation, the control element should always be aligned in
the movement direction of the balancer kit.
7 Pneumatic installation
Connect tubing between connection and the corresponding connection on2
the pressure regulator of the balancer kit.
8 Malfunctions
8.1 Troubleshooting
Fault description Cause Remedy
Pressure at connection with2
handle in mid-position.
Leakage between air connec-
tion of control element and con-
nection of pressure regulator.
Check fittings and tubing are
tight.
Tab. 1
8.2 Repair
Send the product to the Festo repair service for repair.
9 Disposal
ENVIRONMENT!
Send the packaging and product for environmentally sound recycling in accord-
ance with the current regulations www.festo.com/sp.è
10 Technical data
Type code VAOH-P15-H13
Mounting position Any
Mounting thread M8 (max. screw-in depth: 27mm)1
Max. lateral force [N] 100
Position sensing For proximity sensor
Operating pressure [bar] £1
Pneumatic connection G1/82
Ambient temperature [°C] –10…+80
Product weight [g] 1350
Materials
Cylinder Anodised aluminium
Handle PA6
Note on materials Contains materials that include LABS
1)
1) LABS = paint-wetting impairment substances
Tab. 2
8081648
Operator control element
VAOH-P15-H13
8081648
2018-02
[8081650]
Instructions| Operating
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
