Oldal 1/12
iP41 IB (without remote control)
size: 178 x 178
color: Black
Mar. 27, 2009

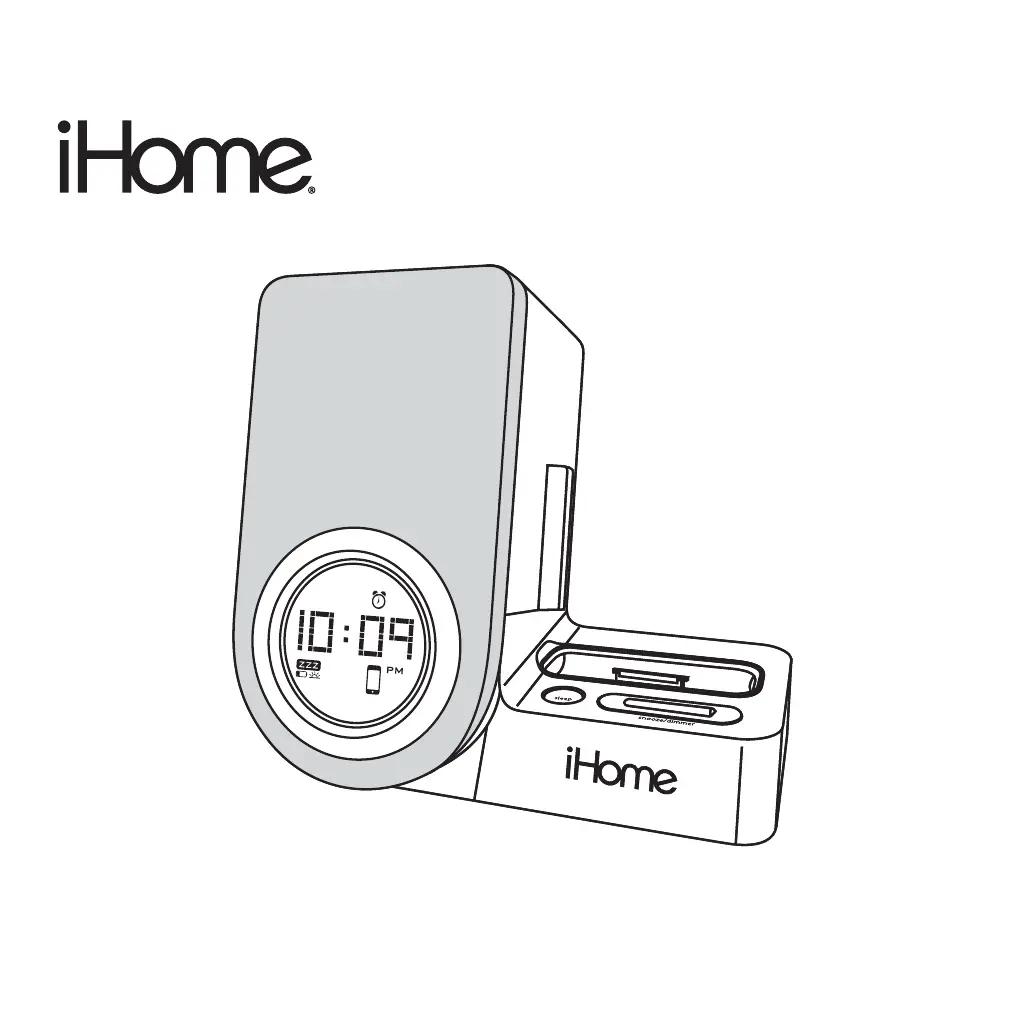

Model iP41
Alarm Clock
for iPhone / iPod
Questions? Visit www.ihomeaudio.com
iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free
from defects in workmanship and materials, under normal use and conditions, for a period of one year from the date of original
purchase.
Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally
purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the
warranty period, SDI Technologies will repair or, at its discretion, replace this product without charge (except for a $10.00
charge for handling, packing, return UPS/postage, and insurance). This decision is subject to verification of the defect or
malfunction upon delivery of this product to the Factory Service Center listed below. The product must include proof of
purchase, including date of purchase. The fee for service without proof of purchase is $25.00.
Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective
batteries are the most common cause of problems encountered.
If service is still required:
1.
Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.
2.
Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty
period.
3.
Enclose a check or money order payable to the order of SDI Technologies, for the sum of $10.00 ($25.00 without proof of
purchase).
4.
Send the unit prepaid and insured, to the Factory Service Center listed below.
Consumer Repair Department
SDI Technologies Inc.
1330 Goodyear Drive
El Paso, TX 79936-6420
Disclaimer of Warranty
NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products
which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by
unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players,
CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the
owner.
This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original
purchaser. In no event will SDI Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders,
members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual,
exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential
damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Your acknowledgment and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually
binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI Technologies
product.
© 2009 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihomeaudio.com
For any other questions: 1-800-288-2792 Toll Free
iP41-040309-0 Printed in China
Limited 1 Year Warranty Information
Table of Contents
Quick Start....................................................................................................................................................................... 1
Controls and Indicators / iP41 Display
....................................................................................................................... 2
Getting Started................................................................................................................................................................. 3
Using the iP41
.............................................................................................................................................................. 4-6
Using the Optional Remote Control .......................................................................................................................... 7
Install/Replace the Remote Control Battery.................................................................................................................. 7
A Consumer Guide to Product Safety .......................................................................................................................... 8
Troubleshooting ........................................................................................................................................................... 9
Maintenance
• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should
be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzine, thinner
or similar materials can damage the surface of the unit.
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits
provide reasonable protection against radio and TV interference in a residential area.
However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate
interference you can try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
• Consult your dealer or an experienced radio/television technician if the problem still exists.
Modifying or tampering with your system’s internal components can cause a malfunction and might invalidate the
system’s warranty and void your FCC authorization to operate it.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC Information
9
Troubleshooting
Symptom
Unit no respond
(no power)
iPhone/iPod does
not dock properly
iPhone/iPod does
not respond to the
unit
iPhone/iPod didn’t
charge up
Sound is distorted
Remote Control
didn’t work
Possible Problem
AC adaptor isn’t plugged to a wall
outlet or the connector is not plugged
into the power supply jack o the back
of the unit
Wall outlet is not functioning
Using wrong insert/ no insert
dock or iPhone/iPod has obstruction
iPhone/iPod is not docked properly
Your iPhone/iPod software is too old
iPhone/iPod is locked up
iPhone/iPod is not docked properly
Using 3
rd
generation iPod
iPhone/iPod is locked up/frozen
iPhone/iPod battery has problem
Volume level is set too high
Sound source is distorted
Remote control battery is weak/dead
Remote Control is too far way from
main unit
Solution
Plug the AC adaptor into a wall outlet and plug the connector into
the supply jack on the unit
Plug another device into a wall outlet (same outlet) to confirm the
outlet is working
Make sure the dock insert is the proper fit to your iPhone/iPod
Remove your iPhone/iPod from the dock and check for obstruction
on the connectors in the dock and on your iPhone/iPod. Then
reseat it in the dock.
Remove your iPhone/iPod from the dock and check for obstruction
on the connectors in the dock and on your iPhone/iPod. Then
reseat it in the dock.
Upgrade software on your iPhone/iPod via iTunes.
Please make sure your iPhone/iPod is working properly before
docking with the unit. Please refer to your iPod manual for details.
Remove your iPhone/iPod from the dock and check for obstruction
on the connectors in the dock and on your iPod. Then reseat it in
the dock.
iP41 doesn’t support 3
rd
generation iPod
Please make sure your iPhone/iPod is working properly before
docking with the unit. Please refer to your iPod manual or
apple.com/support for details.
Decrease the volume. Turn off EXB bass effect
If iPod original sound source is poor quality, distortion and noise are
easily noticed with high-power speakers.
Try a difference audio source such as a music CD.
If you are using an iPod Shuffle or external sound source like older
generation iPod, try reducing the output volume on the device itself.
Also, try turning bass boost OFF.
Replace remote battery with new CR2032 battery
Use the Remote Control closer to main unit
8
A Consumer Guide to Product Safety
When used in the directed manner, this unit has been designed and manufactured to assure your personal safety.
However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating
instructions carefully before installation and use. Keep these instructions handy for future reference. Take special
note, and adhere to all warnings on the unit and in the instruction and service manual.
1. Water and Moisture - The unit should not be used near water. For example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool, etc.
2. Ventilation - The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or placed in a built-in installation, such as bookcase or cabinet that may impede the flow of
air through the ventilation openings.
3. Heat - The unit should be situated away from heat source such as radiators, heat register, stoves, or other
appliances (including amplifiers) that produce heat.
4. Power Sources - The unit should be connected to a power supply only of the type described in the operating
instructions or as marked on the appliance.
5. Power Cord Protection - Power supply cord should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. It is always best to have a clear area from where the cord exits
the unit to where it is plugged into an AC outlet.
6. Cleaning - The unit should be cleaned only as recommended by the manufacturer.
7. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the
enclosure through openings.
8. Attachments - Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection - Unplug the unit from the wall outlet and disconnect the antenna or
cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will
prevent damage to the product due to lightning and power-line surges.
10. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
11. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
A. The power-supply cord or plug has been damaged.
B. Objects have fallen into or liquid has been spilled into the enclosure.
C. The unit has been exposed to rain.
D. The unit has been dropped or the enclosure damaged.
E. The unit exhibits a marked change in performance or does not operate normally.
12. Periods of Nonuse - If the unit is to be left unused for an extended period of time, such as a month or longer,
the power cord should be unplugged and take out batteries from the unit to prevent damage or corrosion.
13. Servicing - The user should not attempt to service the unit beyond that described in the user’s operating
instructions. All other servicing should be referred to qualified service personnel.
1
iP41 Quick start
Attach AC adaptor cable to jack on
back of the iP41 and plug the other
end into a wall socket to play and
charge iPhone/iPod
1: AC power
For this iPhone/iPod
Use this insert
Select the dock insert for your
iPhone/iPod model from the table
below and place insert in dock.
Never dock an iPhone/iPod
without the proper insert in
place. Insert the short cradle for
your iPhone or iPod touch or tall
cradle for nano 4G into the slot
next to the dock
2: inserts & cradles
NOTE: If you do not have an insert
for your iPhone/iPod, please visit
www.ihomeaudio.com or call
iHome toll free at 800-288-2792 to
purchase one.
RESET
RESET
TEST
TEST
Insert iPhone/iPod into dock
(iPhone/iPod must not be in a “skin”
or case). iPhone/iPod will charge
while docked. Press the Play Button
on the iP41 to play your
iPhone/iPod.
3: iPhone/iPod
Gently pivot unit to the left until it lies flat. The clock display will
adjust to the new orientation. Select your video and press the
Play Button on the iP41 to play your video.
4: watching horizontal screen video
iPod nano 4G
insert 17
iPod nano 4G iPod Touch 2G
iPod touch 2G
insert 16
iPhone 3G
Insert 15
iPhone 3G
OR
OR
April 03, 2009
Termékspecifikációk
| Márka: | IHome |
| Kategória: | Óra rádió |
| Modell: | iP41 |
Szüksége van segítségre?
Ha segítségre van szüksége IHome iP41, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek
Útmutatók Óra rádió IHome
22 Szeptember 2024
27 Augusztus 2024
27 Augusztus 2024
27 Augusztus 2024
27 Augusztus 2024
27 Augusztus 2024
27 Augusztus 2024
27 Augusztus 2024
27 Augusztus 2024
27 Augusztus 2024
Útmutatók Óra rádió
- Óra rádió JGC
- Óra rádió Audiosonic
- Óra rádió Exibel
- Óra rádió Lenco
- Óra rádió Alcatel
- Óra rádió Sogo
- Óra rádió GoGen
- Óra rádió Dexford
- Óra rádió Bang & Olufsen
- Óra rádió Yuconn
- Óra rádió Schaub Lorenz
- Óra rádió Elta
- Óra rádió Livoo
- Óra rádió Audiovox
- Óra rádió Konig Electronic
Legújabb útmutatók Óra rádió
7 Április 2025
4 Április 2025
16 Január 2025
16 Január 2025
15 Január 2025
15 Január 2025
15 Január 2025
15 Január 2025
15 Január 2025
15 Január 2025
