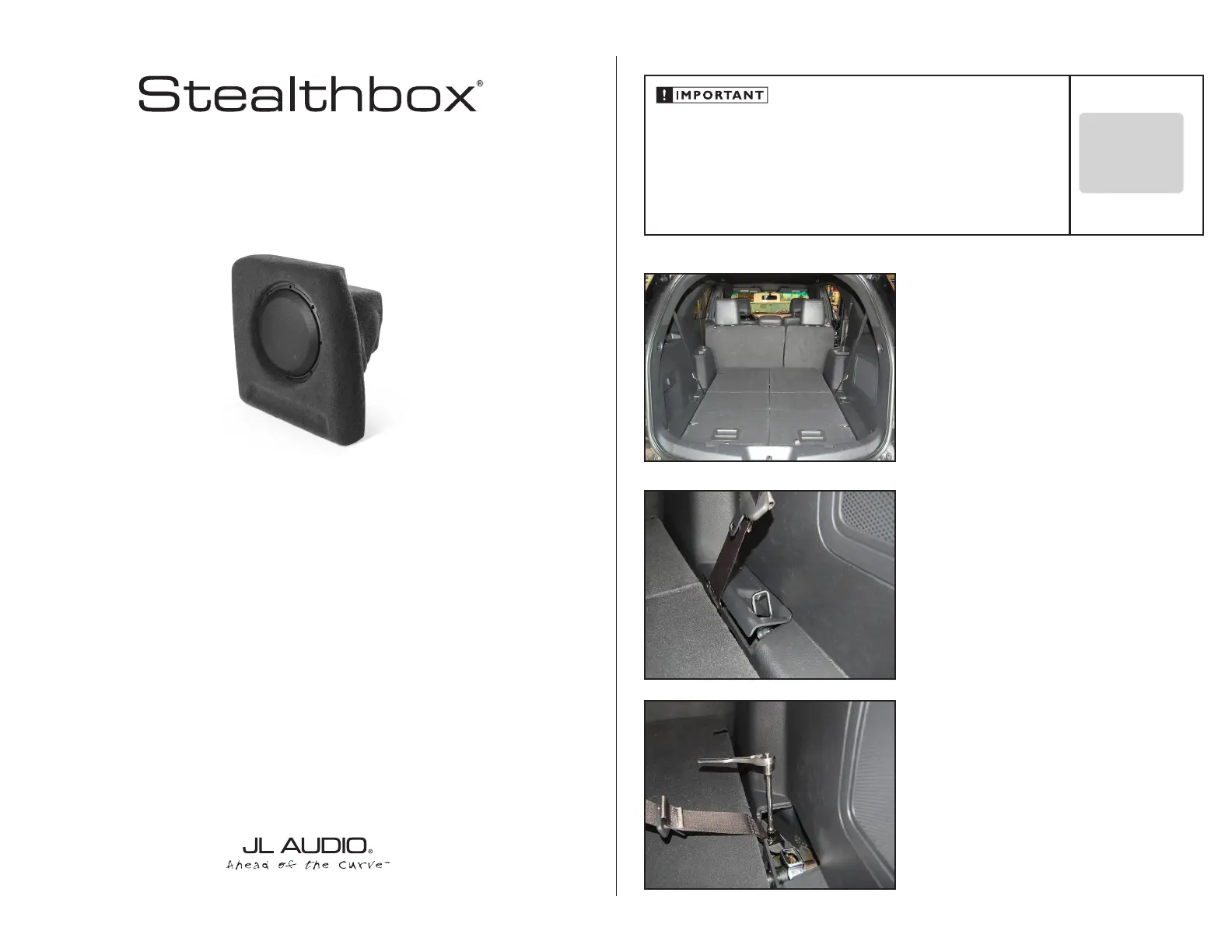

I N S T A L L A T I O N G U I D E
for the
SB-F-EXPL3/10W3v3
SKU# 94520
2011-Up Ford Explorer
Thank you for choosing a JL Audio Stealthbox ® for your automotive sound system. With proper installation, your new
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Empty out the cargo area so that you have a clean area to
work in.
Continued on Next Page
S T E P 2
With the third row seats folded down, unclip the small trim
panel near the seat belt.
S T E P 3
Remove the bolt holding the seat belt in place.
SB-F-EXPL3/10W3v3 INSTR_SKU# 011325
INSTALLATION
D I F F I C U L T Y :
35
OUT
OF
ESTIMATED TIME:
2 HOUR
Continued on Next Page
SB-F-EXPL3/10W3v3 INSTR_SKU# 011325
S T E P 7
Begin unclippng the side panel, as shown.
S T E P 6
Open the rear door on the passenger side. Carefully pull up
on the sill panel to release the clips, and remove the panel.
Remove the clip holding the side panel to the floor.
S T E P 5
Unscrew the two hooks on the side panel.
S T E P 4
Fold the seats back up, as shown. Carefully pull up on the
rear sill panel to release the clips. Unplug the harness, and
remove the panel.
Page 2 • JL Audio, Inc 2016
S T E P 9
Pictured is the factory subwoofer enclosure with the side
panel removed. Unplug the subwoofer harness. Locate and
remove the three bolts holding in the enclosure, and remove
the enclosure from the vehicle.
S T E P 1 1
Enlarge the grille opening on the side panel by cutting on
the indicated dotted lines. The top and bottom portions of
the grille opening need to be removed, but the sides will
remain.
S T E P 1 0
Carefully grind through the plastic welds on the back of the
side panel to remove the grille from the panel.
S T E P 8
Continue toward the rear of the vehicle, carefully releasing
the remaining side panel clips, and remove the panel.
Continued on Next Page
SB-F-EXPL3/10W3v3 INSTR_SKU# 011325
S T E P 1 5
Thread the supplied 3/8 - 16 x 2-1/4” Set Screw into the
U-Nut, as shown.
S T E P 1 4
Remove the Stealthbox® from the vehicle. Measure 1-1/8” up
from the center of the hole drilled in , and drill a 1” Step 13
hole. Slide the U-Nut through the 1” hole and align with the
smaller hole, as shown.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a
reduction in your weekly pay.
Always wear eye protection when drilling!
S T E P 1 3
Remove the subwoofer from the Stealthbox®, and place the
enclosure into position. Locate the hole in the back of the
enclosure. Using a 1/2” drill bit, drill through the hole and
into the metal panel behind the enclosure.
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a
reduction in your weekly pay.
Always wear eye protection when drilling!
S T E P 1 2
Route speaker cable to the Stealthbox® location, and reinstall
the side panel back into the vehicle. Pictured is the panel in
place after it has been cut as indicated in Step 11.
Page 3 • JL Audio, Inc 2016
S T E P 1 7
Reinstall the upper hook, the two sill panels, the seat belt
bolt, and the small trim panel.
C O N G R A T U L A T I O N S !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 6
Attach the speaker cable to the Stealthbox®, and place the
enclosure back into position allowing the 3/8 - 16 x 2-1/4” Set
Screw to slide through the hole in the back of the enclosure.
Place a 3/8” x 1-1/4” Fender Washer, a 3/8” Lock Washer, and
a 3/8” - 16 Hex Nut over the 3/8 - 16 x 2-1/4” Set Screw, and
firmly tighten. Reinstall the subwoofer.
