WP-HDBASETX

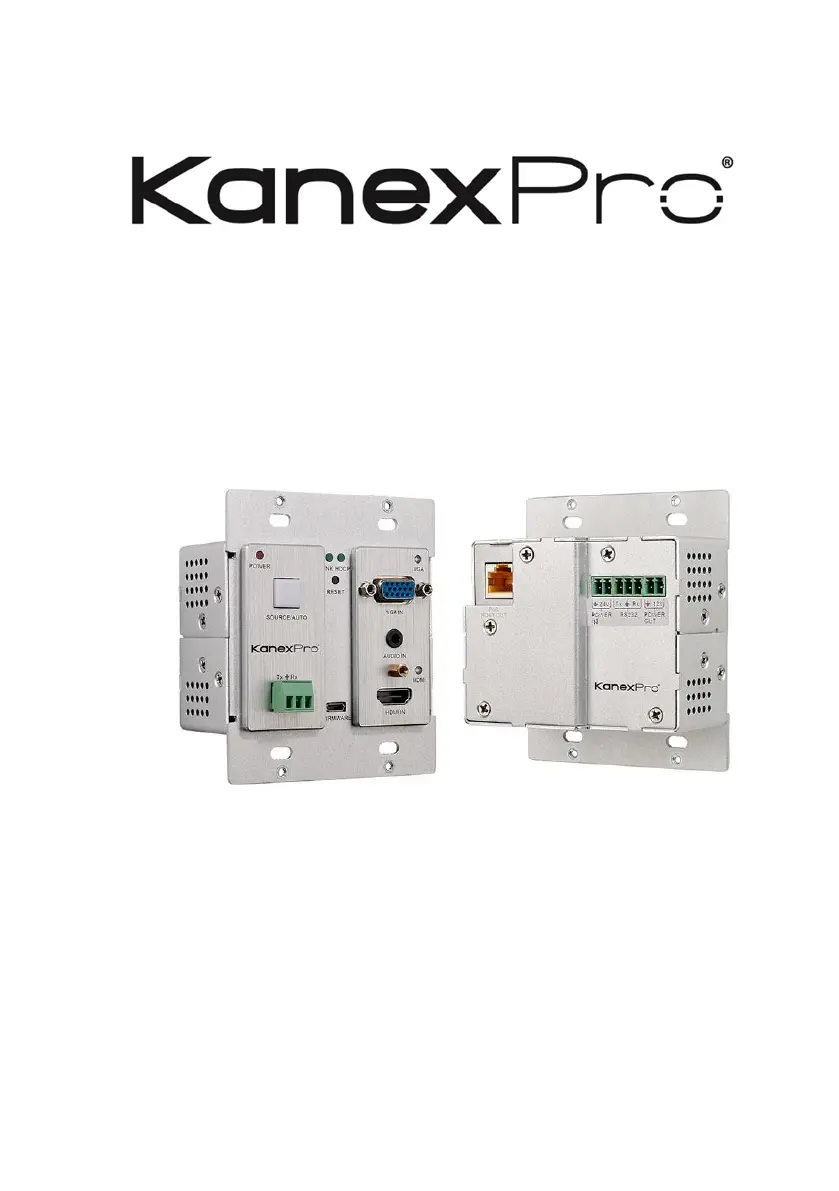

4K HDMI & VGA Wall Plate Transmitter Over HDBase T

Version: -HDBASETX_ 6 .2WP 201 V1

KANEXPRO WP-HDBASETX

2 | Page

Preface

Read this user manual carefully before using this product. Pictures displayed in this

manual are for reference only. Different models and specifications are subject to the

actual product.

This manual is only for operation instruction, not for any maintenance usage. The al

functions described in this version are updated till Dec 2017. Any changes of functions

and parameters since then will be informed separately. Please refer to the dealers for

the latest details.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this

manual are acknowledged as the properties of the trademark owner. No part of this

publication may be copied or reproduced without the prior written consent.

FCC Statement

This equipment can generate, use, and radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. It has been tested and found to comply with the limits of a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a commercial

installation.

Operation of this equipment in a residential area is likely to cause interference, in which

case the user at their own expense will be required to take whatever measures may be

necessary to correct the interference

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

KANEXPRO WP-HDBASETX

SAFETY PRECAUTIONS

To ensure the best from the product, please read all instructions carefully before using

the device. Save this manual for further reference.

 Unpack the equipment carefully and save the original box and packing material for

potential future shipment.

 Follow basic safety precautions to reduce the risk of fire, electrical shock and injury

to persons.

 Do not dismantle the housing or modify the module. It may result in electrical shock

or burn.

 Using supplies or parts not meeting the products’ specifications may cause

damage, deterioration or malfunction.

 Refer all servicing to qualified service personnel.

 To prevent fire or shock hazard, do not expose the unit to rain or moisture. Do not

install this product near water.

 Do not place any heavy items on the extension cable in case of extrusion.

 Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

 Install the device in a place with fine ventilation to avoid damage caused by

overheating.

 Keep the module away from liquids.

 Spillage into the housing may result in fire, electrical shock, or equipment damage.

If an object or liquid falls or spills on to the housing, unplug the module immediately.

 Do not twist/pull by force the ends of the optical cable. It can cause malfunction.

 Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power

cord to the device before cleaning.

 Unplug the power cord when left unused for an extended period.

 Information on disposal for scrapped devices: Do not burn or mix with general

household waste; please treat the devices as normal electrical waste.

Termékspecifikációk

Márka:	KanexPro
Kategória:	AV kiterjesztő
Modell:	WP-HDBASETX
Típus:	AV jeltovábbító
Jel-zaj aránya (SNR):	70 dB
3D:	Igen
Üzemi hőmérséklettartomány (T-T):	-20 - 60 °C
Relatív üzemi páratartalom-tartomány:	10 - 90 %
Maximális felbontás:	1920 x 1200 pixelek
Támogatott kábeltípusok:	Cat5e, Cat6
Maximális átviteli távolság:	60 M
Sávszélesség:	10.2 Gbit/s
Támogatott grafikus felbontások:	800 x 600 (SVGA), 1920 x 1200 (WUXGA)
Adó mérete (sz x mé x ma):	104.5 x 44 x 89 mm
Adókészülék típusa:	800 g
Max. energiafogyasztás (adó):	9.6 W
HDBaseT csatlakozó:	Igen
Üzemi feszültség (adó):	24 V
